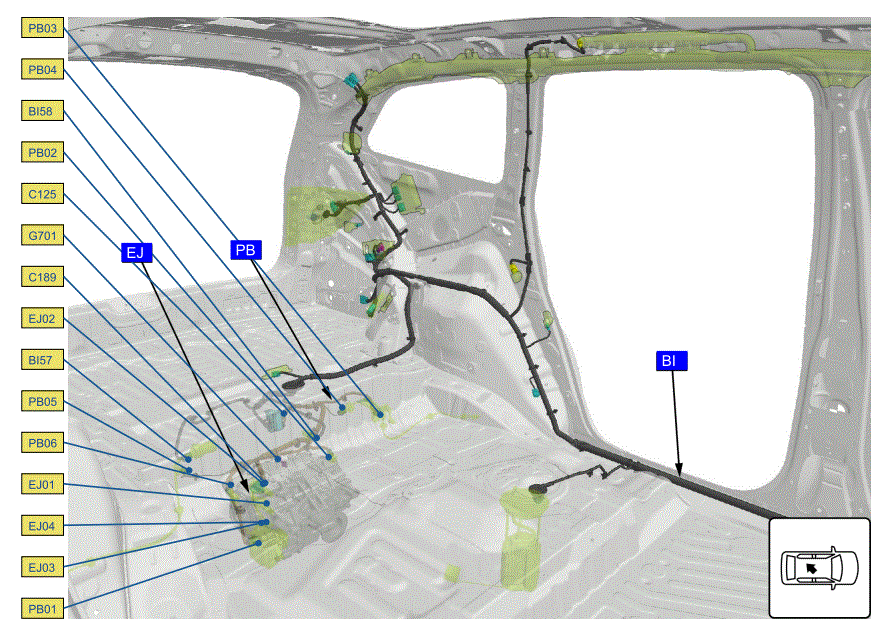

C125 Connector Location
BI: Floor Wire Harness
| Ref. No. | Connector Name | Male/Female | Connector Type | Notes |
| BI01 | i-VTM Control Unit 24P Connector | Female | Component Connector | |
| BI10 | Fuel Fill Door Opener Solenoid 2P Connector | Female | Component Connector | |
| BI11 | Fuel Tank Unit 4P Connector | Female | Component Connector | |
| BI13 | Rear Interior LF Antenna 2P Connector | Female | Component Connector | |
| BI14 | Left-Rear LF Antenna/Initiator 2P Connector | Female | Component Connector | |
| BI17 | Left Side Curtain Airbag Inflator 2P Connector | Female | Component Connector | |
| BI18 | Left Side Impact Sensor (Second) 2P Connector | Female | Component Connector | |
| BI21 | Left Satellite Speaker 2P Connector | Female | Component Connector | |
| BI25 | Power Tailgate Control Unit Connector C (5P) | Female | Component Connector | |
| BI26 | Power Tailgate Control Unit Connector A (24P) | Female | Component Connector | |
| BI27 | Power Tailgate Control Unit Connector B (10P) | Female | Component Connector | |
| BI29 | Left Rear Relay Holder B | Component Connector | ||
| BI30 | Left Rear Relay Holder A | Component Connector | ||
| BI33 | Cargo Area Accessory Power Socket 2P Connector | Female | Component Connector | |
| BI37 | Left Rear Door Switch 1P Connector | Female | Component Connector | |
| BI38 | Left Taillight 3P Connector | Female | Component Connector | |
| BI39 | Left Rear Turn Signal Light 2P Connnector | Female | Component Connector | |
| BI57 | FTP Sensor 3P Connector | Female | Component Connector | |
| BI58 | EVAP Canister Vent Shut Valve 2P Connector | Female | Component Connector | |
| BI55 | Optional Connector A | Female | YOP Connector (Optional Connector) | |
| C114 | C114 | In-line Connector | ||
| C125 | C125 | In-line Connector | ||
| C146 | C146 | In-line Connector | ||
| C149 | C149 | In-line Connector | ||
| C019 | C019 | Junction Connector | ||
| C020 | C020 | Junction Connector | ||
| G602 | G602 | Ground |
EJ: Rear Differential Subharness
| Ref. No. | Connector Name | Male/Female | Connector Type | Notes |
| EJ01 | Left Rear Differential Solenoid Valve 2P Connector | Female | Component Connector | |
| EJ02 | Right Rear Differential Solenoid Valve 2P Connector | Female | Component Connector | |
| EJ03 | Rear Differential Fluid Temperature Sensor 2P Connector | Male | Component Connector | |
| EJ04 | Rear Differential Fluid Temperature Sensor 2 2P Connector | Male | Component Connector | |
| C189 | C189 | In-line Connector |
PB: Rear Subframe Subharness
| Ref. No. | Connector Name | Male/Female | Connector Type | Notes |
| PB01 | Rear Differential Pump Motor 6P Connector | Female | Component Connector | |
| PB02 | Left Rear Differential Fluid Pressure Sensor 3P Connector | Female | Component Connector | |
| PB03 | Rear Suspension Stroke Sensor 3P Connector | Female | Component Connector | |
| PB04 | Left-Rear Wheel Speed Sensor 2P Connector | Female | Component Connector | |
| PB05 | Right-Rear Wheel Speed Sensor 2P Connector | Female | Component Connector | |
| PB06 | Right Rear Differential Fluid Pressure Sensor 3P Connector | Female | Component Connector | |
| C125 | C125 | In-line Connector | ||
| C189 | C189 | In-line Connector | ||
| G701 | G701 | Ground |
