Rocker Arm Assembly: Removal: Rear

  1. Rear Cylinder Head Cover - Remove - Refer to:

    Cylinder Head Cover Removal and Installation (9-Speed A/T) (2019 2020 2021)

    Cylinder Head Cover Removal and Installation

  2. Rear Rocker Arm Assembly - Remove

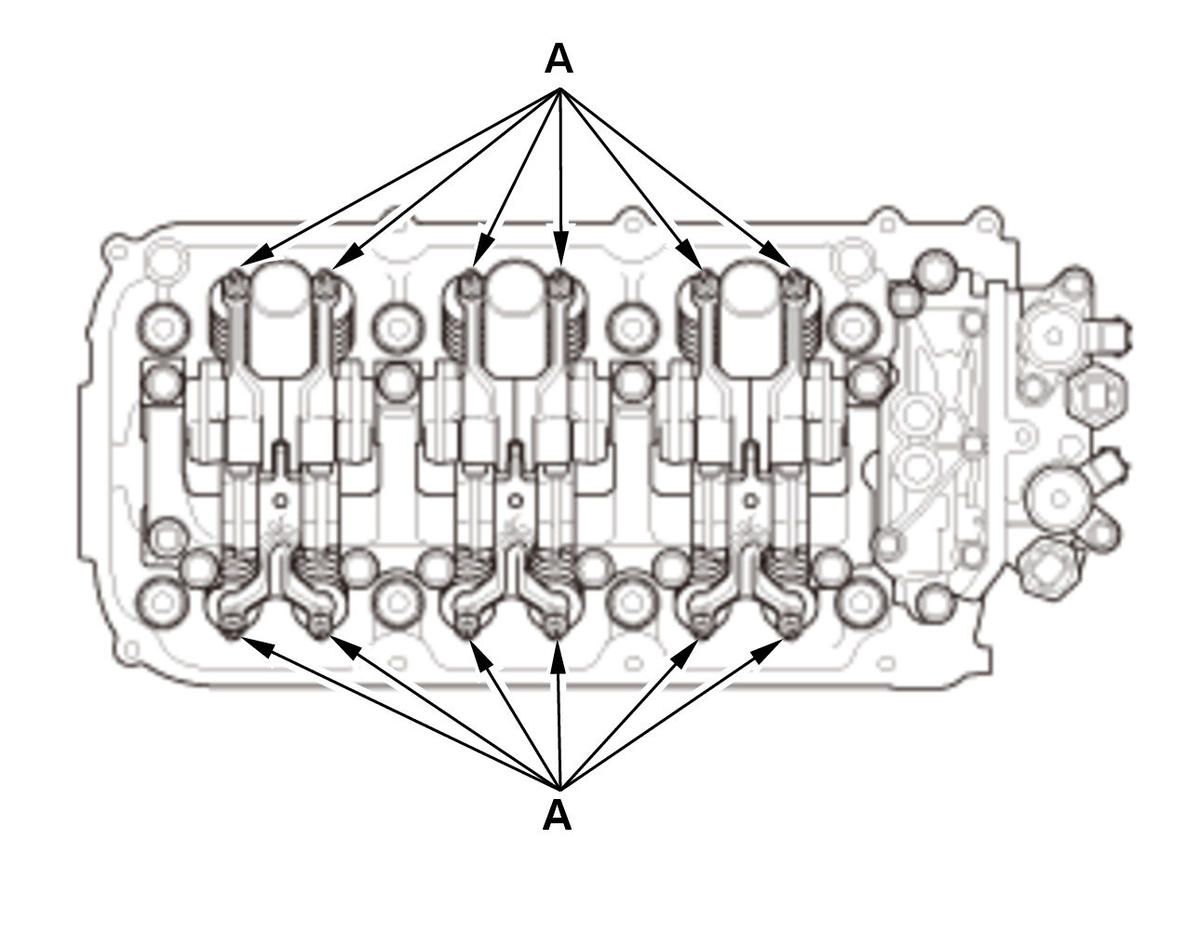

    GHH308643Courtesy of HONDA, U.S.A., INC.
    		 1. Loosen the locknuts and the adjusting screws (A).

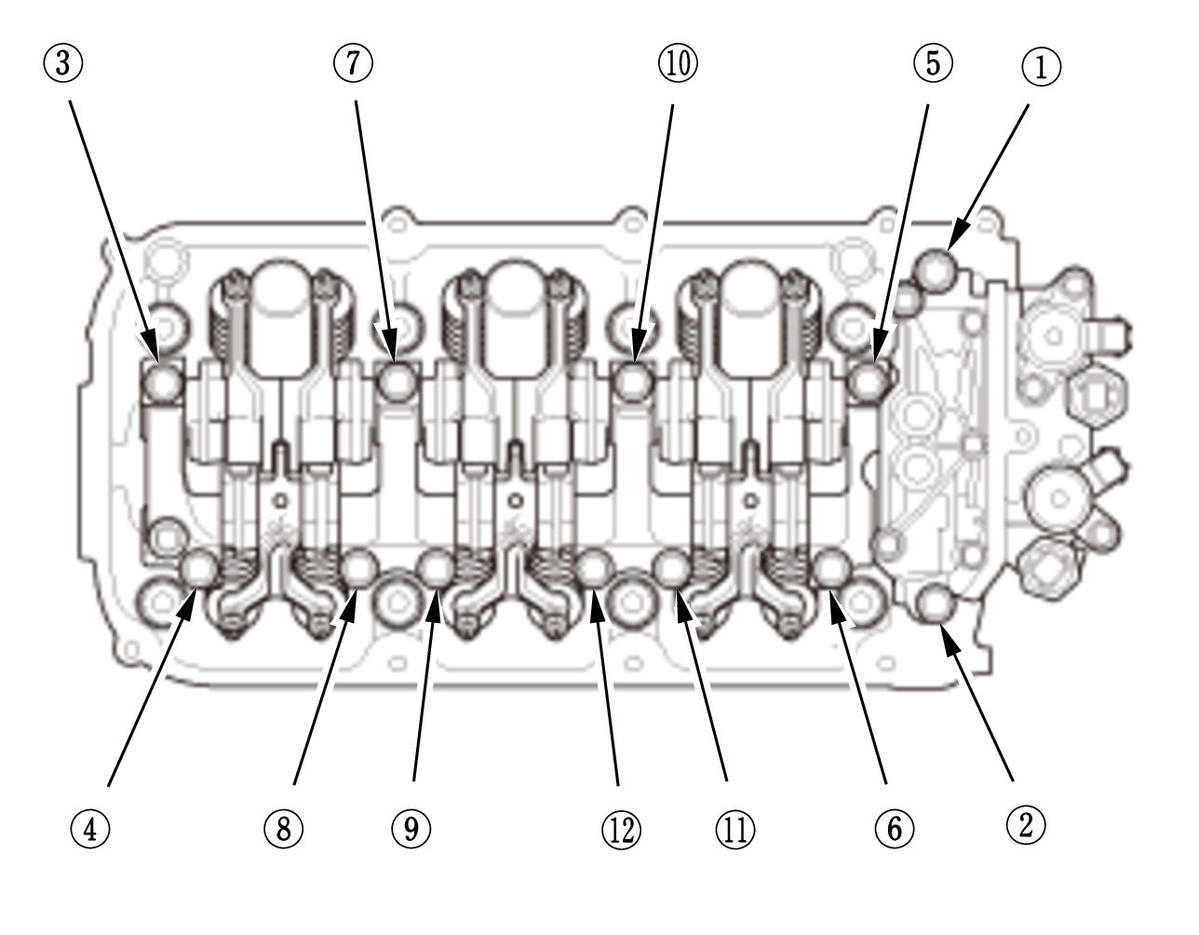

    Fig 1: Front Rocker Arm Assembly Loosening Sequence
    GHH308644Courtesy of HONDA, U.S.A., INC.
    2. Loosen the rocker shaft holder mounting bolts and the rear rocker arm oil control valve mounting bolts in sequence two turns at a time, to prevent damaging the valves or the rocker arm assembly.

    3. When removing the rocker arm assembly, do not remove the rocker shaft holder mounting bolts and the rear rocker arm oil control valve mounting bolts. The bolts will keep the rocker arms on the shafts.
