ATF Level Check: Check
- How to read the torque specifications .
- Keep all foreign particles out of the transmission.
- Be careful not to burn yourself.
- Vehicle - Lift Set
- HDS DLC - Connect
- ATF Level - Check
With AWD Without AWD
1. Enter the VSA maintenance mode 2. Start the engine.
3. Shift the transmission to the S position/mode, then select the sequential shift mode by pressing the paddle shifter.
4. Using the paddle shifters, run the vehicle in 1st gear, 2nd gear, 3rd gear, and 4th gear, waiting 10 seconds after shifting in to each gear. After shifting into 4th gear, wait 10 seconds, allow the wheels to slow down and slowly press the brakes.
NOTE:- Do not apply sudden or a strong brake pedal force when coming to a stop.
- Do not shift beyond 4th gear or transmission damage may occur.
5. Shift the transmission to the P position/mode, then raise the engine speed to around 2, 000 rpm for couple seconds to ensure that the torque converter is full of ATF.
6. Run the engine at idle speed until the ATF Temperature on the HDS data list reaches between 99-113 deg.F (37- 45 deg.C). If the temperature exceeds 113 deg.F (45 deg.C), turn the engine off, allow the transmission to cool down and turn the engine back on.

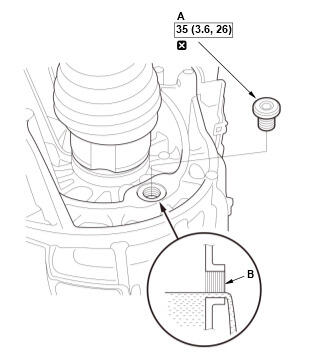

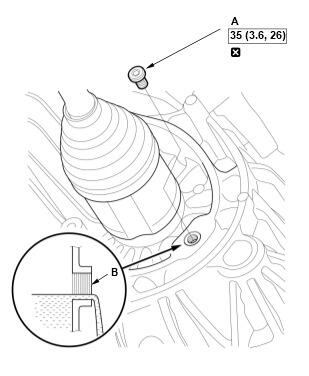

7. With the engine running, remove the level check plug (A), and make sure the ATF level is at the conditions described below.
NOTE: When the ATF temperature between 99-113 deg.F (37- 45 deg.C), the proper ATF level is about 6 mm (0.25 in) higher than the bottom of the level check plug hole.8. If necessary, add Honda ATF TYPE 3 through the level check hole until the ATF overflows, then immediately install a new level check plug.
9. Turn the engine off.
Proper Transmission Fluid (ATF) level: The ATF overflows from the level check hole (B) with the transmission warmed up between 99-113 deg.F (37 - 45 deg.C) with the engine running. - All Removed Parts - Install
1. Install the parts in the reverse order of removal.
