Removal and Installation

  1. PCM and Bracket - Remove
  2. Air Cleaner - Remove
  3. Intake Air Duct - Remove
  4. Positive Cable and Connector (Alternator) - Disconnect

    NOTE:  Remove the positive cable clamp at the same time.

  5. Connector (A/F Sensor and Secondary HO2S Sensor) - Disconnect

    NOTE:  Remove the connector clamps and the harness clamps at the same time.

  6. Connector (Oil Pressure Switch) - Disconnect

    NOTE:  Remove the harness holder clamp at the same time.

  7. CMP Sensor - Remove
  8. Connector (ECT Sensor 1) - Disconnect
  9. Connector (EGR Valve) - Disconnect

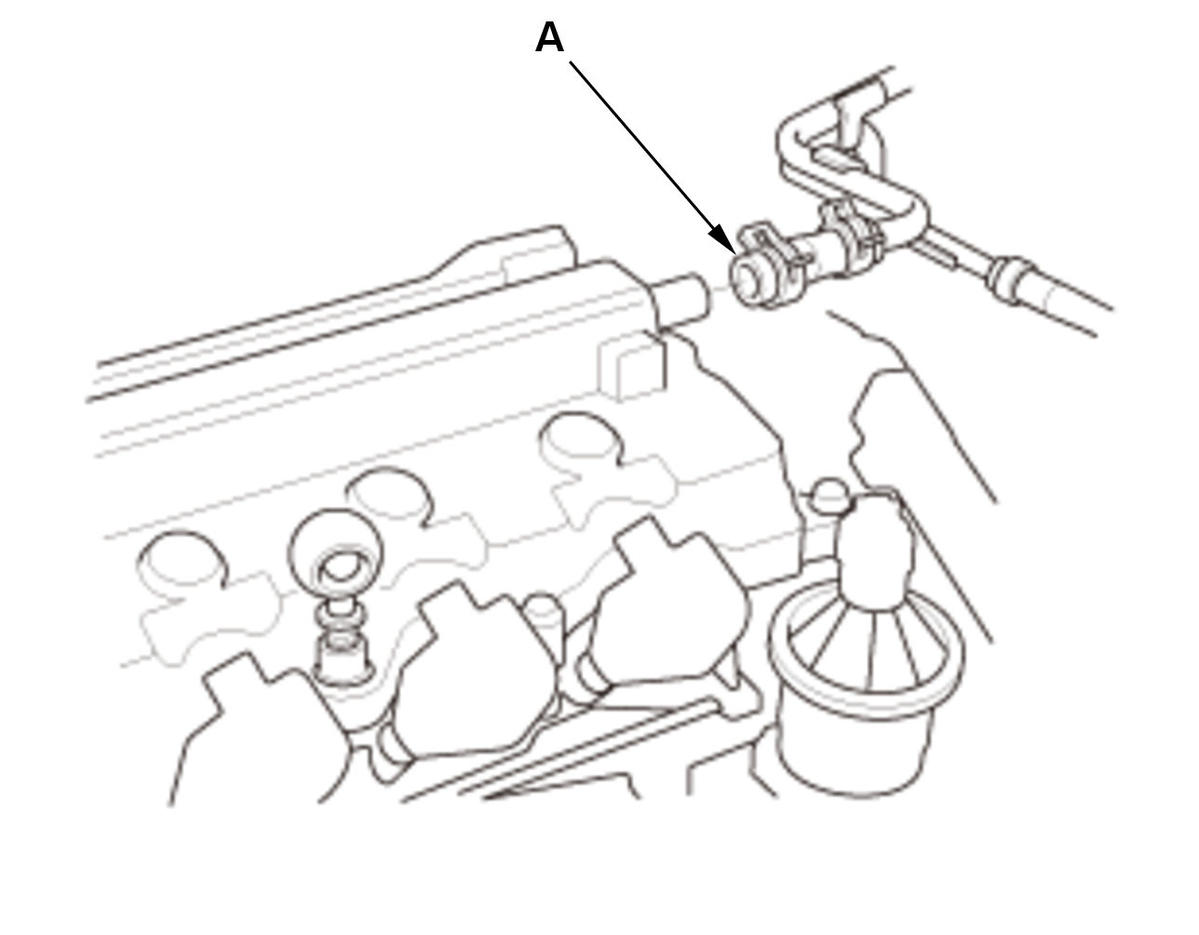

  10. Breather Hose - Disconnect
    GHH435336Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the breather hose (A).
  11. Harness Holder - Move

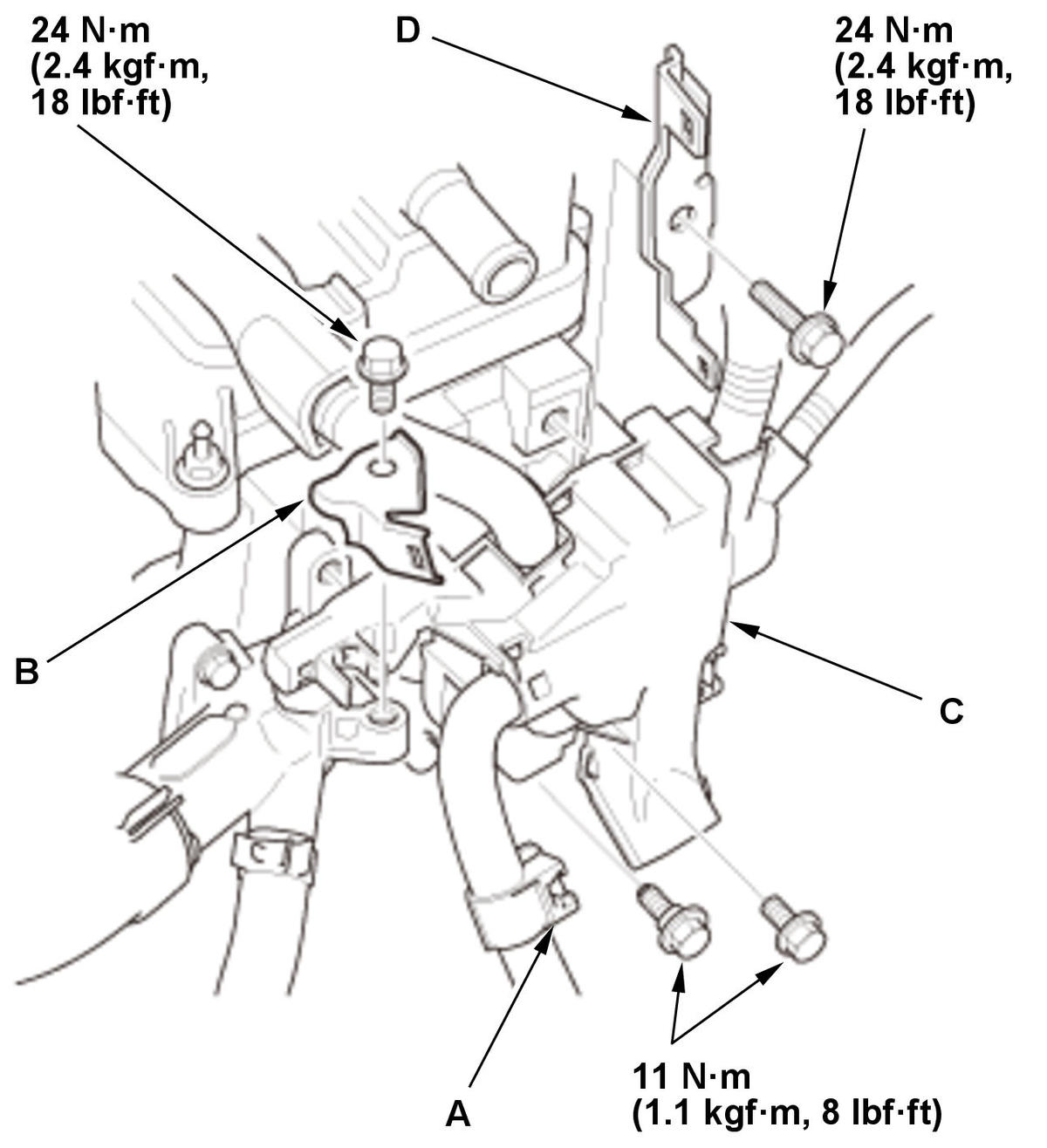

    Fig 1: Harness Holder With Torque Specifications
    GHH435337Courtesy of HONDA, U.S.A., INC.
      1. Remove the harness clamp (A).

    2. Remove the bracket (B).

    3. Move the harness holder (C).

    4. Remove the bracket (D).
  12. Cylinder Head Cover - Remove
  13. Rocker Arm Assembly - Remove
  14. Camshaft Sprocket - Remove
  15. Camshaft - Remove

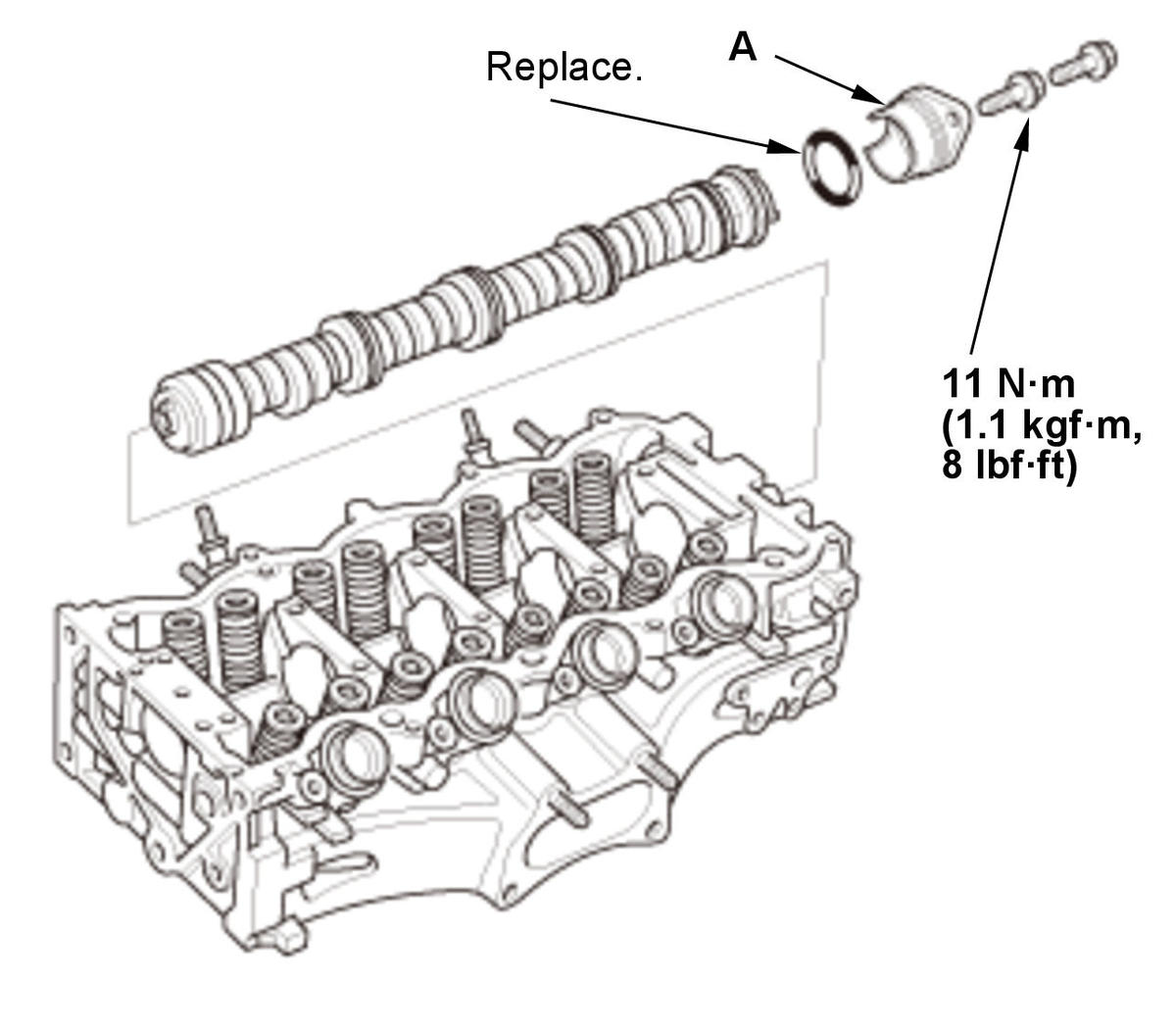

    Fig 2: Camshaft Thrust Cover With Torque Specifications
    GHH435338Courtesy of HONDA, U.S.A., INC.
      1. Remove the camshaft thrust cover (A).

    2. Pull out the camshaft.
  16. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
