Power Windows System Description - Components
Power Window Master Switch
The power window master switch is installed in the driver's door panel.
Power Window Motors

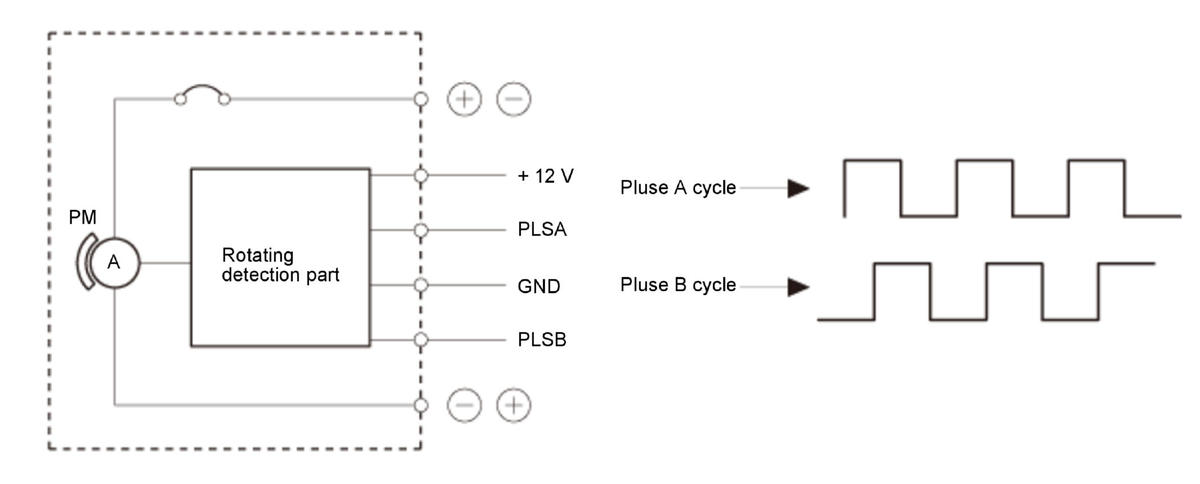

The motor includes the pulse sensors that detect window's position and direction with the motor rotation. The rotating direction (up/down) is detected with the rotating cycles from the 2 pulse sensors and the moving amount (window position) is also detected by considering 4 pulses as one rotation pulse.
