Exploded View
Exploded View
Alternator - Exploded View

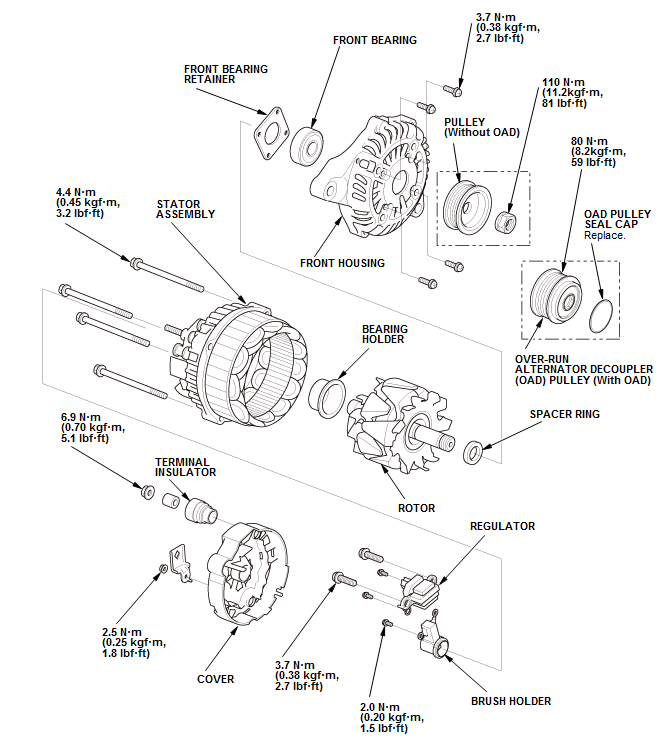

Fig 1: Exploded View Of Alternator With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
