Repair Procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative(-) battery terminal.
  2. Remove the roof trim assembly.

    (Refer to "ROOF TRIM ASSEMBLY ")

  3. Remove the hands free Mic (A) after disconnecting the connector and loosening 3 screws.

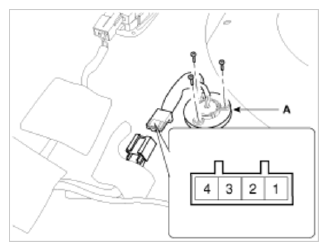

    Fig 1: Identifying Hands Free Mic
    G09887667Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Be careful not to damage the roof trim when removing the hands free Mic.
  4. Check the continuity of Mic between terminals.
    Fig 2: Checking Continuity Between Mic Terminals
    G09887668Courtesy of HYUNDAI MOTOR AMERICA
