Removal and Installation: Procedure

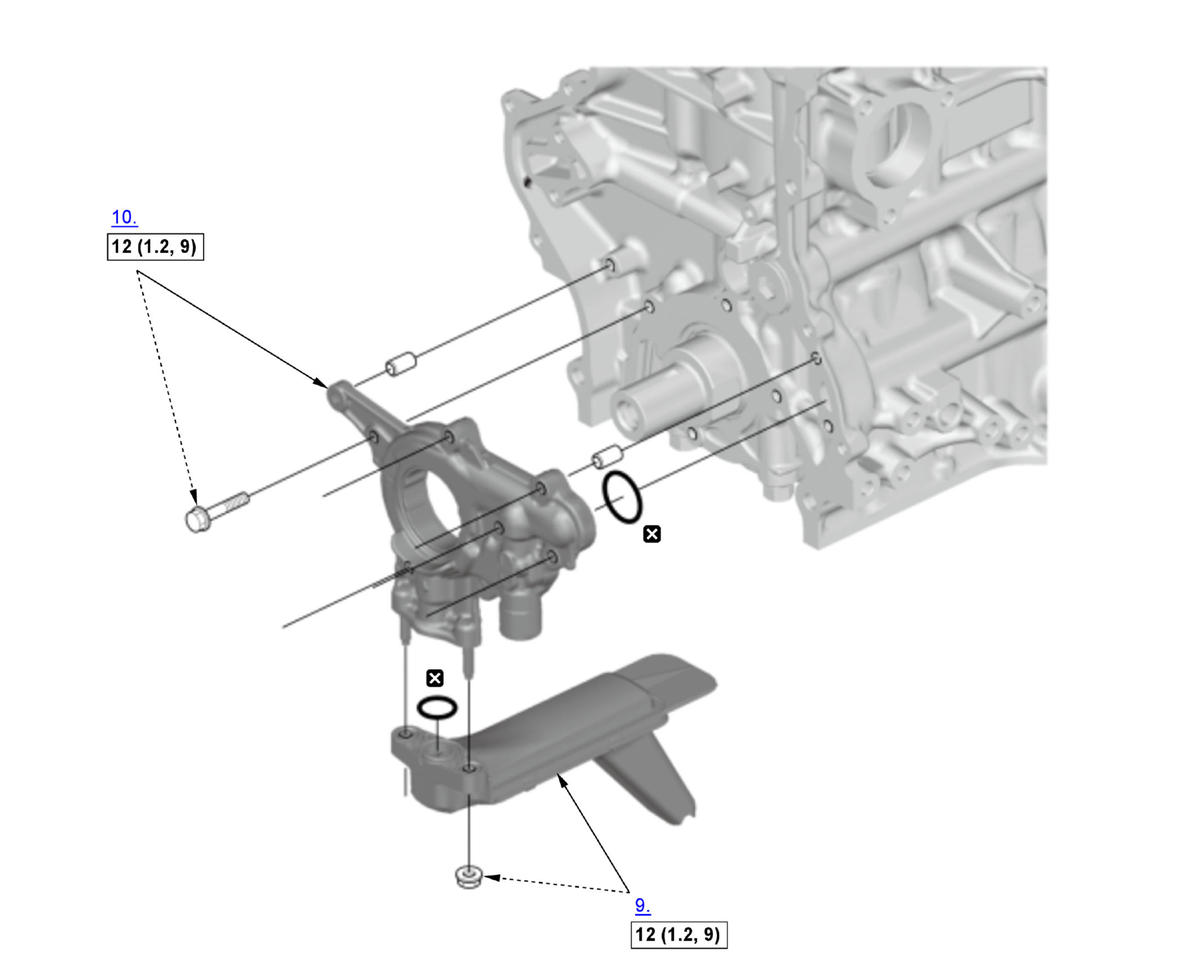

Fig 1: Engine Oil Pump With Torque Specifications
GHH418293Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
Replace
  1. Cowl Cover - Remove
  2. Motor Undercover - Remove

    NOTE:  Remove the necessary part(s).

  3. Cam Chain - Remove
  4. Crankshaft Sprocket - Remove
  5. PCU - Remove
  6. Universal Lifting Eyelet - Install
    GHH418294Courtesy of HONDA, U.S.A., INC.

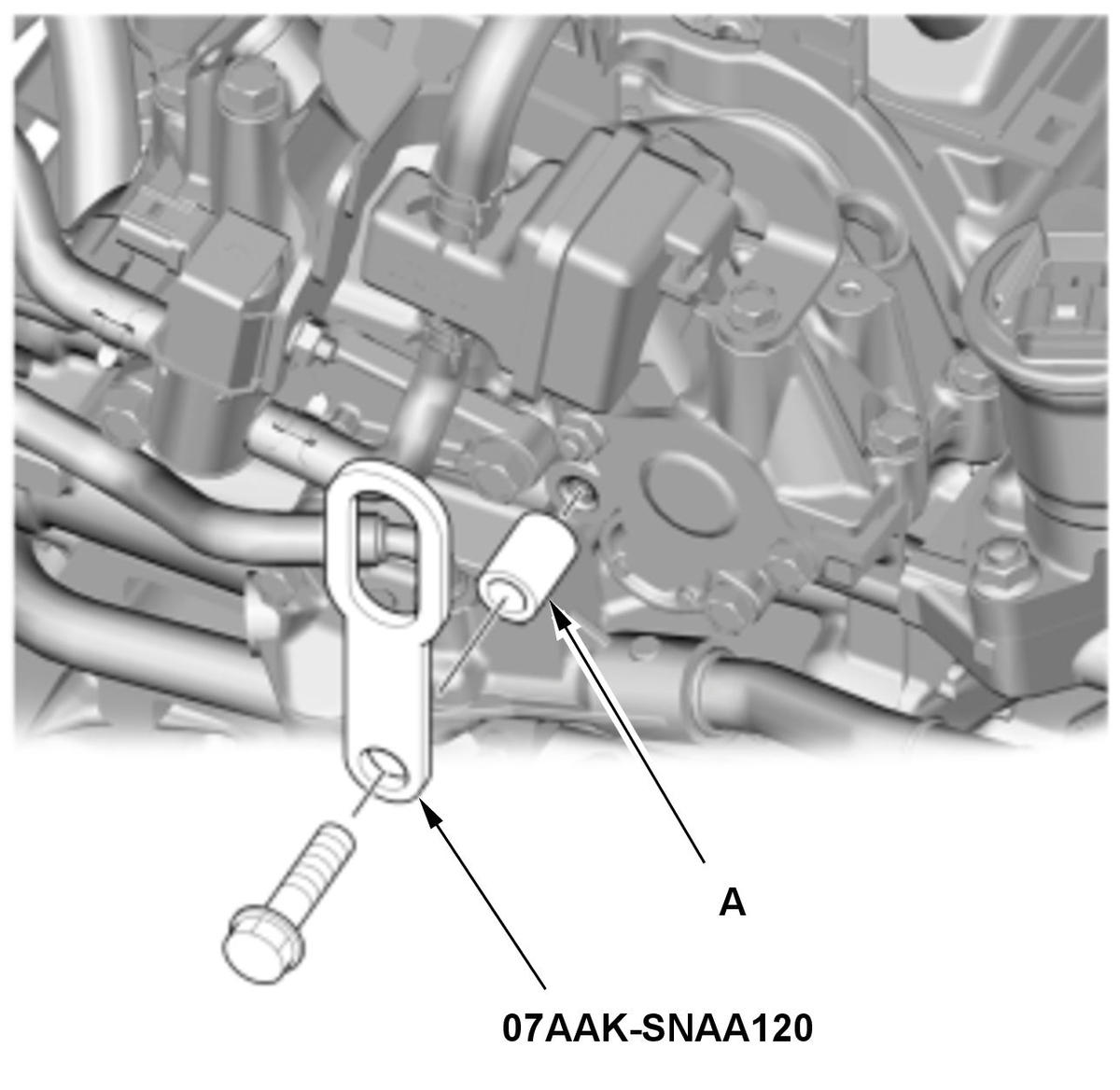

    		 1. Install the universal lifting eyelet with a commercially available spacer (A).
  7. Engine Support Hanger - Install
    GHH418295Courtesy of HONDA, U.S.A., INC.

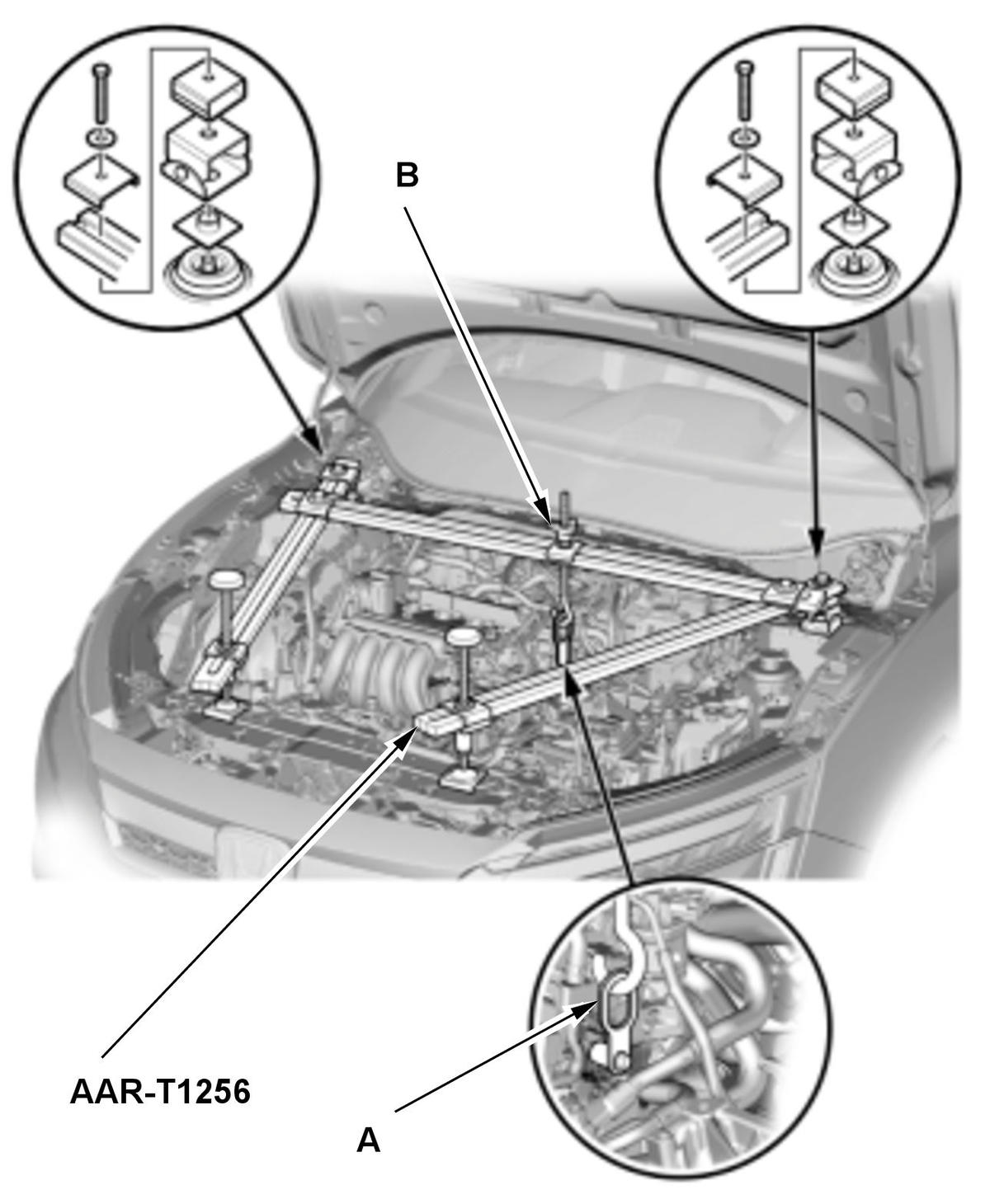

    		 1. Install the engine support hanger onto the vehicle as shown, and attach the hook to the slotted hole in the universal lifting eyelet (A). Tighten the wing nut (B) by hand, and lift and support the engine/transmission.
    • NOTE:  Be careful when working around the windshield.
    • Be careful not to damage the hood opener cable when installing the engine support hanger at the front bulkhead.
  8. Oil Pan - Remove
  9. Oil Strainer - Remove
  10. Oil Pump - Remove
  11. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
