VSA System - Testing & Troubleshooting (Plug-In)
>>
Circuit Diagram
>>

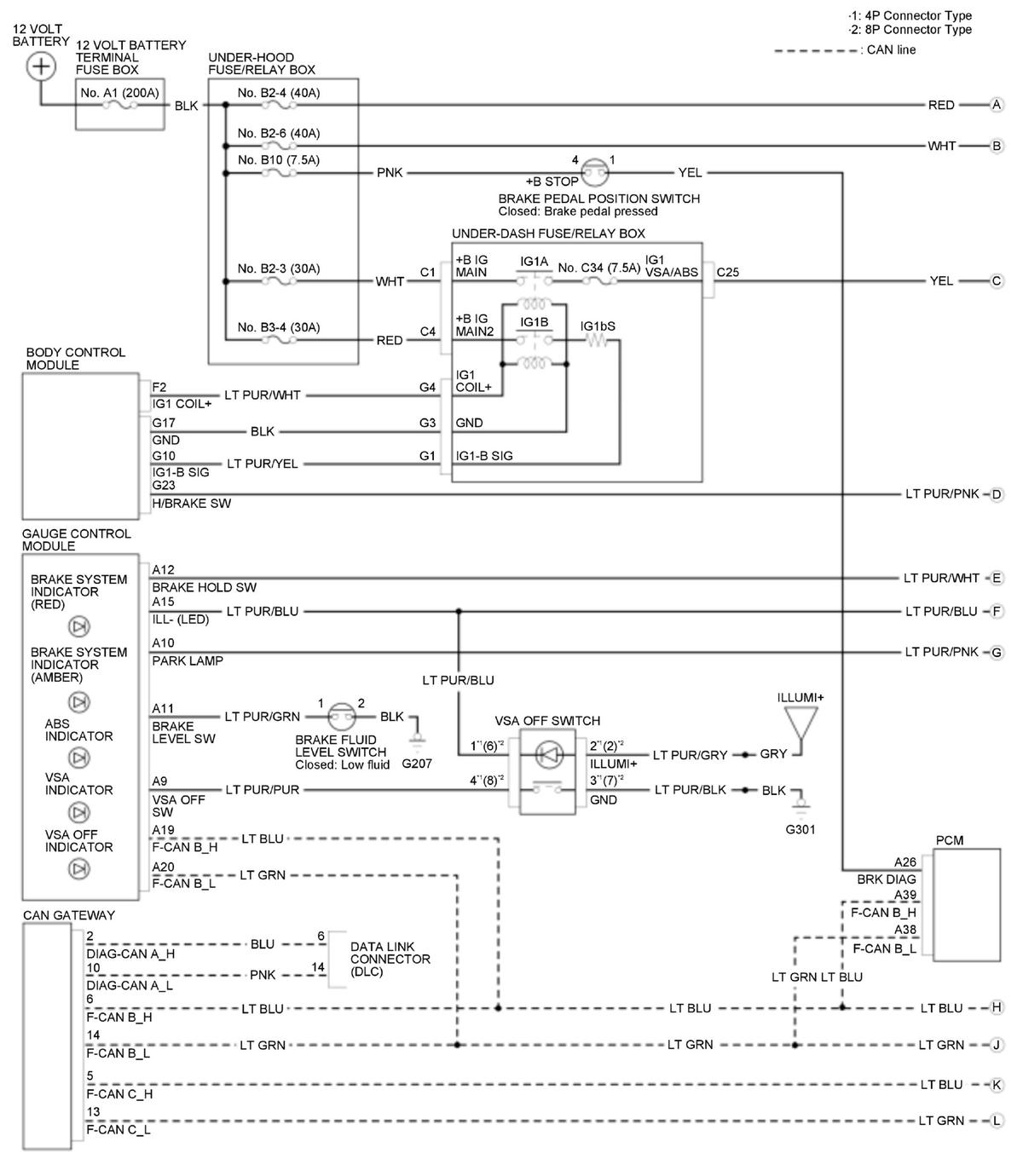

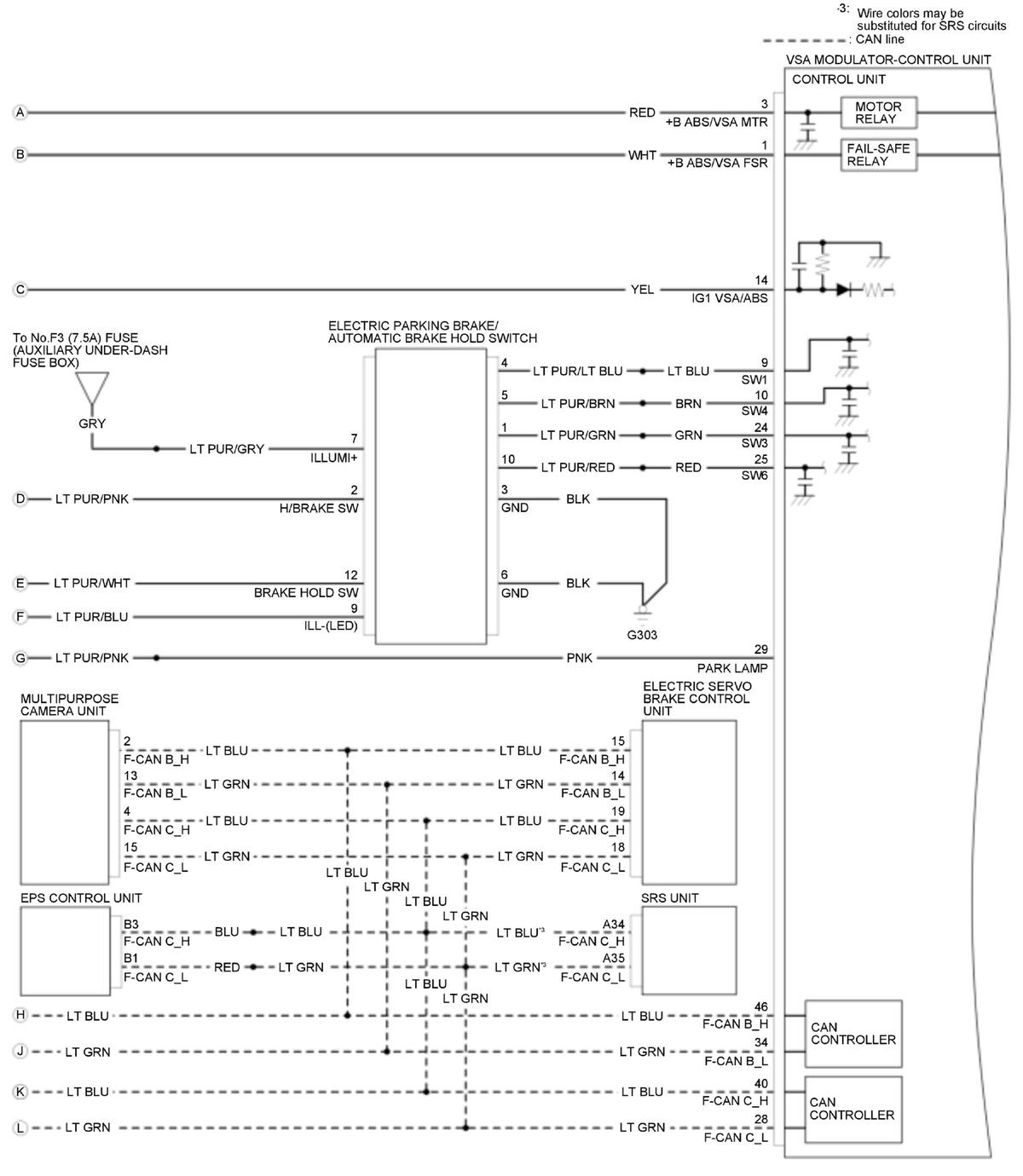

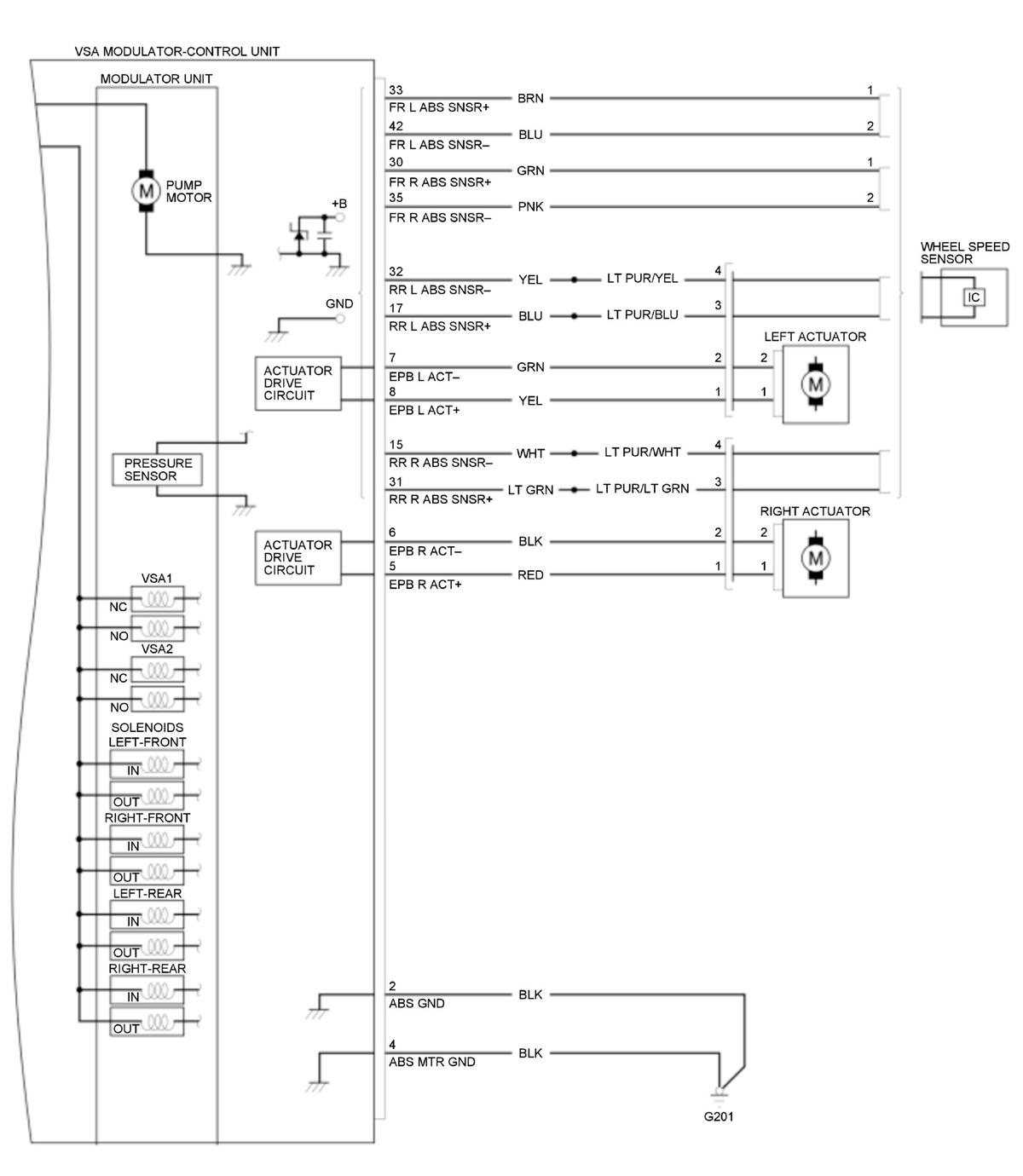

VSA System Circuit Diagram
VSA System Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
