Removal and Installation: Procedure

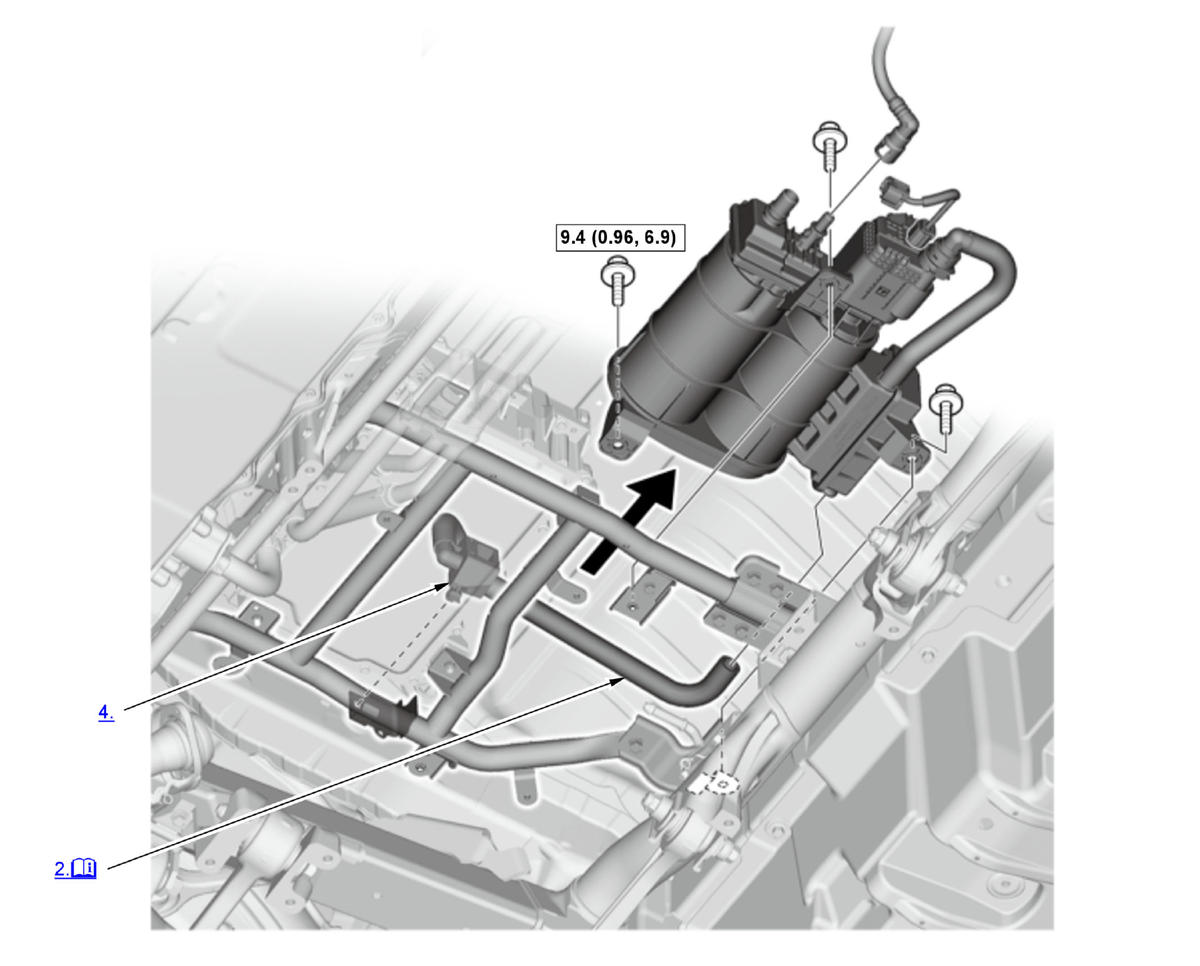

EVAP Canister/EVAP Canister Drain Box/EVAP Leak Check Module*1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)

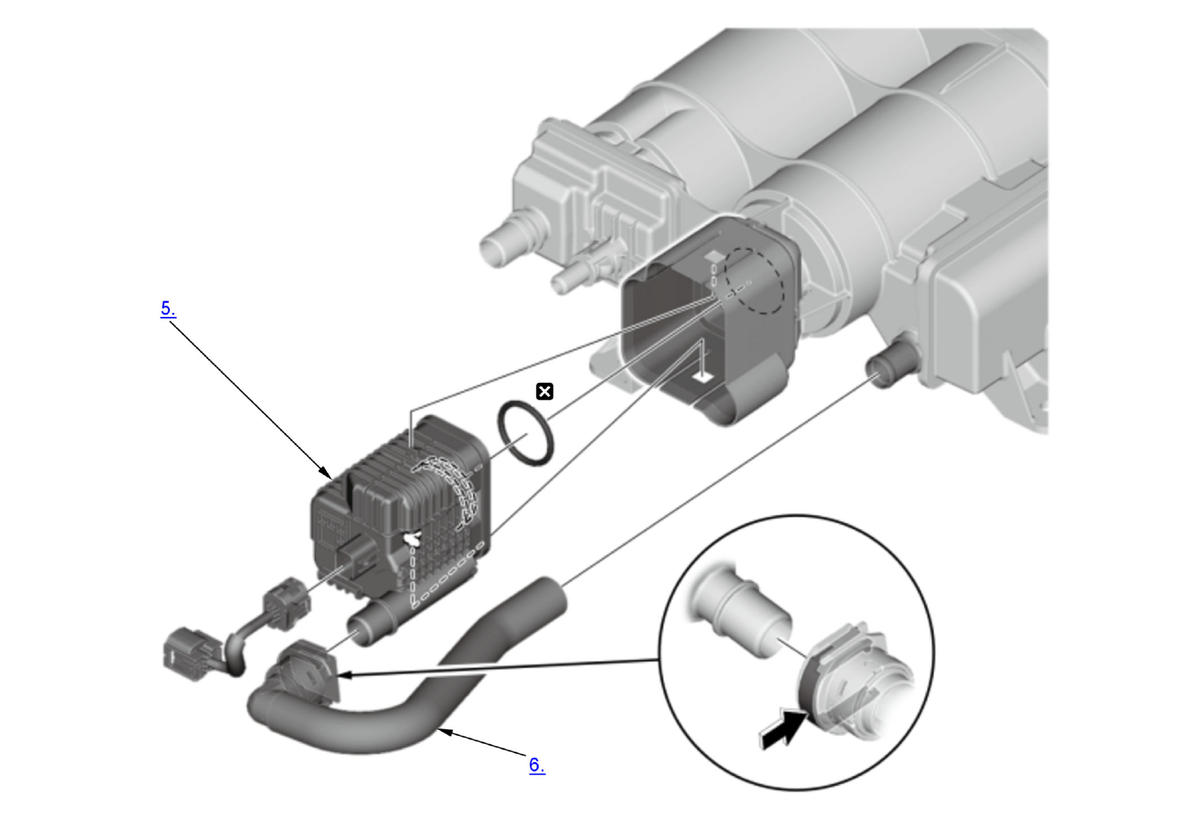

EVAP Canister/EVAP Canister Drain Box/EVAP Leak Check Module*1

Courtesy of HONDA, U.S.A., INC.

Replace

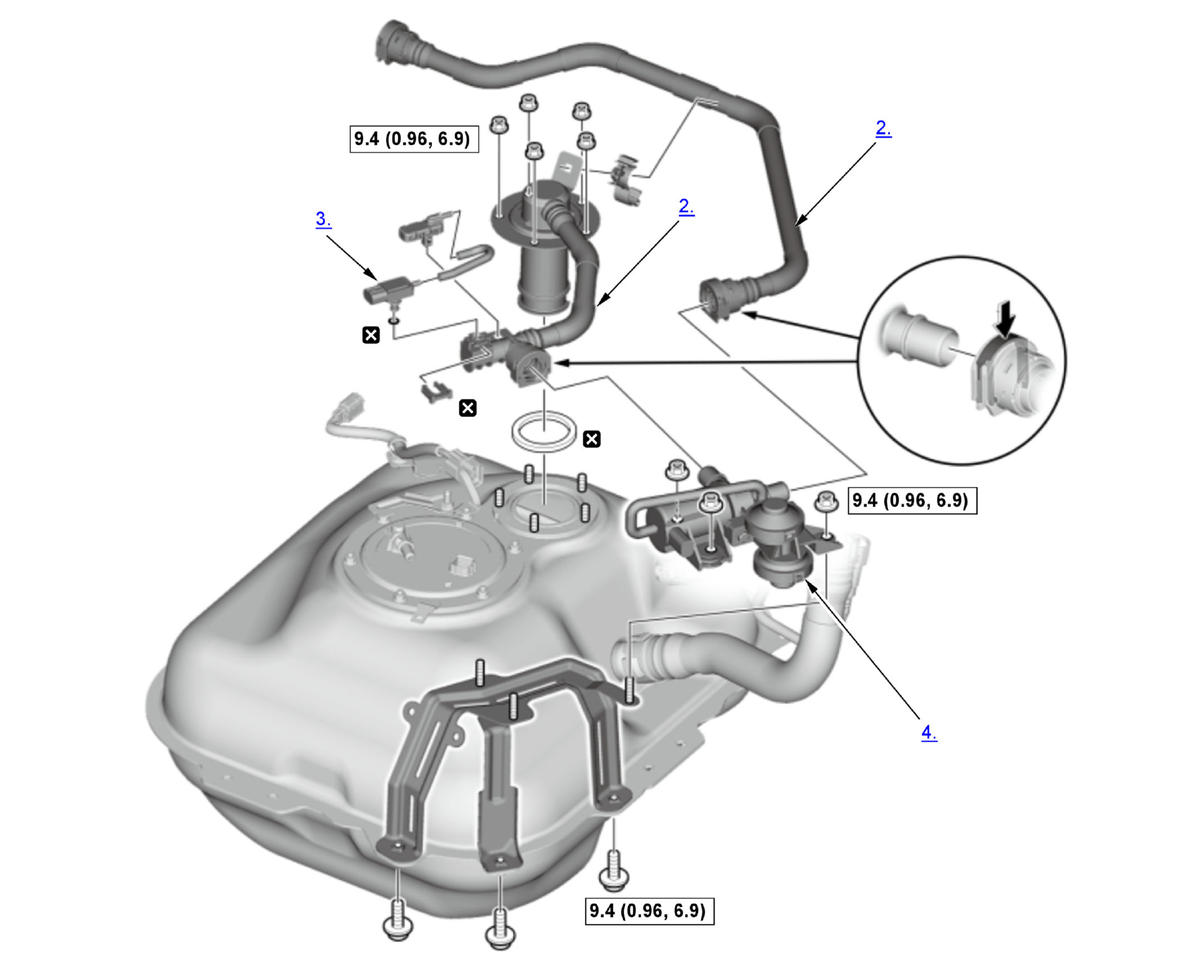

Fuel Vapor Containment Valve/FTP Sensor/Fuel Vent Tube*1

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

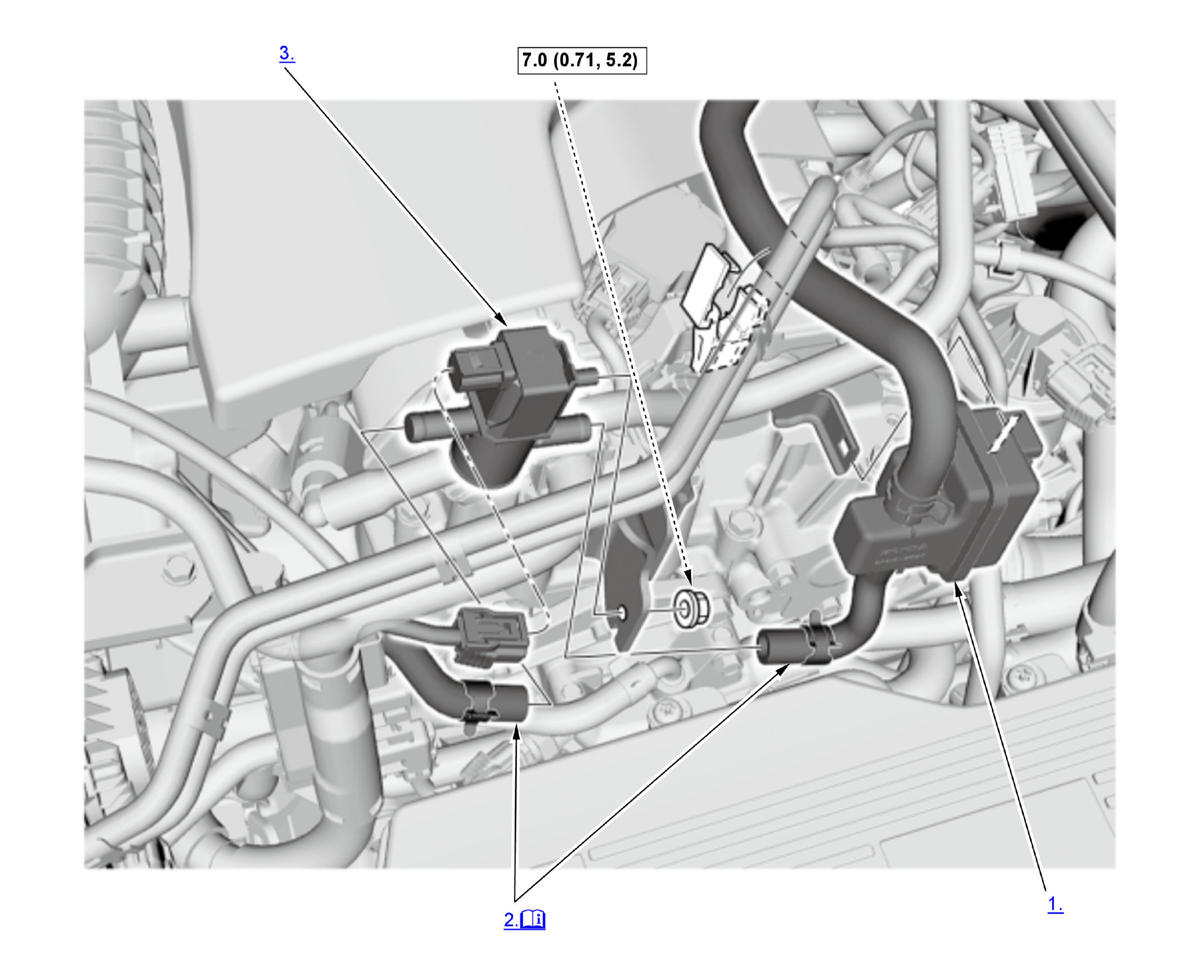

EVAP Canister Purge Valve*1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)

EVAP Canister/EVAP Leak Check Module

1. Fuel Tank - Remove
2. Hose - Disconnect

   Note for installation

   Make sure the hose clamps are properly positioned and tightened .

3. EVAP Canister Assembly - Remove
4. EVAP Canister Drain Box - Remove
5. EVAP Leak Check Module - Remove
6. Drain Tube - Disconnect (If Necessary)
7. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

   Fuel Vapor Containment Valve/FTP Sensor/Fuel Vent Tube

8. Fuel Tank - Remove
9. Fuel Vent Tube - Remove
10. FTP Sensor - Remove
11. Fuel Vapor Containment Valve - Remove
12. All Removed Parts - Install

    1. Install the parts in the reverse order of removal.

    EVAP Canister Purge Valve

13. Purge Joint - Remove
14. Hoses - Disconnect

    Note for installation

    Make sure the hose clamps are properly positioned and tightened .

15. EVAP Canister Purge Valve - Remove
16. All Removed Parts - Install

    1. Install the parts in the reverse order of removal.
