Removal And Installation: Camshaft: Installation: Front

  1. Front Camshaft - Install

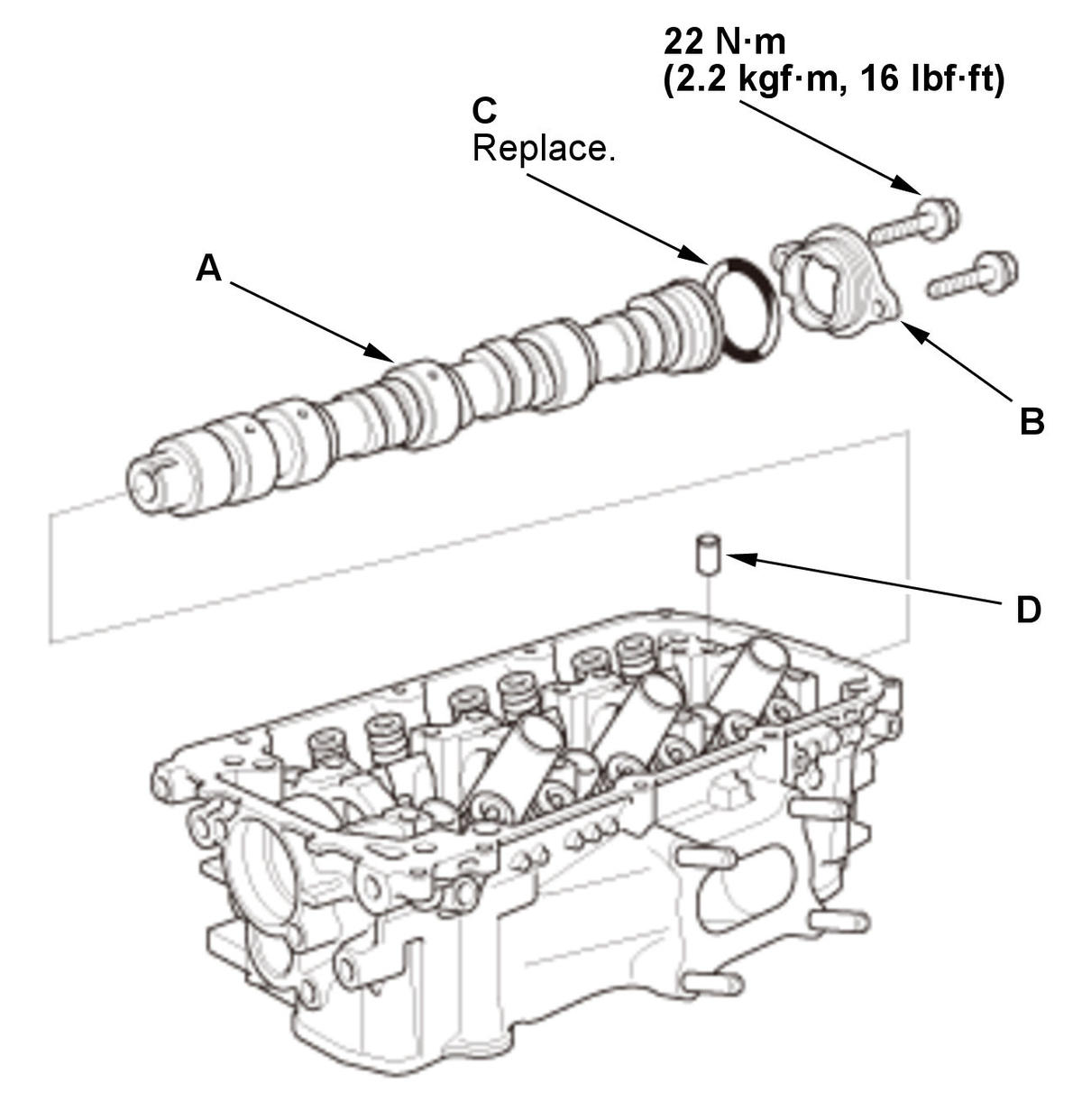

    Fig 1: Front Camshaft With Torque Specifications
    GHH308458Courtesy of HONDA, U.S.A., INC.
    1. Apply new engine oil to the journals and the cam lobes.

    2. Insert the camshaft (A) into the cylinder head, then install the camshaft thrust cover (B).

    NOTE:  Always use a new O-ring (C).

    3. Install the dowel pin (D).
  2. Front Rocker Arm Assembly - Install
  3. Front Camshaft Oil Seal - Install
  4. Front Camshaft Pulley and Back Cover - Install

    NOTE:  Apply new engine oil to the threads of the camshaft pulley mounting bolt.

  5. Timing Belt - Install
  6. Valve Clearance - Adjust
  7. Front Cylinder head Cover - Install - Refer to:

    Cylinder Head Cover Removal and Installation (9-Speed A/T) (2019 2020 2021)

    Cylinder Head Cover Removal and Installation

  8. Water Passage - Install
  9. 12 Volt Battery Box - Install
  10. 12 Volt Battery - Install
  11. Engine Coolant - Refill/Air Bleed - Refer to:

    Coolant Replacement (2016 2017 2018)

    Coolant Replacement (2019 2020 2021)

  12. Idle Speed - Inspect
  13. CKP Pattern - Clear/Learn
