Removal & Installation

  1. Camera Cover - Remove
    NOTE: When removing the camera cover, take care not to rip the camera cover base.

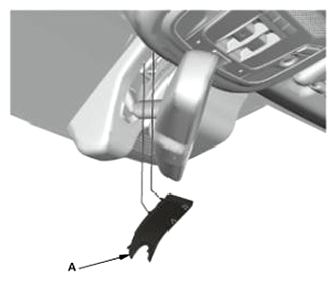

    1. Remove the cover (A).
      G12437030Courtesy of AMERICAN HONDA MOTOR CO., INC.

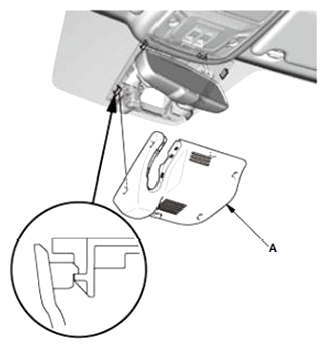

    2. Remove the camera cover (A).
      G12437031Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Multipurpose Camera Unit - Remove
    NOTE:
    • The multipurpose camera unit performs writing to EEPROM after vehicle is switched to the OFF mode. Wait for about three seconds and then disconnect the connector.
    • Do not touch the lens part of the multipurpose camera unit directly.

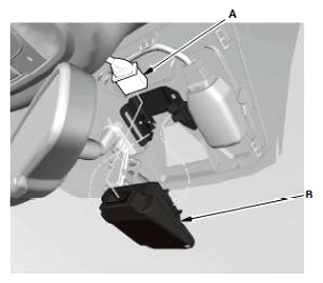

    1. Disconnect the connector (A).
    2. Remove the multipurpose camera unit (B).
    G12437032Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
  4. Multipurpose Camera Unit - Update
  5. Multipurpose Camera Unit - Aim
