Collision Mitigation Braking System (CMBS) Component Location Index

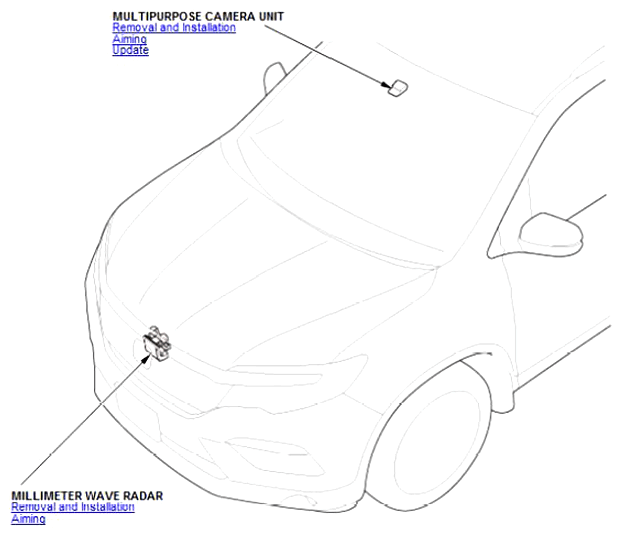

G12436916

Courtesy of AMERICAN HONDA MOTOR CO., INC.

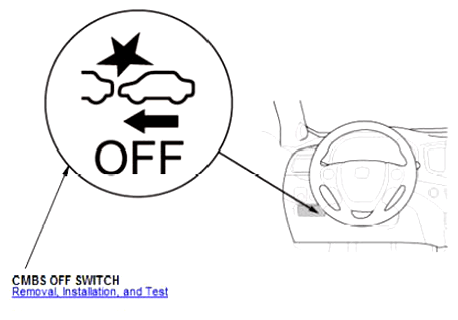

G12436917

Courtesy of AMERICAN HONDA MOTOR CO., INC.
