Home >> Honda >> 2019 >> Pilot LX, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Driving Assistance Systems >> Adaptive Cruise Control (ACC) System Description - System Diagram

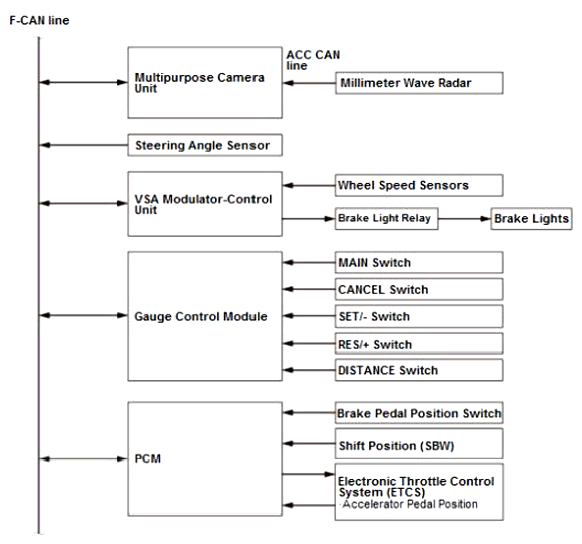

Adaptive Cruise Control (ACC) System Description - System Diagram

G12436870

Courtesy of AMERICAN HONDA MOTOR CO., INC.
