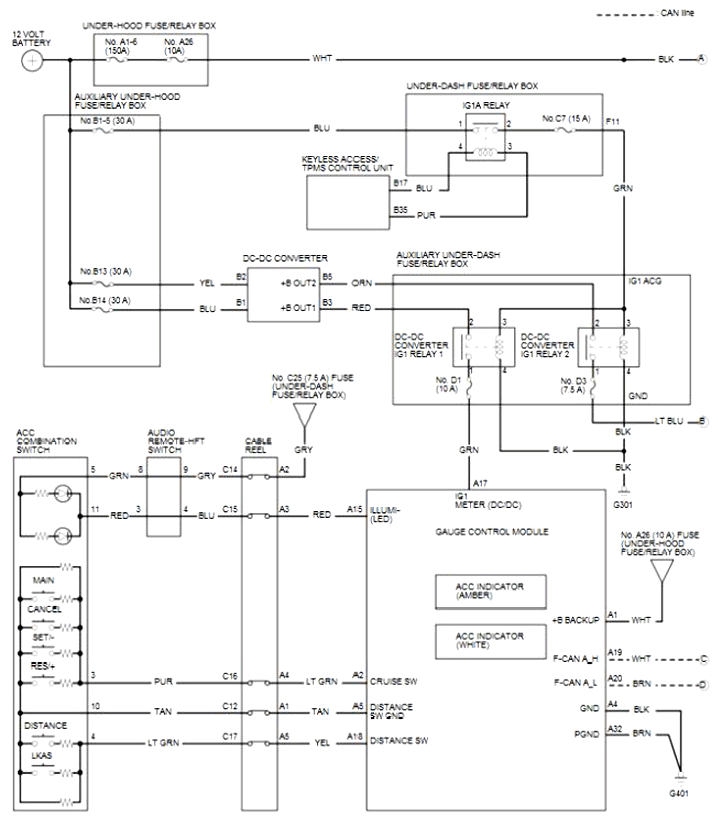

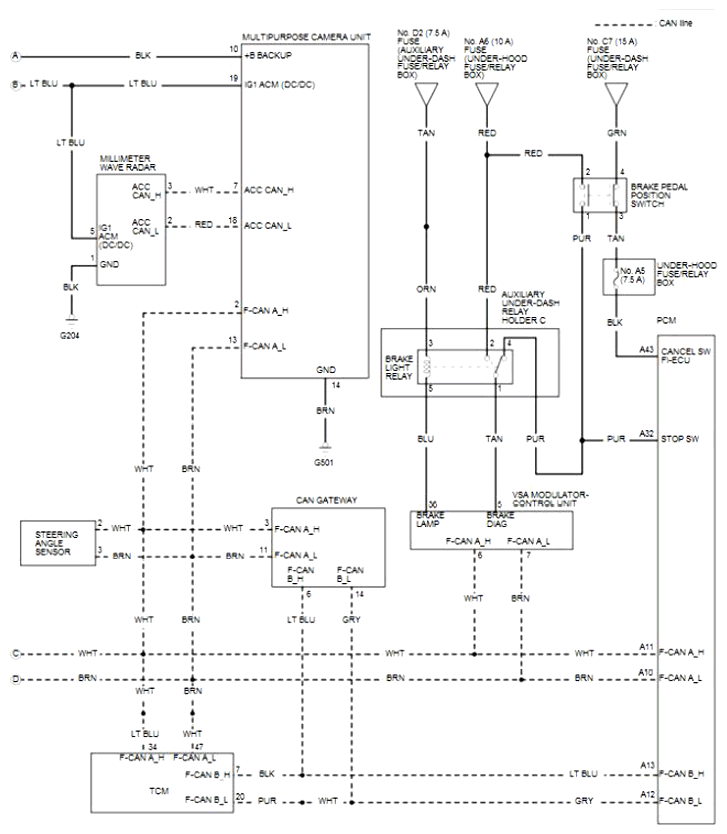

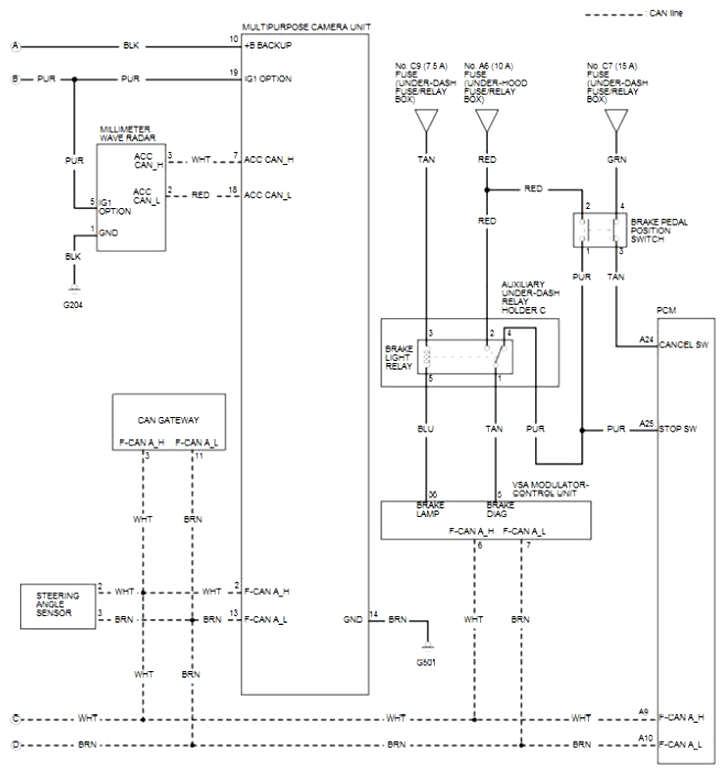

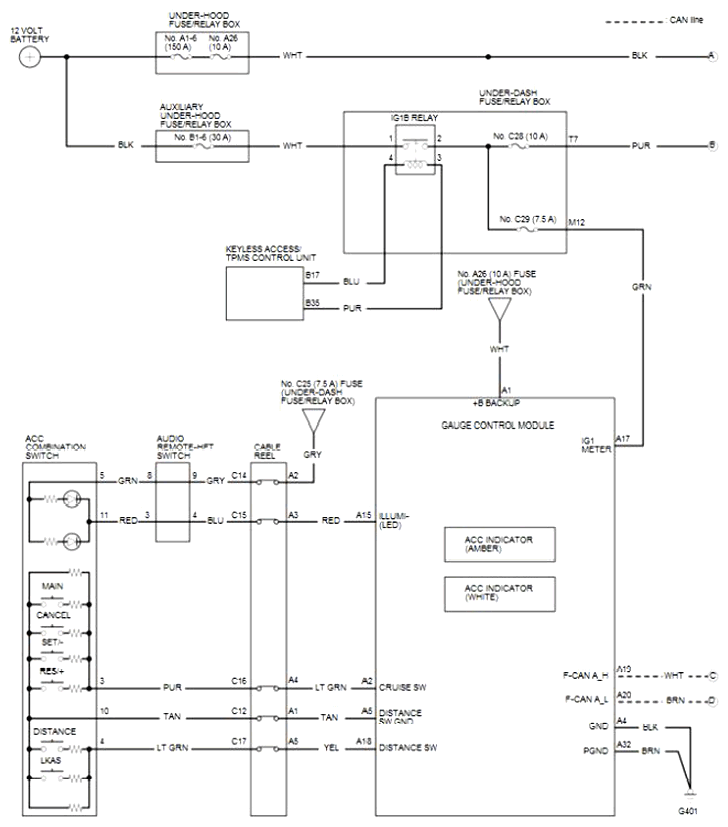

Adaptive Cruise Control (ACC) Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.
