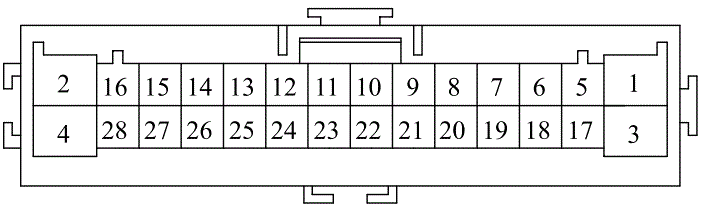

C160 (Male) CONNECTOR END VIEW
| No. | Color | Name |
| 1 | LT_BLU | +B_RADIO |
| 2 | WHT | SUPP |
| 3 | GRN | +B_HSW |
| 4 | BRN | CTR_ACC_SOCKET |
| 5 | RED | SDNP |
| 6 | GRY | SCS |
| 7 | PUR | VDC_SOL-OUT |
| 8 | GRN | STS |
| 9 | WHT | VDC_SOL-IN |
| 10 | RED | SMALL_LT |
| 11 | LT_GRN | IG2+A/C |
| 12 | TAN | TAM |
| 13 | BRN | F-CAN A_L |
| 14 | WHT | F-CAN A_H |
| 15 | LT_BLU | K-LINE |
| 17 | GRN | R_TURN_SIG |
| 18 | BLU | L_TURN_SIG |
| 19 | TAN | BRAKE_DIAG |
| 20 | PNK | SENSOR(COM) |
| 21 | BRN | FR_WHEEL_LF- |
| 22 | LT_BLU | F-CAN B_H |
| 23 | GRY | FR_WHEEL_LF+ |
| 24 | GRY | F-CAN B_L |
| 25 | WHT | +B_BACKUP |
| 26 | PUR | STOP_SW |
| 27 | TAN | IG1_VSA(DC/DC) |
