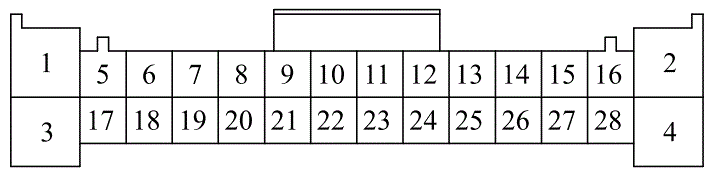

C160 (Female) CONNECTOR END VIEW
 Courtesy of HONDA, U.S.A., INC.
|
| No. |
Color |
Name |
| 1 |
LT_BLU |
+B_RADIO |
| 2 |
WHT |
SUPP |
| 3 |
GRN |
+B_HSW |
| 4 |
BRN |
CTR_ACC_SOCKET |
| 5 |
RED |
SDNP |
| 6 |
GRY |
SCS |
| 7 |
PUR |
VDC_SOL-OUT |
| 8 |
GRN |
STS |
| 9 |
WHT |
VDC_SOL-IN |
| 10 |
RED |
SMALL_LT |
| 11 |
LT_GRN |
IG2+A/C |
| 12 |
TAN |
TAM |
| 13 |
BRN |
F-CAN A_L |
| 14 |
WHT |
F-CAN A_H |
| 15 |
LT_BLU |
K-LINE |
| 17 |
GRN |
R_TURN_SIG |
| 18 |
BLU |
L_TURN_SIG |
| 19 |
TAN |
BRAKE_DIAG |
| 20 |
PNK |
SENSOR(COM) |
| 21 |
BRN |
FR_WHEEL_LF- |
| 22 |
LT_BLU |
F-CAN B_H |
| 23 |
GRY |
FR_WHEEL_LF+ |
| 24 |
GRY |
F-CAN B_L |
| 25 |
WHT |
+B_BACKUP |
| 26 |
PUR |
STOP_SW |
| 27 |
TAN |
IG1_VSA(DC/DC) |
 Courtesy of HONDA, U.S.A., INC.
|

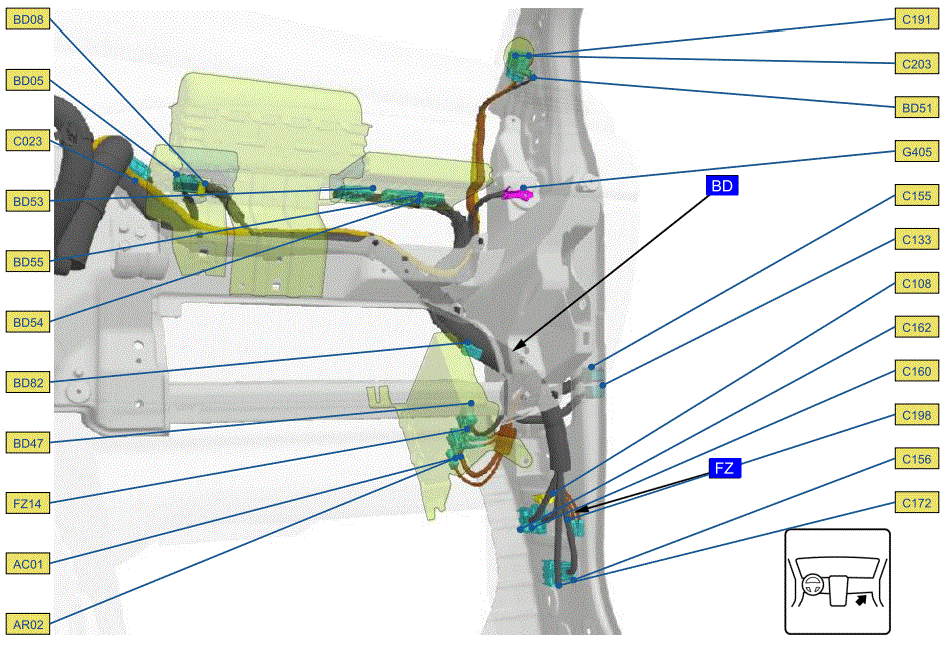

AC: HDMI Main Harness
| Ref. No. |
Connector Name |
Male/Female |
Connector Type |
Notes |
| AC01 |
RES Control Unit Connector C (20P) |
Female |
Component Connector |
|
AR: LVDS Wire Harness B
| Ref. No. |
Connector Name |
Male/Female |
Connector Type |
Notes |
| AR02 |
RES Control Unit Connector B (3P) |
Female |
Component Connector |
|
| C203 |
C203 |
|
In-line Connector |
|
BD: Dashboard Wire Harness
| Ref. No. |
Connector Name |
Male/Female |
Connector Type |
Notes |
| BD05 |
ANC/Active Sound Control Unit 20P Connector |
Female |
Component Connector |
|
| BD08 |
Front Passenger's Airbag Inflator 4P Connector |
Female |
Component Connector |
|
| BD47 |
RES Control Unit Connector A (16P) |
Female |
Component Connector |
|
| BD51 |
Right Tweeter 2P Connector |
Female |
Component Connector |
|
| BD53 |
Keyless Access/TPMS Control Unit Connector A (32P) |
Female |
Component Connector |
|
| BD54 |
Keyless Access/TPMS Control Unit Connector B (36P) |
Female |
Component Connector |
|
| BD55 |
Keyless Access/TPMS Control Unit Connector C (20P) |
Female |
Component Connector |
|
| BD82 |
Optional Connector D |
Female |
YOP Connector (Optional Connector) |
|
| C108 |
C108 |
|
In-line Connector |
|
| C133 |
C133 |
|
In-line Connector |
|
| C155 |
C155 |
|
In-line Connector |
|
| C156 |
C156 |
|
In-line Connector |
|
| C160 |
C160 |
|
In-line Connector |
|
| C162 |
C162 |
|
In-line Connector |
|
| C172 |
C172 |
|
In-line Connector |
|
| C191 |
C191 |
|
In-line Connector |
|
| C023 |
C023 |
|
Junction Connector |
|
| G405 |
G405 |
|
Ground |
|
FZ: Most Feeder
| Ref. No. |
Connector Name |
Male/Female |
Connector Type |
Notes |
| FZ14 |
RES Control Unit Connector E (2P) |
Female |
Component Connector |
|
| C198 |
C198 |
|
In-line Connector |
|
