Cruise Control System - Testing & Troubleshooting
>>
System Description
>>
Lane Keeping Assist System (LKAS) - System Diagram
Lane Keeping Assist System (LKAS) - System Diagram

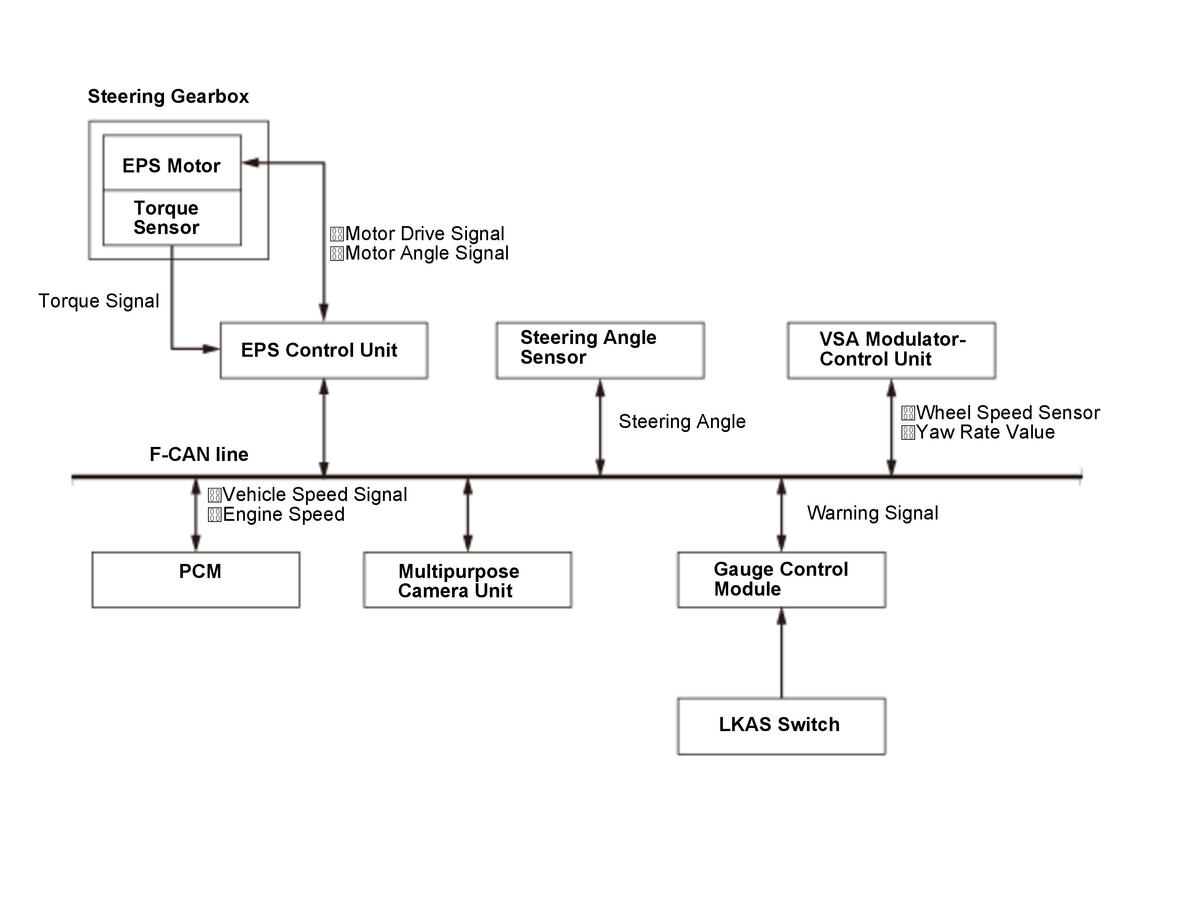

LKAS Control Block Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
