A/T System Circuit Diagram (2019 2020: 6-Speed A/T)

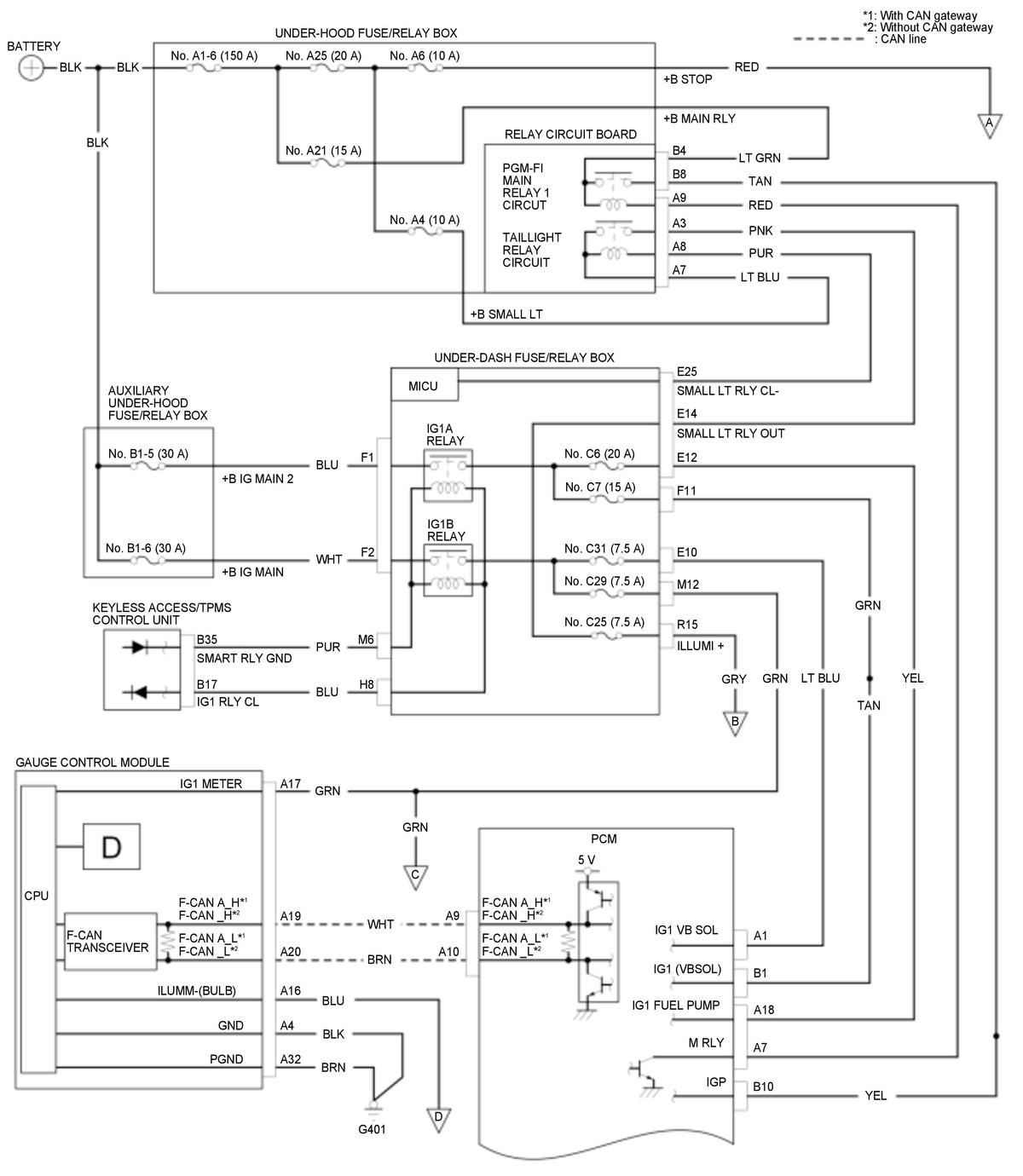

GHH304877

Courtesy of HONDA, U.S.A., INC.

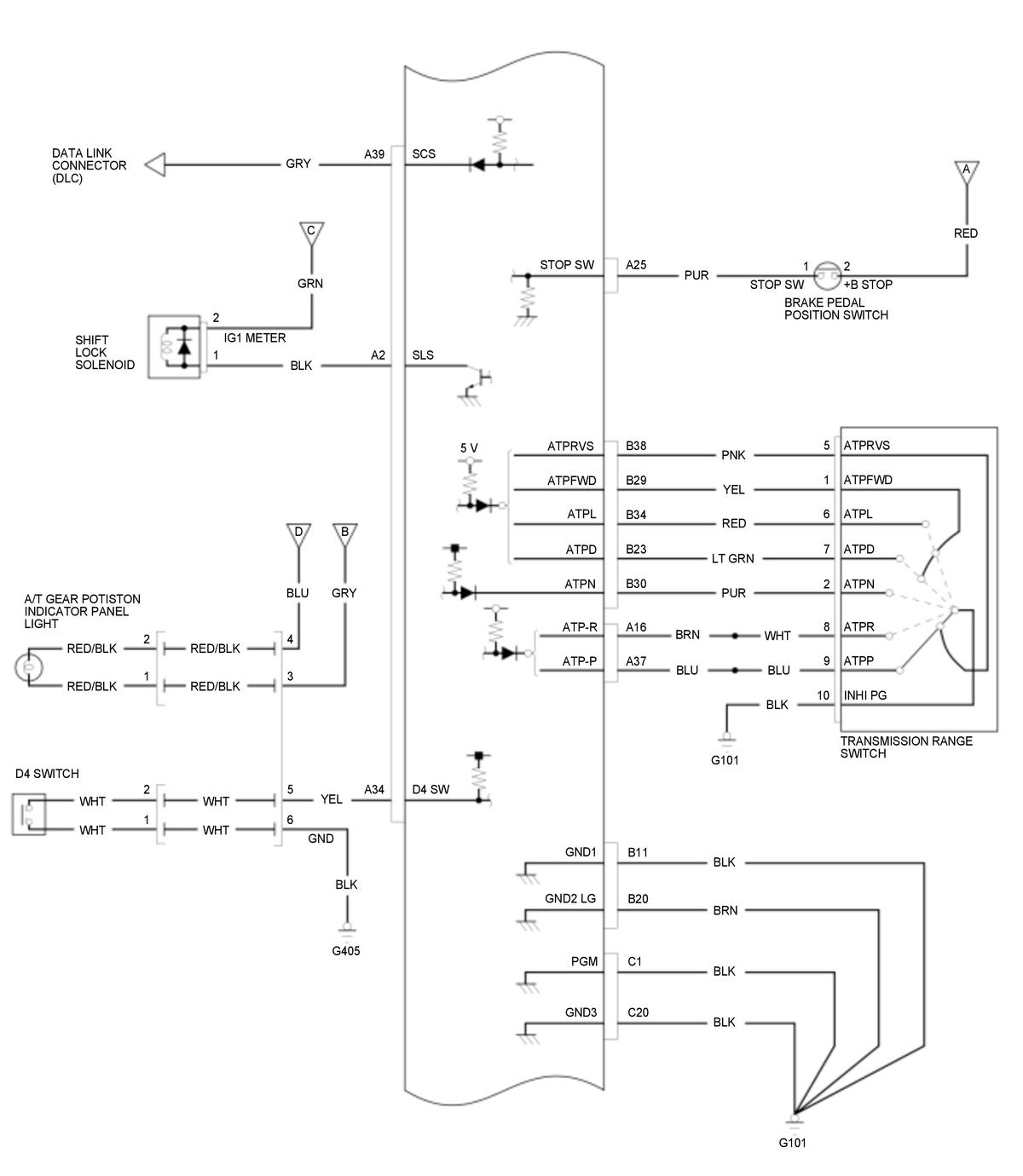

GHH304878

Courtesy of HONDA, U.S.A., INC.

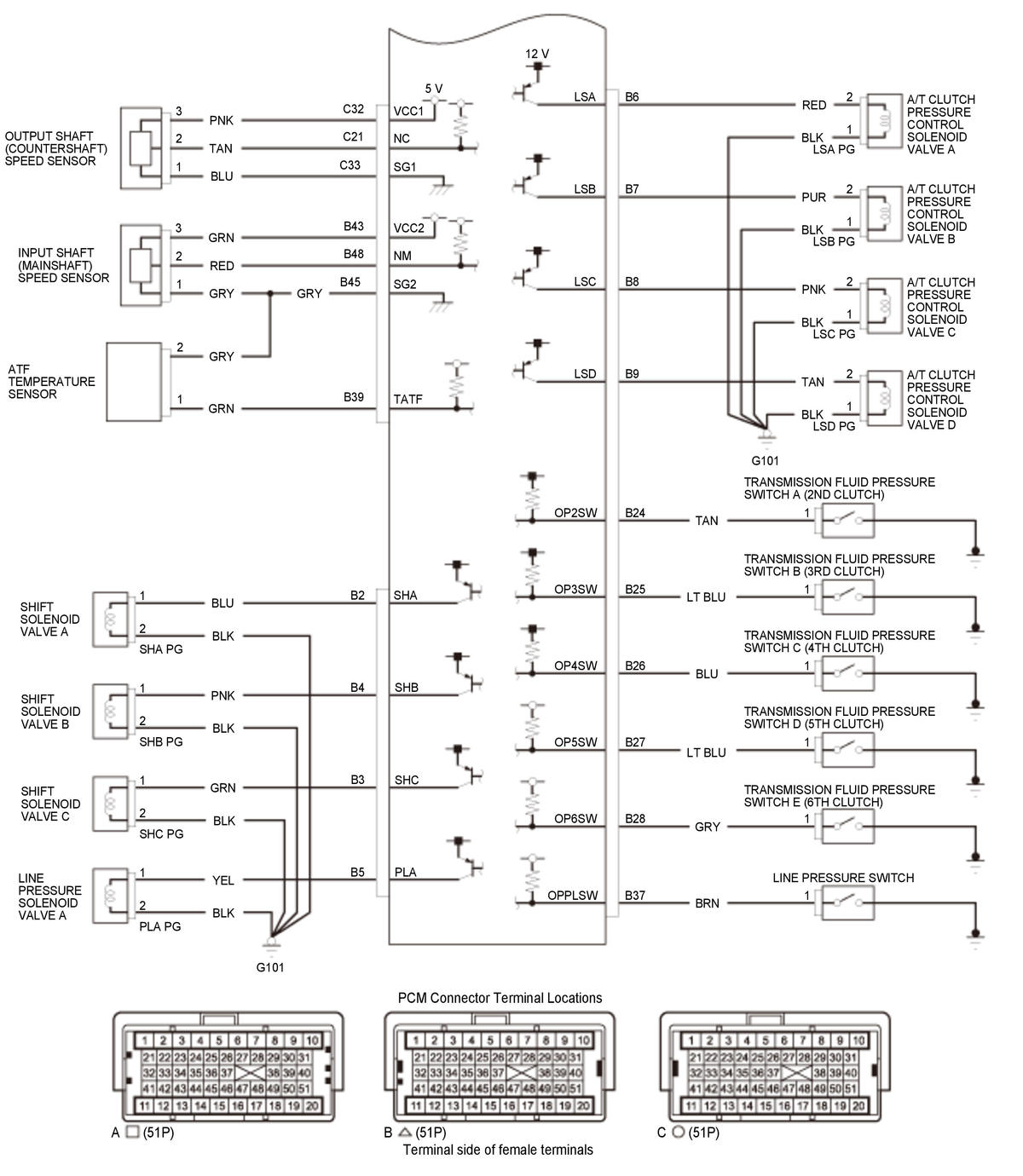

GHH304879

Courtesy of HONDA, U.S.A., INC.
