DTC P2719, P2720, P2721

DTC P2719  : A/T Clutch Pressure Control Solenoid Valve D Performance DTC P2720  : A/T Clutch Pressure Control Solenoid Valve D Low Input DTC P2721  : A/T Clutch Pressure Control Solenoid Valve D High Input

DTC (A/T)

1. Problem verification

   - 1. Turn the vehicle to the ON mode.

   - 2. Clear the DTC with the HDS.

   - 3. Turn the vehicle to the OFF (LOCK) mode.

   - 4. Turn the vehicle to the ON mode, and wait for several seconds.

   - 5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P2719 A/T Clutch Pressure Control Solenoid Valve D Performance

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P2720 A/T Clutch Pressure Control Solenoid Valve D Low Input
   P2721 A/T Clutch Pressure Control Solenoid Valve D High Input

   Is DTC P2719, P2720, or P2721 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between the sensor unit and the TCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Open wire check (LSD, VBSOL2 lines)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connectors.

   TCM subharness 26P connector

   TCM 58P connector

   - 3. Check for continuity between test points 1 and 2 individually.

   Test condition	Vehicle OFF (LOCK) mode
   	TCM subharness 26P connector: disconnected
   	TCM 58P connector: disconnected

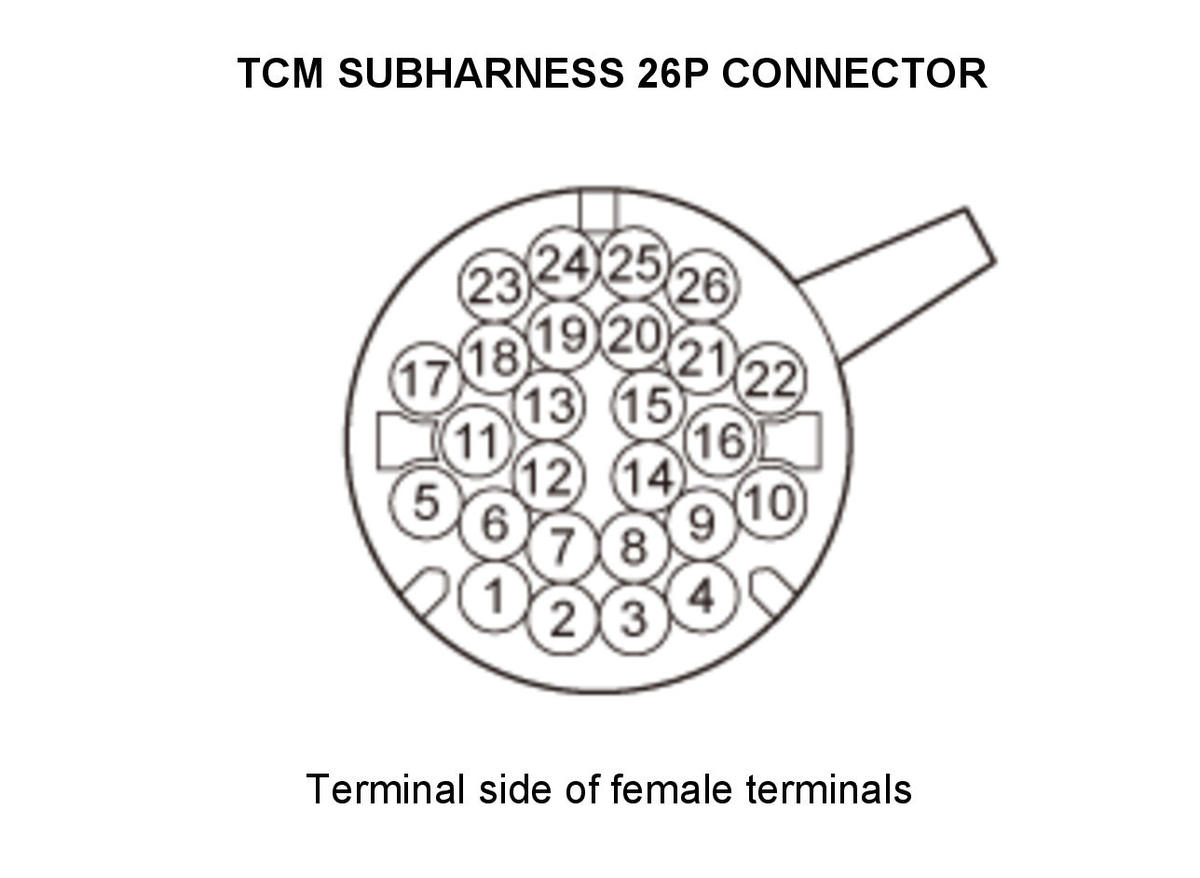

   Test point 1	TCM subharness 26P connector No. 4
   Test point 2	TCM 58P connector No. 6 - Refer to: A/T Control System Connector for Inputs and Outputs (2016 2017 2018), or A/T Control System Connector for Inputs and Outputs (2019), or A/T Control System Connector for Inputs and Outputs (2020 2021) .

   Test point 1	TCM subharness 26P connector No. 7
   Test point 2	TCM 58P connector No. 53 - Refer to: A/T Control System Connector for Inputs and Outputs (2016 2017 2018), or A/T Control System Connector for Inputs and Outputs (2019), or A/T Control System Connector for Inputs and Outputs (2020 2021) .

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The LSD and VBSOL2 wires are not open. Go to step 3.

   NO

   Repair an open in the LSD and/or VBSOL2 wire between the sensor unit and the TCM.

3. Shorted wire check (LSD, VBSOL2 lines)

   - 1. Check for continuity between the following test points and body ground individually.

   Test condition

   Vehicle OFF (LOCK) mode

   	TCM subharness 26P connector: disconnected
   	TCM 58P connector: disconnected

   Connector	Terminal
   TCM 58P connector - Refer to: A/T Control System Connector for Inputs and Outputs (2016 2017 2018), or A/T Control System Connector for Inputs and Outputs (2019), or A/T Control System Connector for Inputs and Outputs (2020 2021) .	No. 6
   	No. 53

   Is there continuity?

   YES

   Repair a short to ground in the LSD and/or VBSOL2 wire between the sensor unit and the TCM.

   NO

   The LSD and VBSOL2 wires are OK. Replace the hydraulic control unit .
