A/T Oil Seal Replacement: Replacement

NOTE:

Unless otherwise indicated, illustrations used in the procedure are for AWD.

Control Shaft Oil Seal

  1. Front Bulkhead Cover - Remove
  2. Air Intake Tube - Remove
    GHH304702Courtesy of HONDA, U.S.A., INC.
  3. Control Shaft Oil Seal - Remove

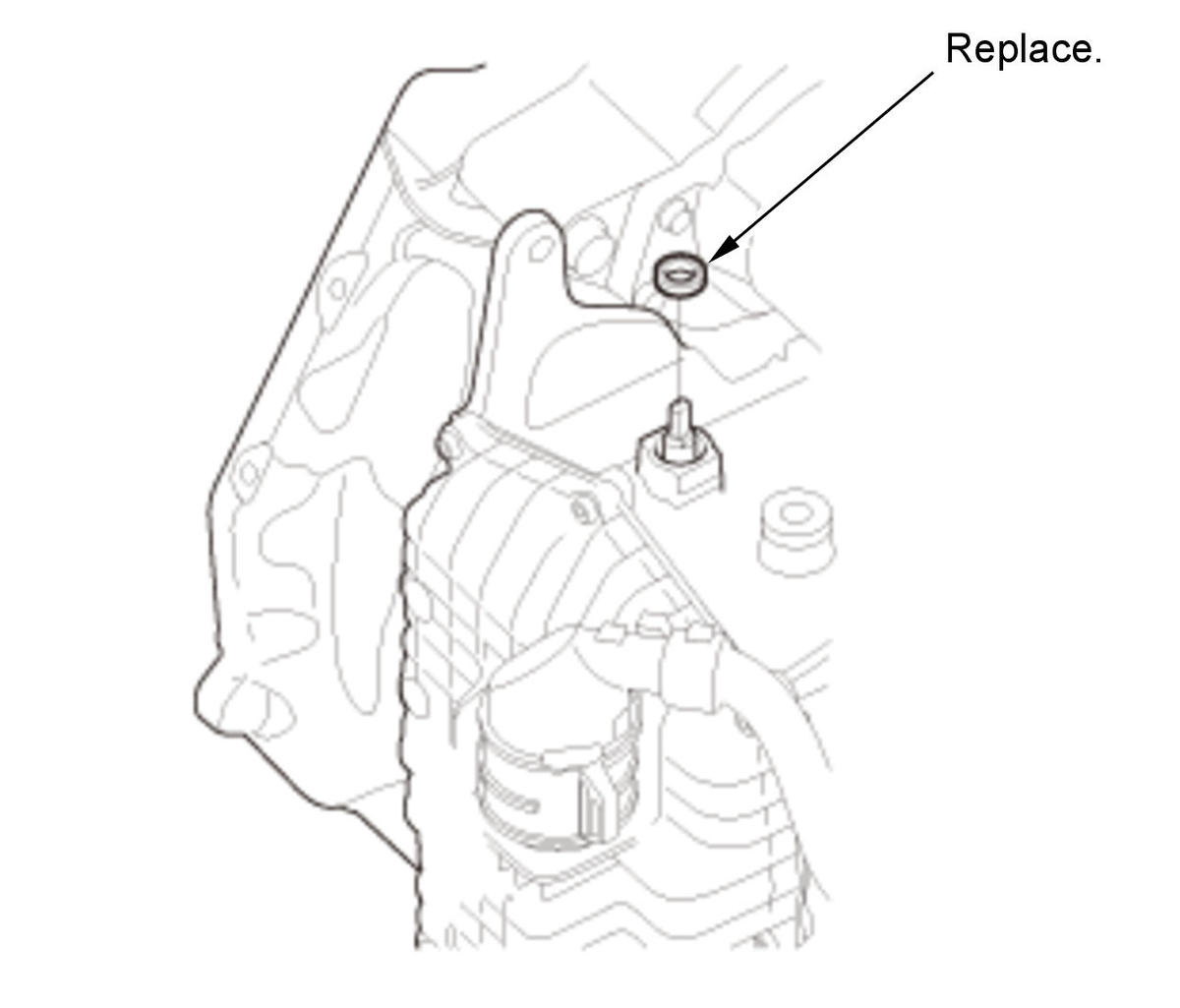

    GHH304703Courtesy of HONDA, U.S.A., INC.

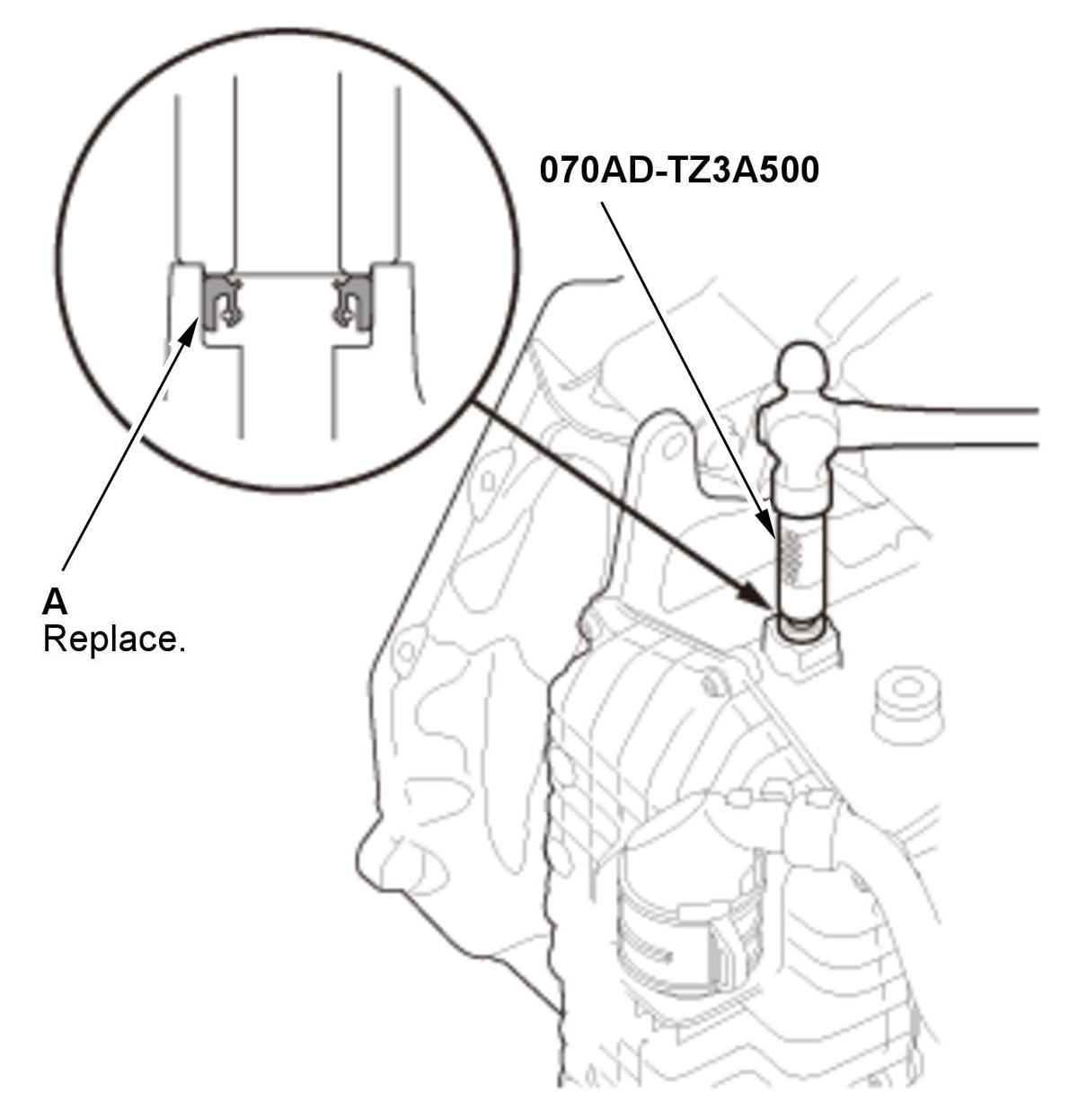

  4. Control Shaft Oil Seal - Install
    GHH304704Courtesy of HONDA, U.S.A., INC.
    		 1. Install the control shaft oil seal (A) using oil seal driver E until the oil seal driver has been fully seated.
  5. Air Intake Tube - Install

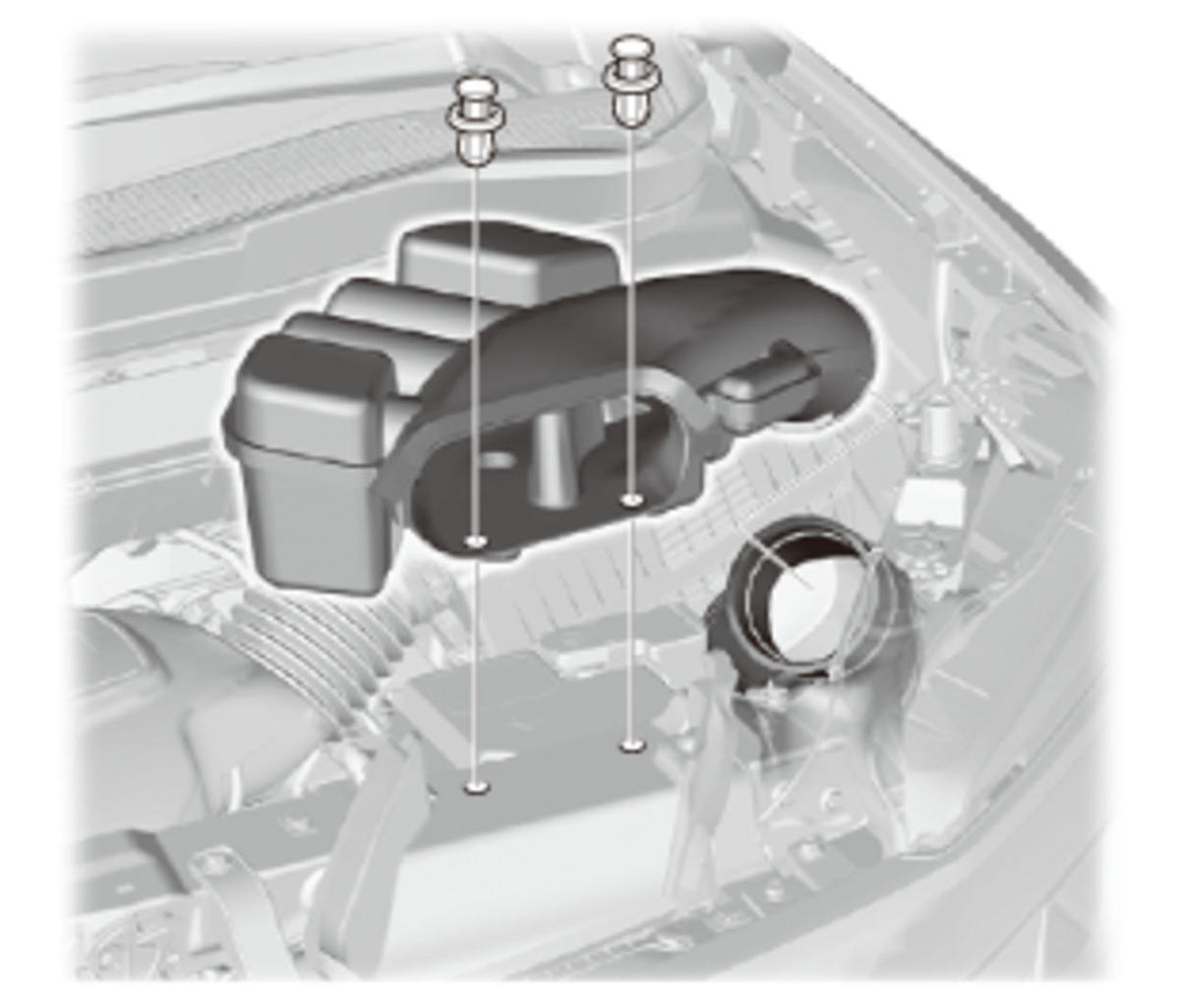

    GHH304705Courtesy of HONDA, U.S.A., INC.
  6. Front Bulkhead Cover - Install

    Torque Converter Oil Seal

  7. Transmission Assembly - Remove - Refer to: Automatic Transmission Removal and Installation(9-Speed A/T), or Automatic Transmission Removal and Installation(6-Speed A/T)

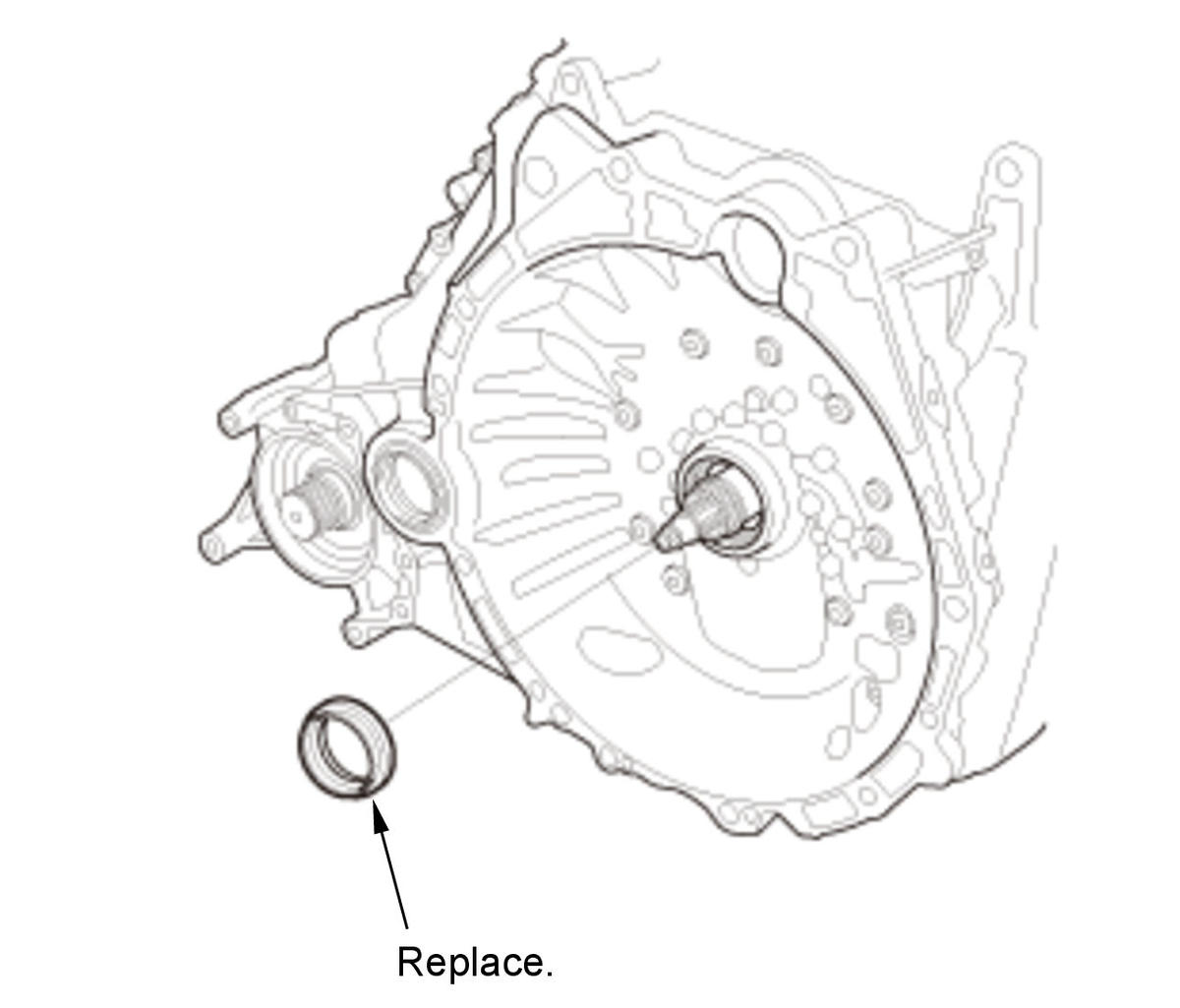

  8. Torque Converter Oil Seal - Remove
    GHH304706Courtesy of HONDA, U.S.A., INC.
  9. Torque Converter Oil Seal - Install

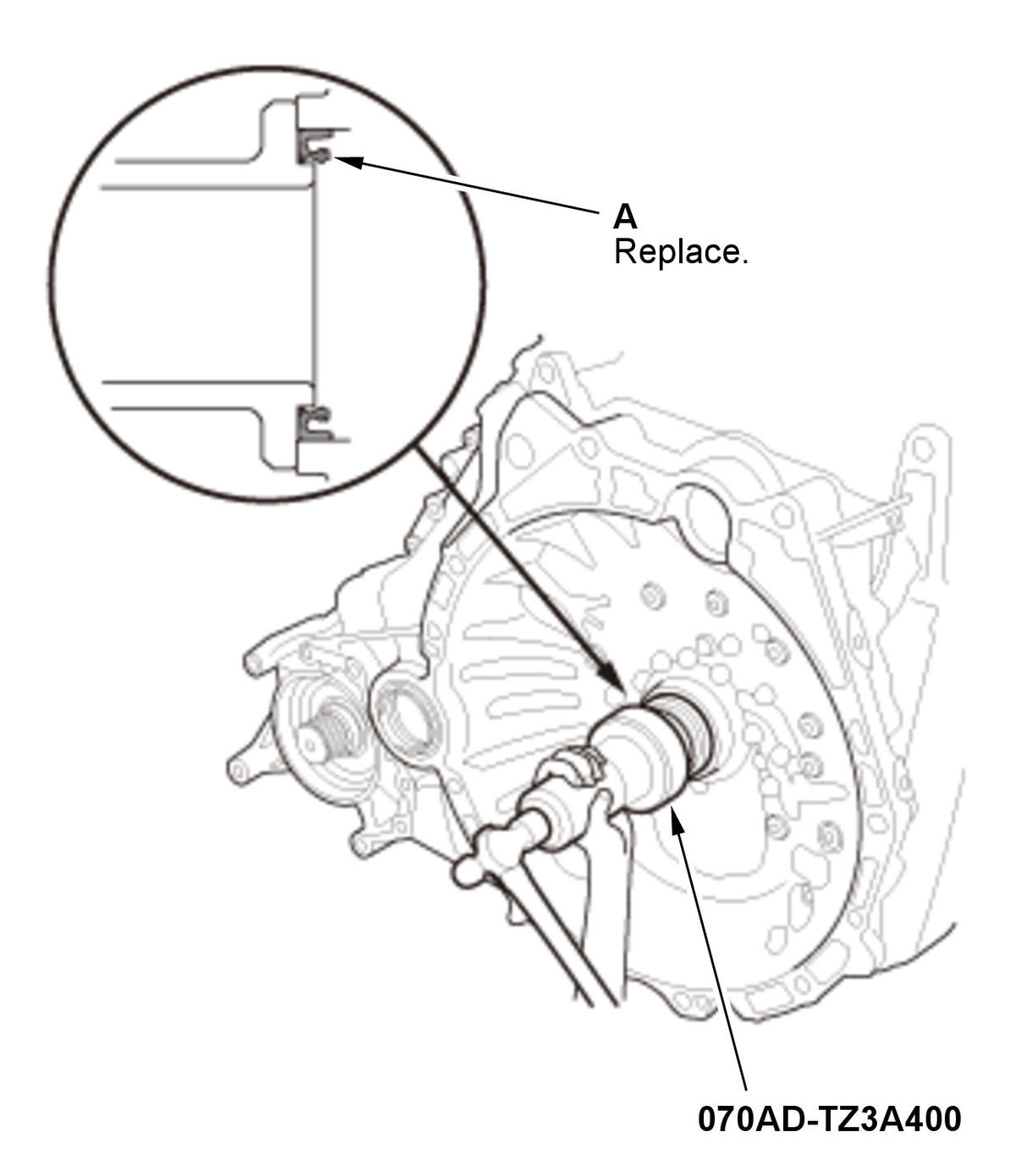

    GHH304707Courtesy of HONDA, U.S.A., INC.
    		 1. Install the torque converter oil seal (A) using oil seal driver D until the oil seal driver has been fully seated.
  10. Transmission Assembly - Install - Refer to: Automatic Transmission Removal and Installation(9-Speed A/T), or Automatic Transmission Removal and Installation(6-Speed A/T)

    Differential Oil Seal (Transmission Housing Side)

  11. Left Driveshaft Inboard Joint - Disconnect
    NOTE:

    Secure the driveshaft to the body with a nylon strap.

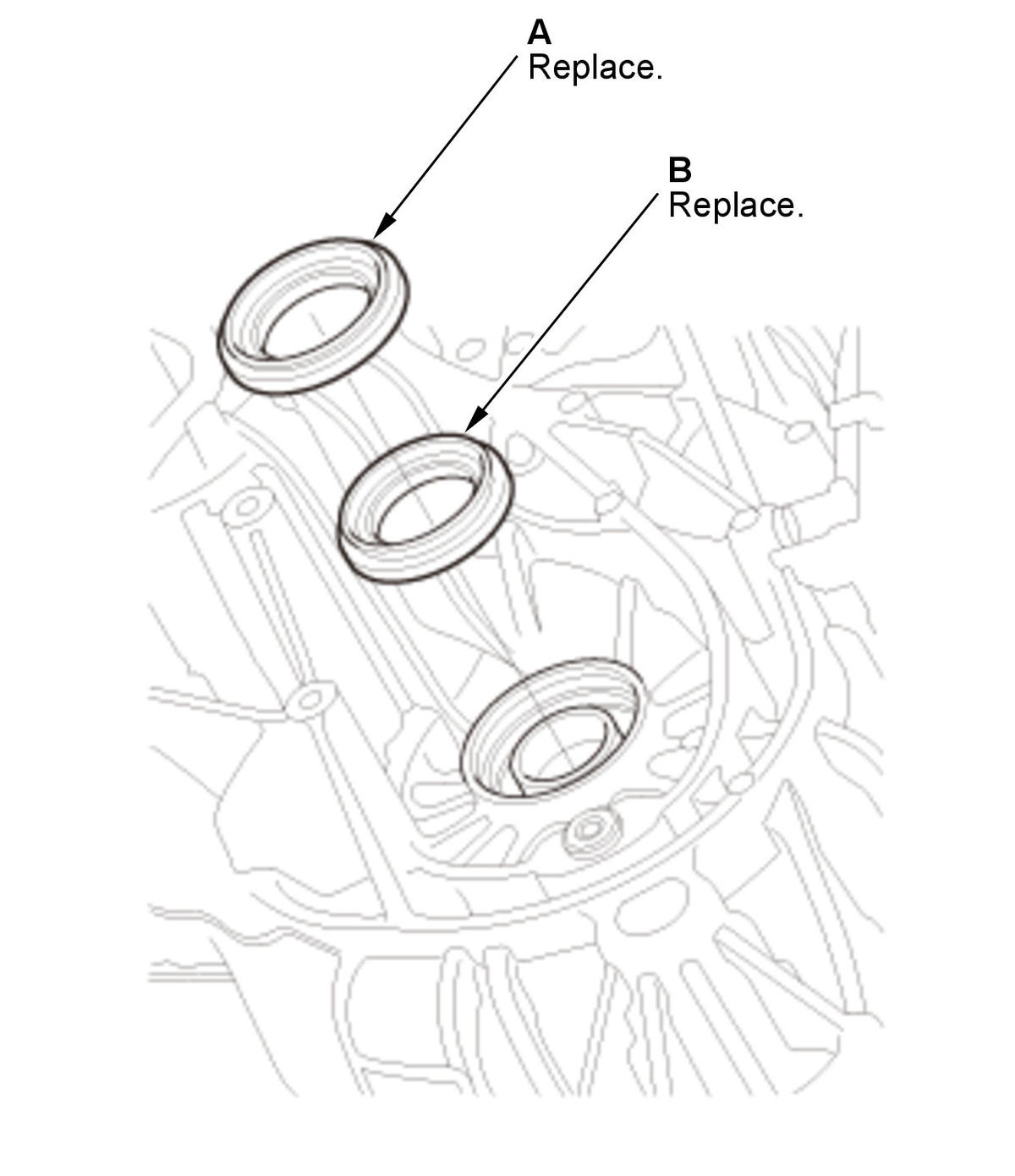

  12. Differential Oil Seal (Transmission Housing Side) - Remove
    GHH304708Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the differential outer oil seal (A).

    2. Remove the differential inner oil seal (B).
  13. Differential Oil Seal (Transmission Housing Side) - Install

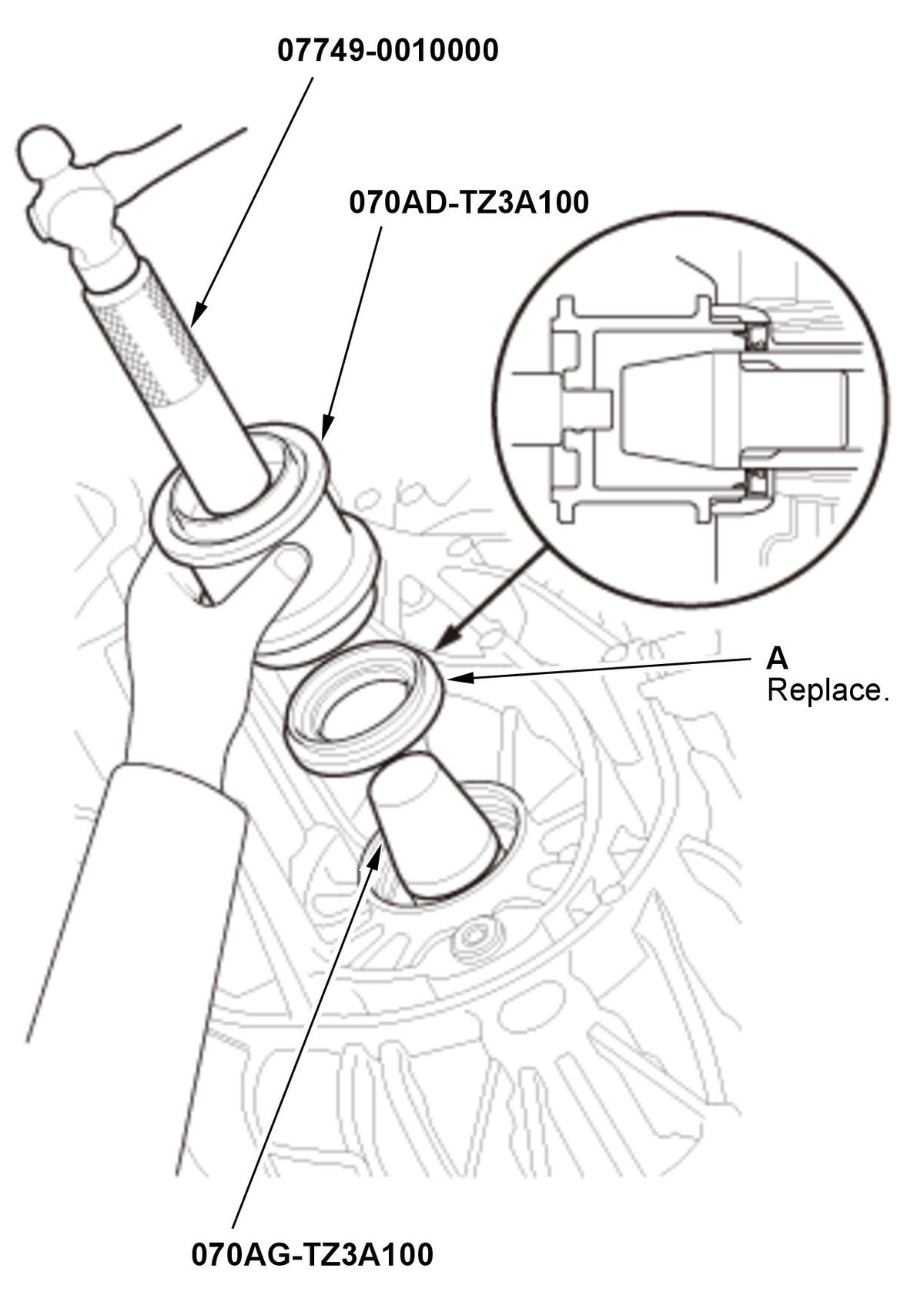

    GHH304709Courtesy of HONDA, U.S.A., INC.
    		 1. Install oil seal installer guide A.

    2. Install the differential inner oil seal (A) using the 15 x 135L driver handle and oil seal driver A (the small diameter side) until the oil seal driver has been fully seated.

    3. Remove oil seal installer guide A.

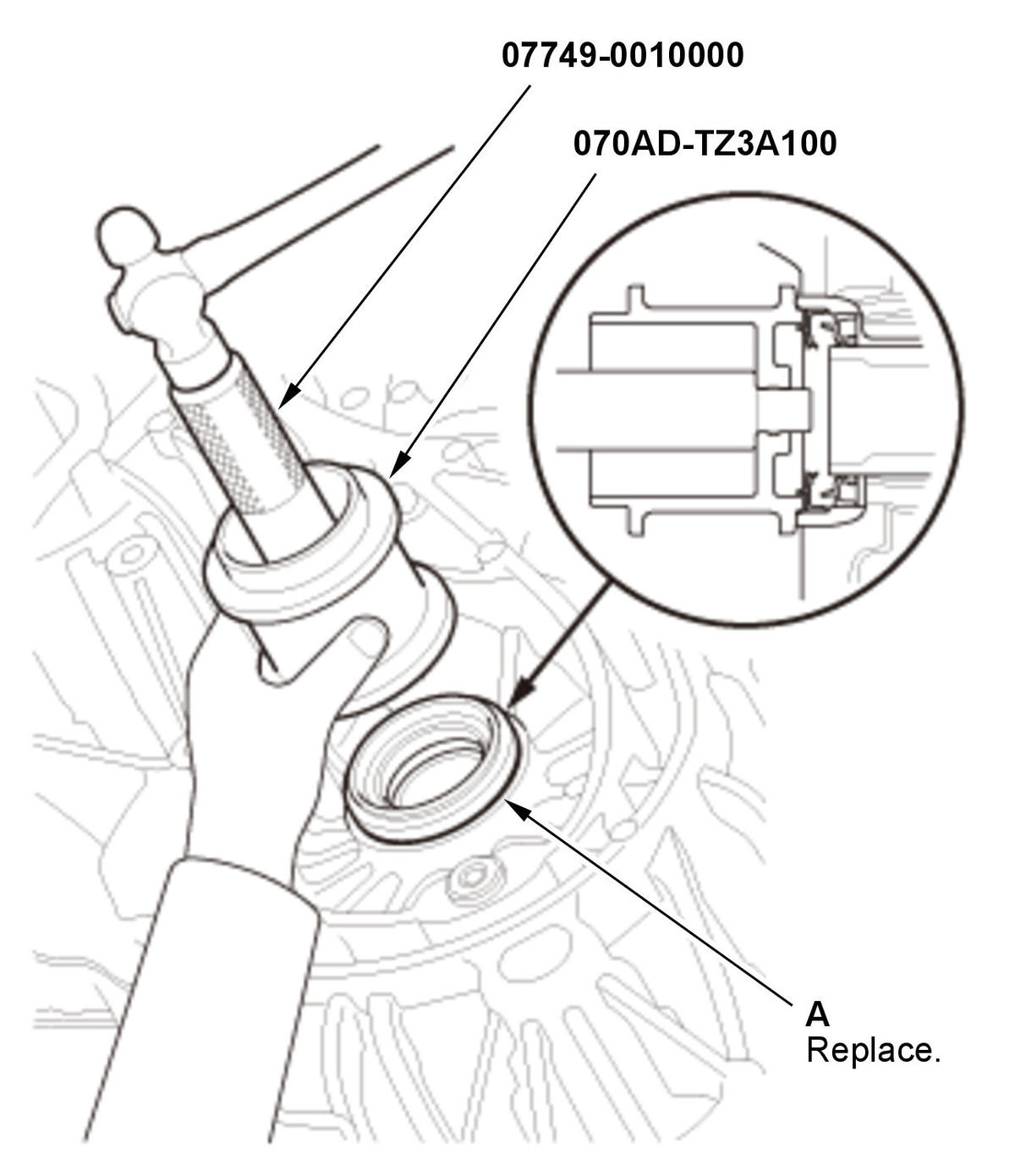

    GHH304710Courtesy of HONDA, U.S.A., INC.
    		 4. Turn oil seal driver A upside down, and install the differential outer oil seal (A) using the 15 x 135L driver handle and oil seal driver A (the major diameter side) until the oil seal driver has been fully seated.
  14. Left Driveshaft Inboard Joint - Connect

    Differential Oil Seal (Torque Converter Housing Side)

  15. Transmission Assembly - Remove - Refer to: Automatic Transmission Removal and Installation(9-Speed A/T), or Automatic Transmission Removal and Installation(6-Speed A/T)
  16. Differential Oil Seal (Torque Converter Housing Side) - Remove

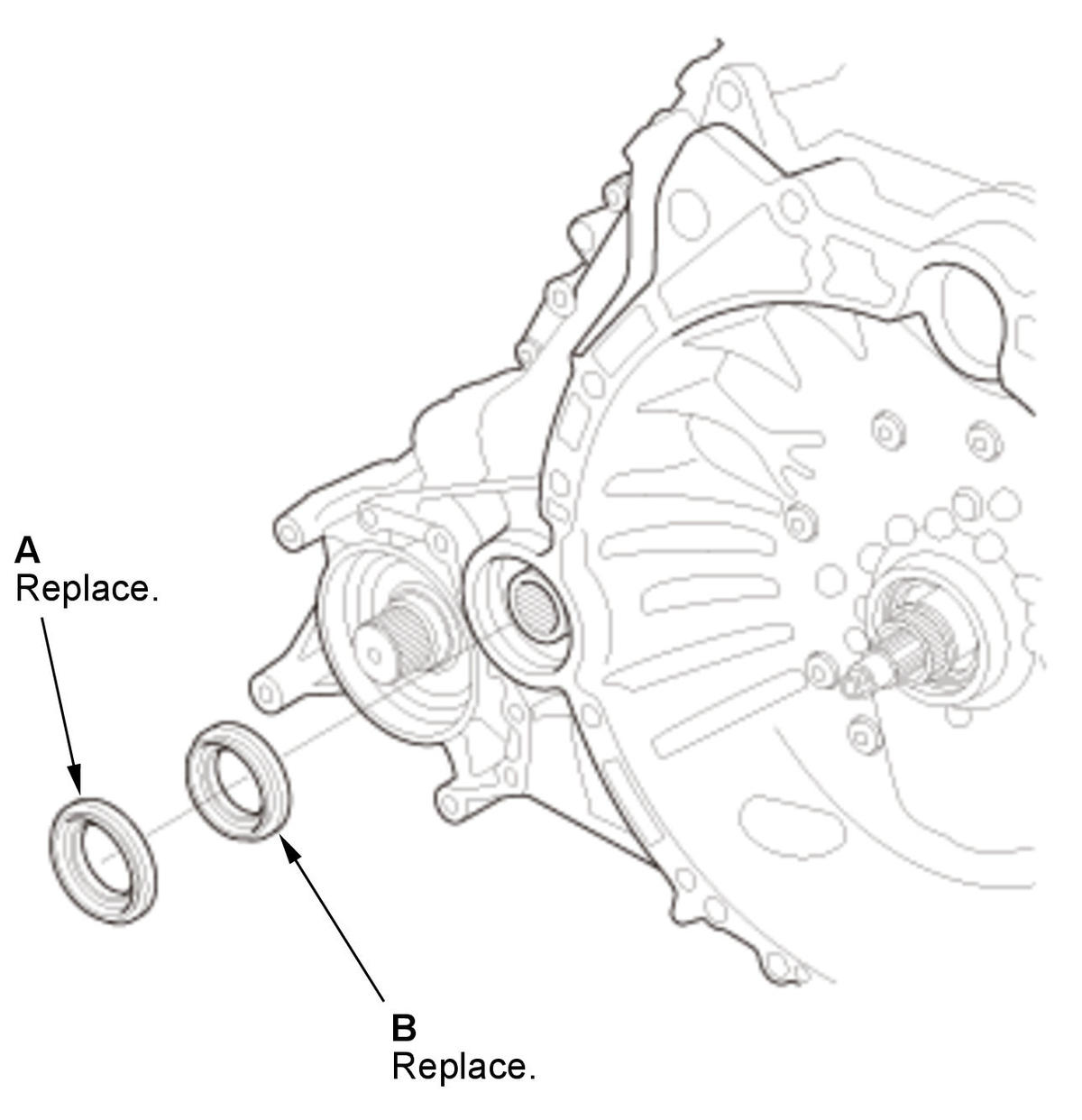

    GHH304711Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the differential outer oil seal (A).

    2. Remove the differential inner oil seal (B).
  17. Differential Oil Seal (Torque Converter Housing Side) - Install

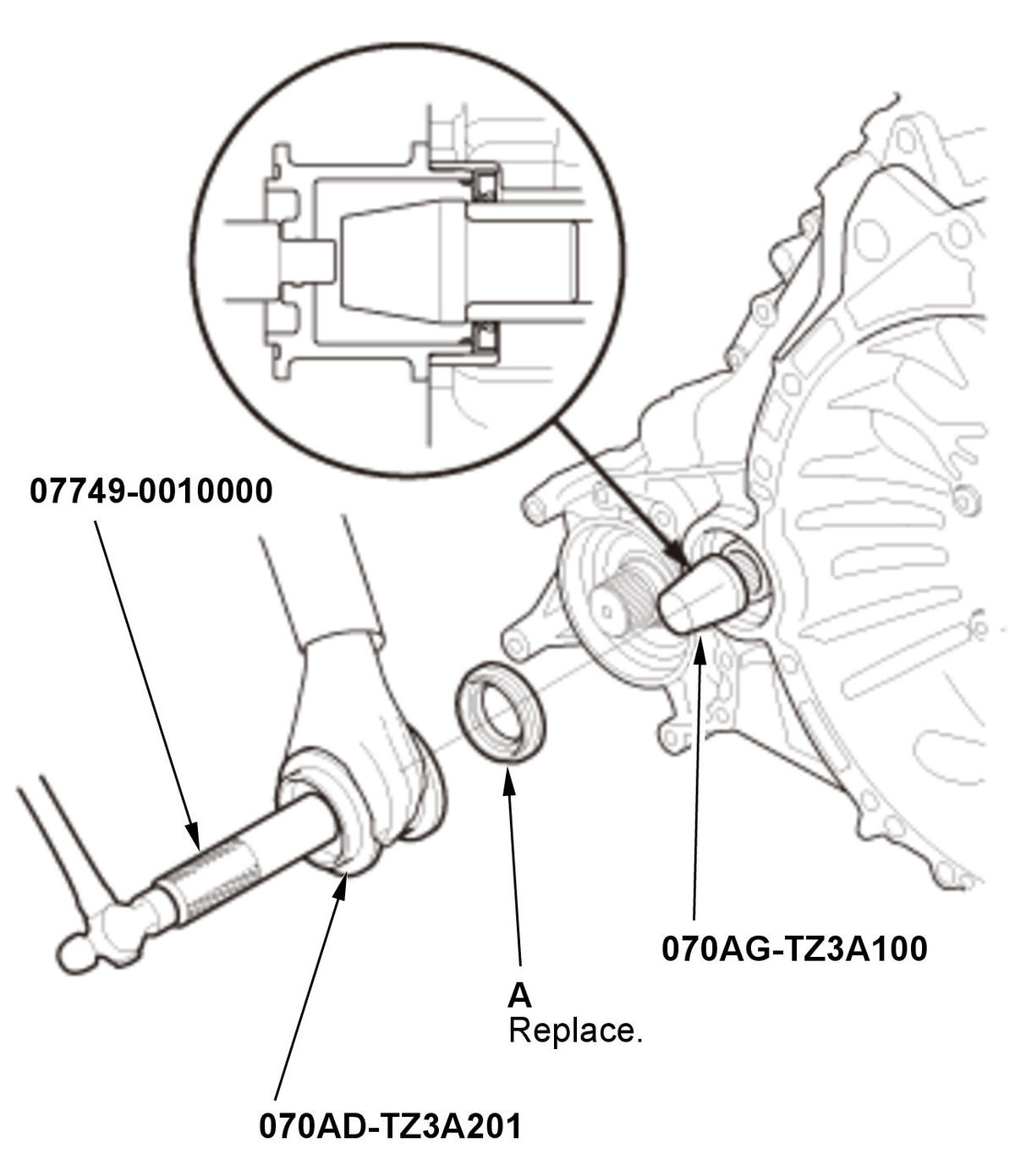

    GHH304712Courtesy of HONDA, U.S.A., INC.
    		 1. Install oil seal installer guide A.

    2. Install the differential inner oil seal (A) using the 15 x 135L driver handle and oil seal driver B (the major diameter side) until the oil seal driver has been fully seated.

    3. Remove oil seal installer guide A.

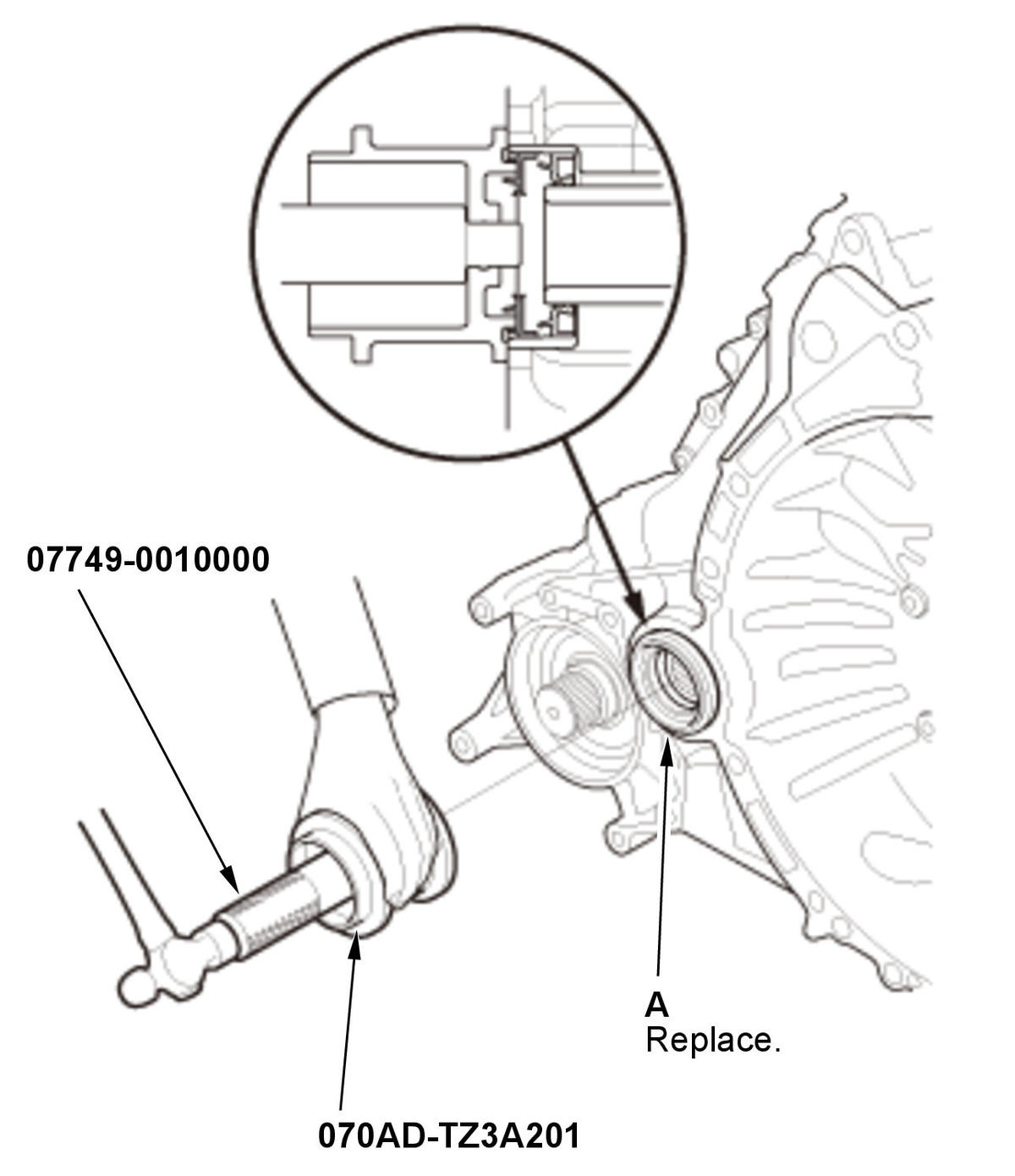

    GHH304713Courtesy of HONDA, U.S.A., INC.
    		 4. Turn oil seal driver B upside down, and install the differential outer oil seal (A) using the 15 x 135L driver handle and oil seal driver B (the small diameter side) until the oil seal driver has been fully seated.
  18. Transmission Assembly - Install - Refer to: Automatic Transmission Removal and Installation(9-Speed A/T), or Automatic Transmission Removal and Installation(6-Speed A/T)

    Transfer Output Shaft Oil Seal (With AWD)

  19. ATF - Drain - Refer to: ATF Replacement(9-Speed A/T),  or ATF Replacement(6-Speed A/T)
  20. Transfer Assembly - Remove - Refer to: Transfer Assembly Removal and Installation(9-Speed A/T), or Transfer Assembly Removal and Installation(6-Speed A/T)

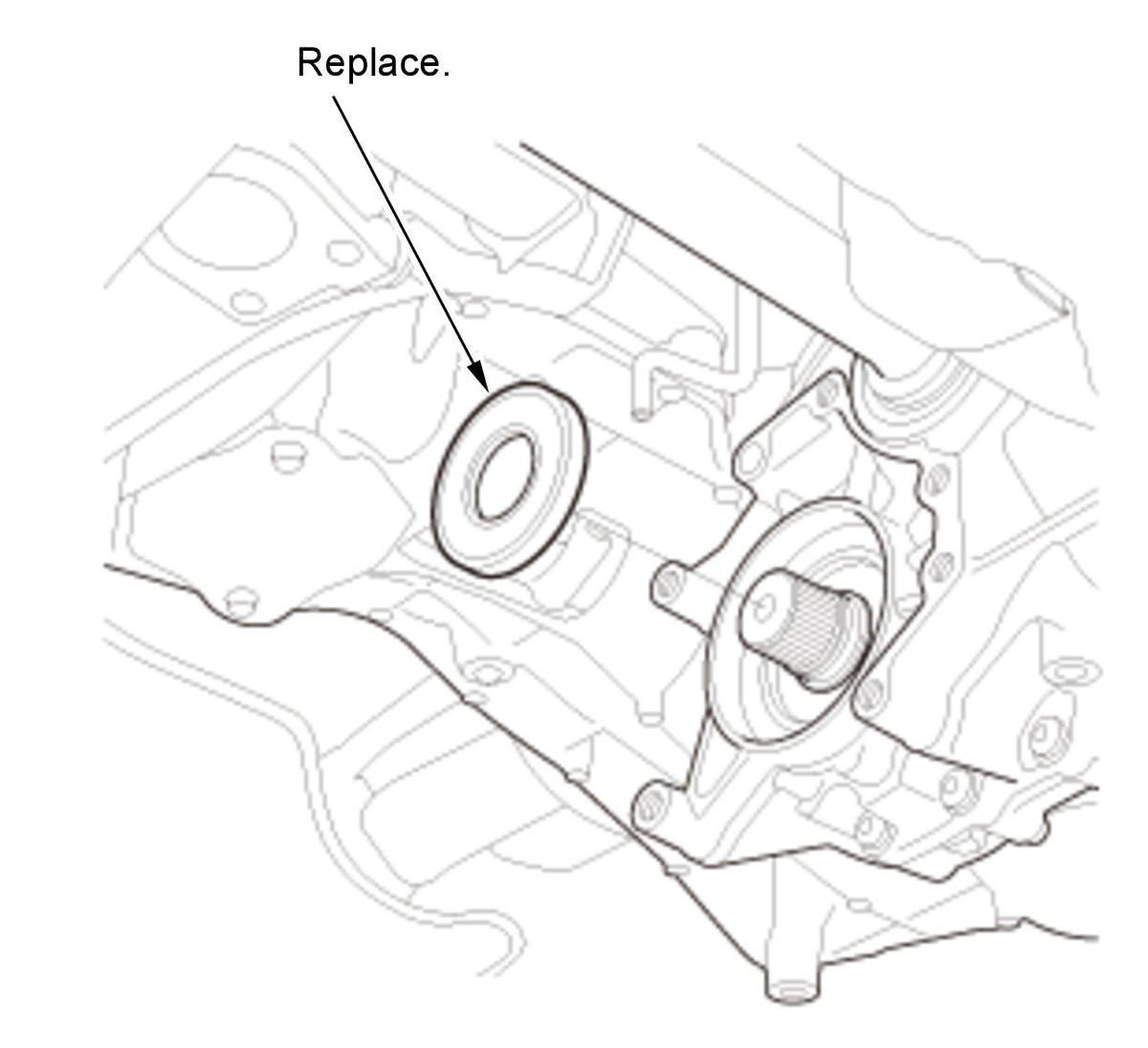

  21. Transfer Output Shaft Oil Seal - Remove
    GHH304714Courtesy of HONDA, U.S.A., INC.
  22. Transfer Output Shaft Oil Seal - Install

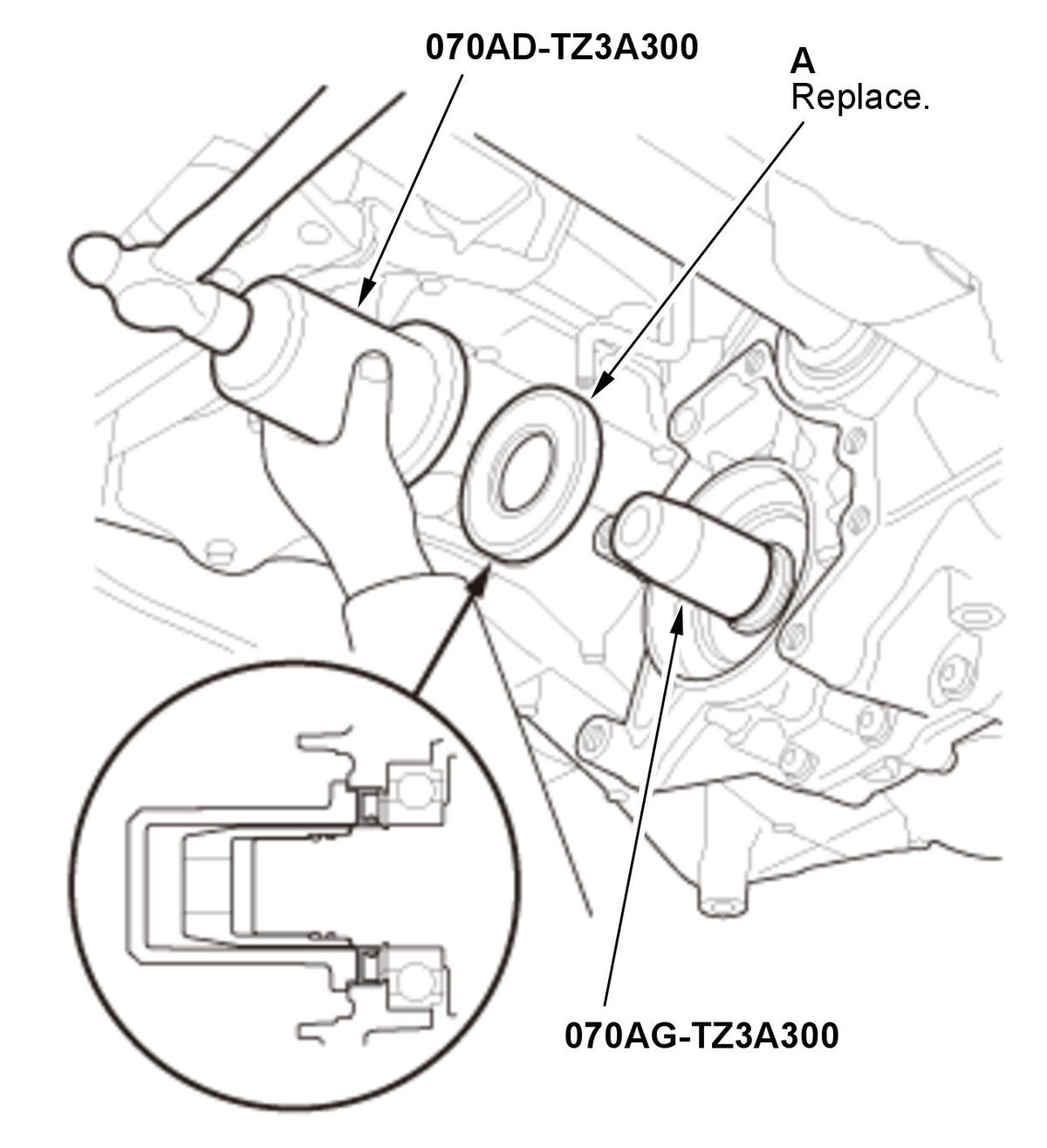

    GHH304715Courtesy of HONDA, U.S.A., INC.
    		 1. Install oil seal installer guide C.

    2. Install the transfer output shaft oil seal (A) using oil seal driver C until the oil seal driver has been fully seated.

    3. Remove oil seal installer guide C.
  23. Transfer Assembly - Install - Refer to: Transfer Assembly Removal and Installation(9-Speed A/T), or Transfer Assembly Removal and Installation(6-Speed A/T)
  24. ATF - Refill - Refer to: ATF Replacement(9-Speed A/T),  or ATF Replacement(6-Speed A/T)
