DTC : P0560: General Description

Courtesy of HONDA, U.S.A., INC.

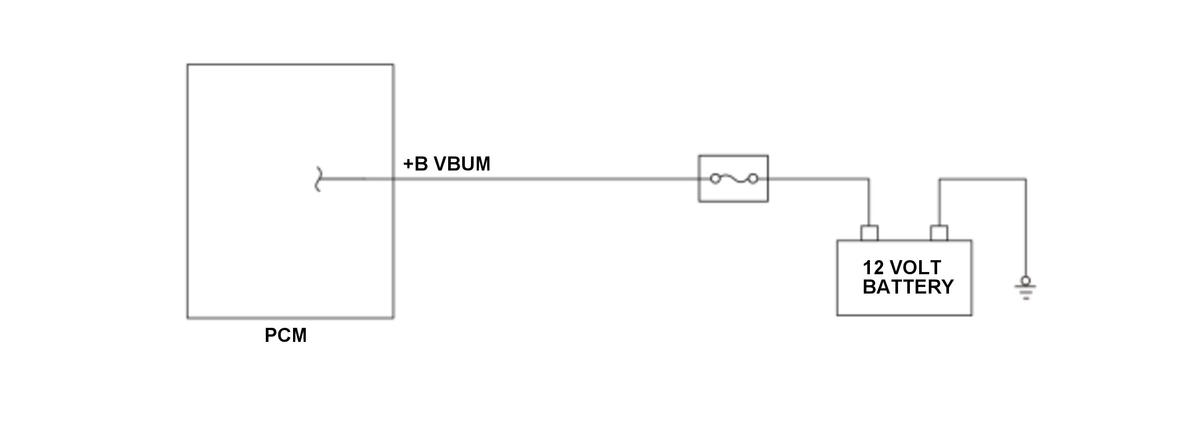

The powertrain control module (PCM) constantly draws power from +B VBUM to maintain the back-up ram. If the +B VBUM terminal voltage is a set value for a specified time, the PCM detects a malfunction and stores a DTC.
