Removal and Installation

  1. Sealing Bolt and Washer - Remove

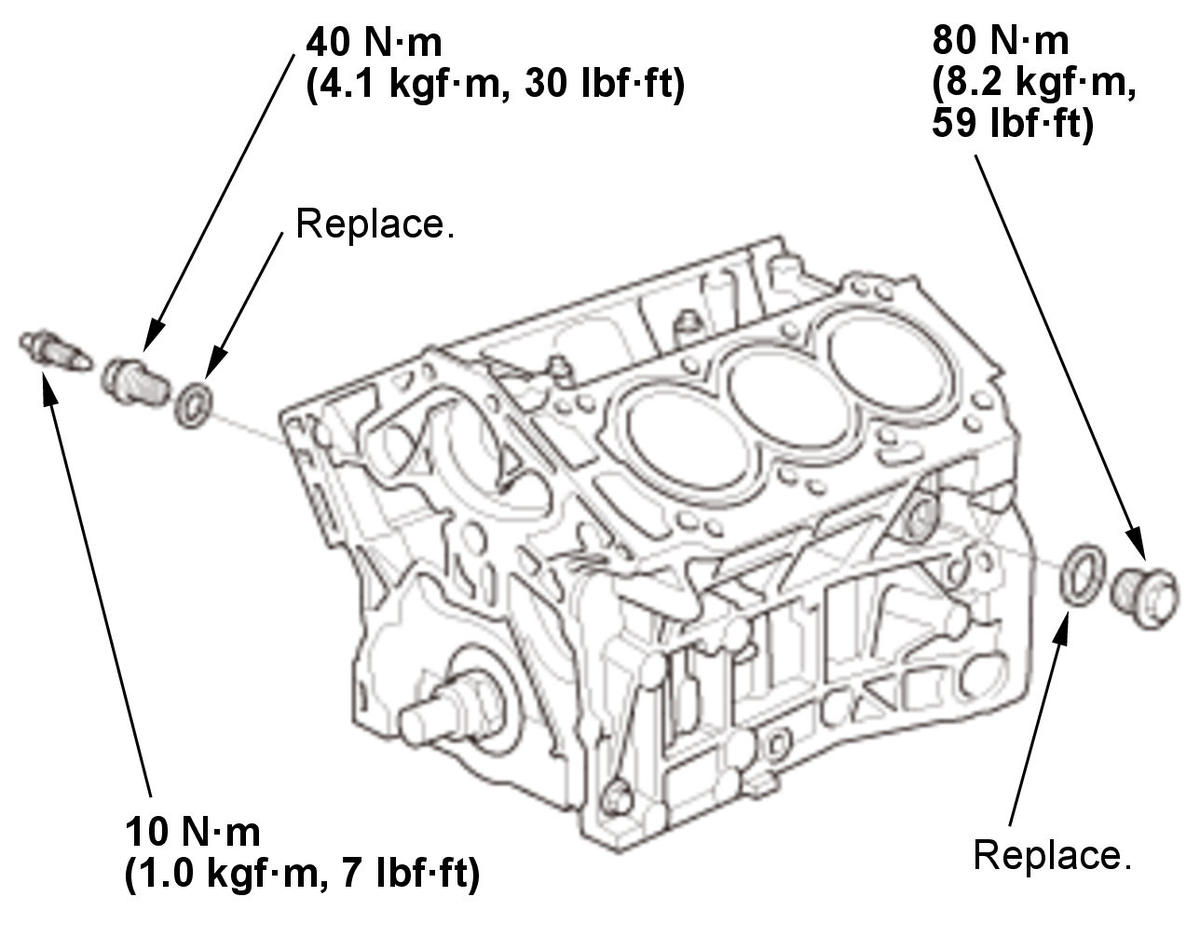

    Fig 1: Sealing Bolt and Washer With Torque Specifications
    GHH308483Courtesy of HONDA, U.S.A., INC.
  2. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
