Windows / Glass - Testing & Troubleshooting
>>
Description
>>

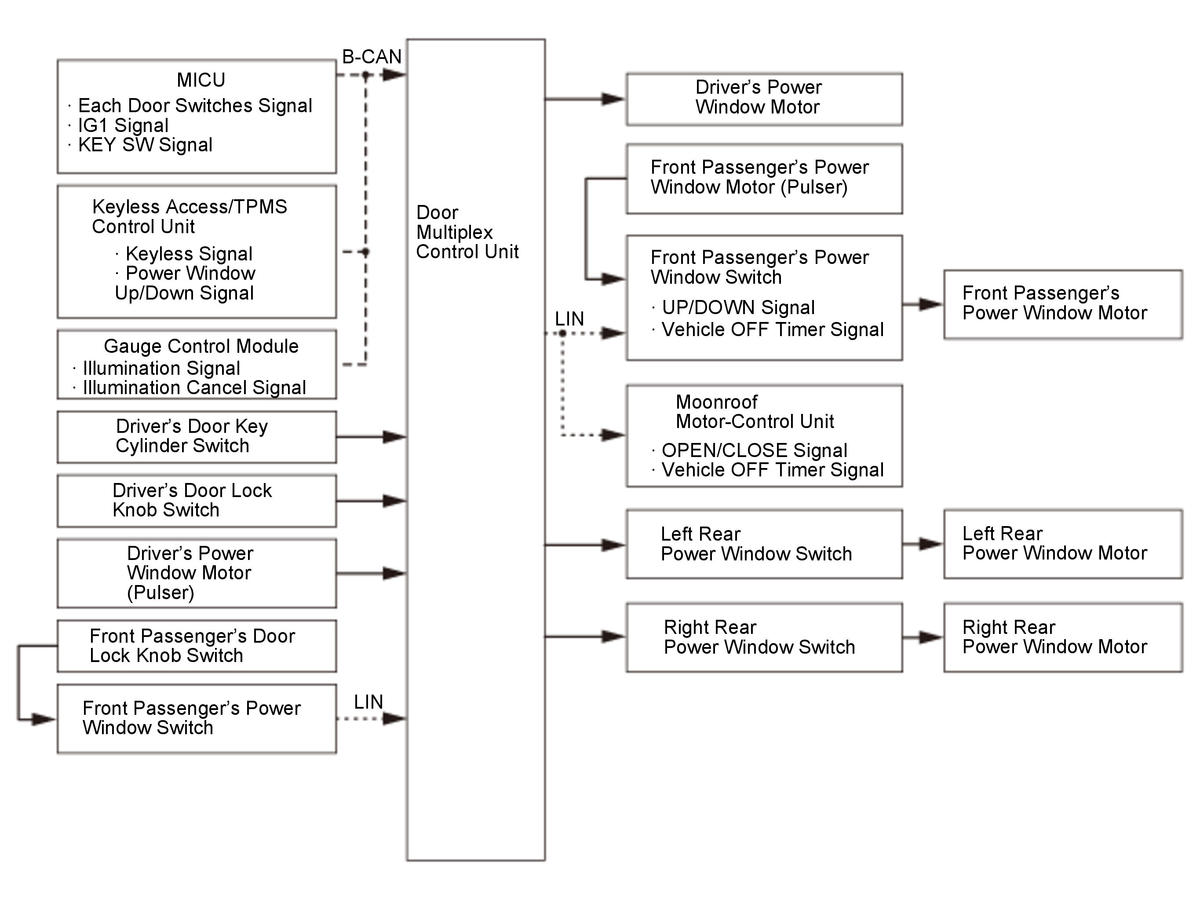

System Diagram
System Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
