HomeLink Unit Connector for Inputs and Outputs

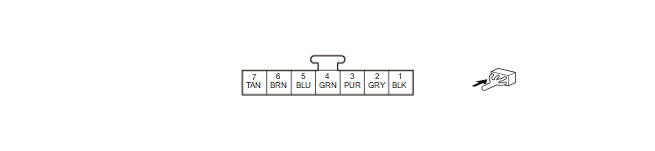

HomeLink Unit 7P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B BACK UP | Power source for homelink control unit | About battery voltage at all times |
| 2 | ILLUMI+ | Detects ILLUMI+ signal | With parking lights are OFF: less than 0.2 VWith parking lights are ON: about battery voltage |
| 3 | OEC- | Outputs OEC- signal | --- |
| 4 | OEC+ | Outputs OEC+ signal | --- |
| 5 | BACK LT | Detects BACK LT signal | With vehicle in ON mode and R position/mode: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 6 | GND | Ground for homelink control unit | Less than 0.2 V at all times |
| 7 | IG2 | IG2 power source | With vehicle in ON mode: about battery voltage |
