Keyless/Power Door Locks/Security System Component Location Index

For the Keyless Access System, refer to Keyless Access System, Component Location Index .For relationships between signals in a system, refer to System Diagram - Refer to: Keyless/Power Door Locks/Security System Description - Components  or Keyless/Power Door Locks/Security System Description - Control/Function  or Keyless/Power Door Locks/Security System Description - Overview  or Keyless/Power Door Locks/Security System Description - System Diagram .

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

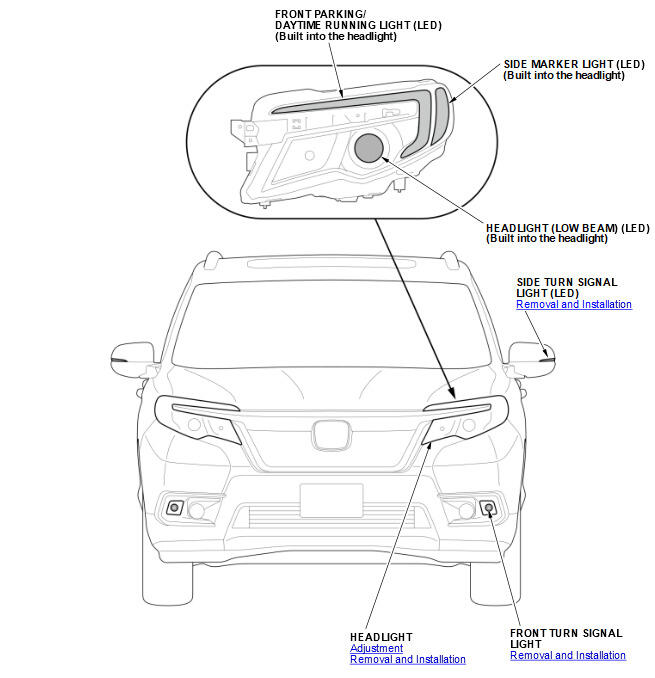

With LED Headlight (Low Beam)

Courtesy of HONDA, U.S.A., INC.

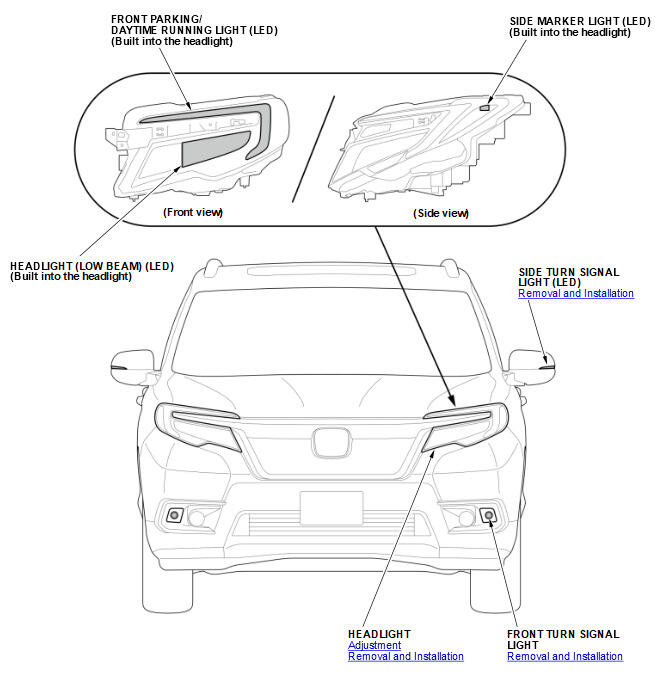

With LED Headlight (High/Low Beam)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
