ANC/Active Sound Control Unit Connector for Inputs and Outputs

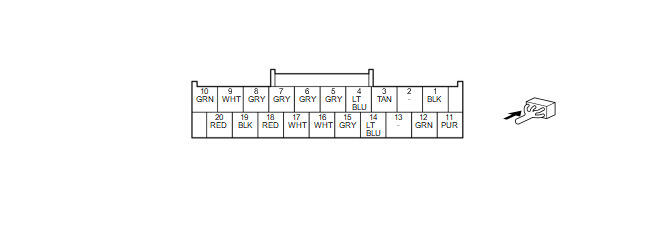

ANC/Active Sound Control Unit 20P Connector (female terminals)Display Audio Type
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | SGND | Ground for ANC/active sound control unit (G401) |
| 2 | Not used | --- |
| 3 | RADIO SW+B | Inputs signal for ANC/active sound control unit switching on/off |
| 4 | F-CAN B_H | Communication signal |
| 5 | F-CAN B_L | Communication signal |
| 6 | R MIC SH | Shield for terminal No. 17 |
| 7 | F MIC SH | Shield for terminal No. 18 |
| 8 | ANC SH | Shield for terminals No. 9, No. 10, No. 19, and No. 20 |
| 9 | ANC R- | Outputs noise cancelling signal |
| 10 | ANC F- | Outputs noise cancelling signal |
| 11 | +B BACKUP(DC/DC) | Continuous power source |
| 12 | IG1 METER(DC/DC) | IG1 power source |
| 13 | Not used | --- |
| 14 | K-LINE | Detects scan tool signal (serial data) |
| 15 | AUD F MIX GND | Shield for terminal No. 16 |
| 16 | AUD F MIX | Inputs audio mixing signal for front channels |
| 17 | R MIC+ | Inputs sound signal from rear ANC/active sound control microphone |
| 18 | F MIC+ | Inputs sound signal from front ANC/active sound control microphone |
| 19 | ANC R+ | Outputs noise cancelling signal |
| 20 | ANC F+ | Outputs noise cancelling signal |

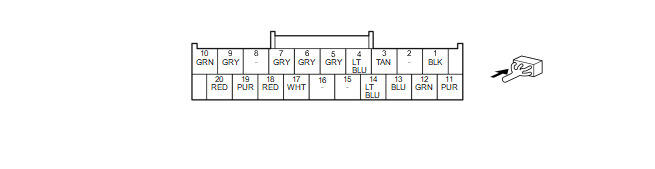

ANC/Active Sound Control Unit 20P Connector (female terminals)Color Audio Type
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | SGND | Ground for ANC/active sound control unit (G401) |
| 2 | Not used | --- |
| 3 | RADIO SW+B | Inputs signal for ANC/active sound control unit switching on/off |
| 4 | F-CAN B_H | F-CAN bus communication signal |
| 5 | F-CAN B_L | F-CAN bus communication signal |
| 6 | R MIC SH | Shield for terminal No. 17 |
| 7 | F MIC SH | Shield for terminal No. 18 |
| 8 | Not used | --- |
| 9 | ANC R- | Outputs noise cancelling signal |
| 10 | ANC F- | Outputs noise cancelling signal |
| 11 | +B BACKUP(DC/DC) | Continuous power source |
| 12 | IG1 METER(DC/DC) | IG1 power source |
| 13 | ANC CK2 | Detects ANC test signal |
| 14 | K-LINE | Detects scan tool signal (serial data) |
| 15 | Not used | --- |
| 16 | Not used | --- |
| 17 | R MIC+ | Inputs sound signal from rear ANC/active sound control microphone |
| 18 | F MIC+ | Inputs sound signal from front ANC/active sound control microphone |
| 19 | ANC R+ | Outputs noise cancelling signal |
| 20 | ANC F+ | Outputs noise cancelling signal |
