Idle Stop Off Switch Removal, Installation, and Test: Test

  1. Center Switch Trim - Remove

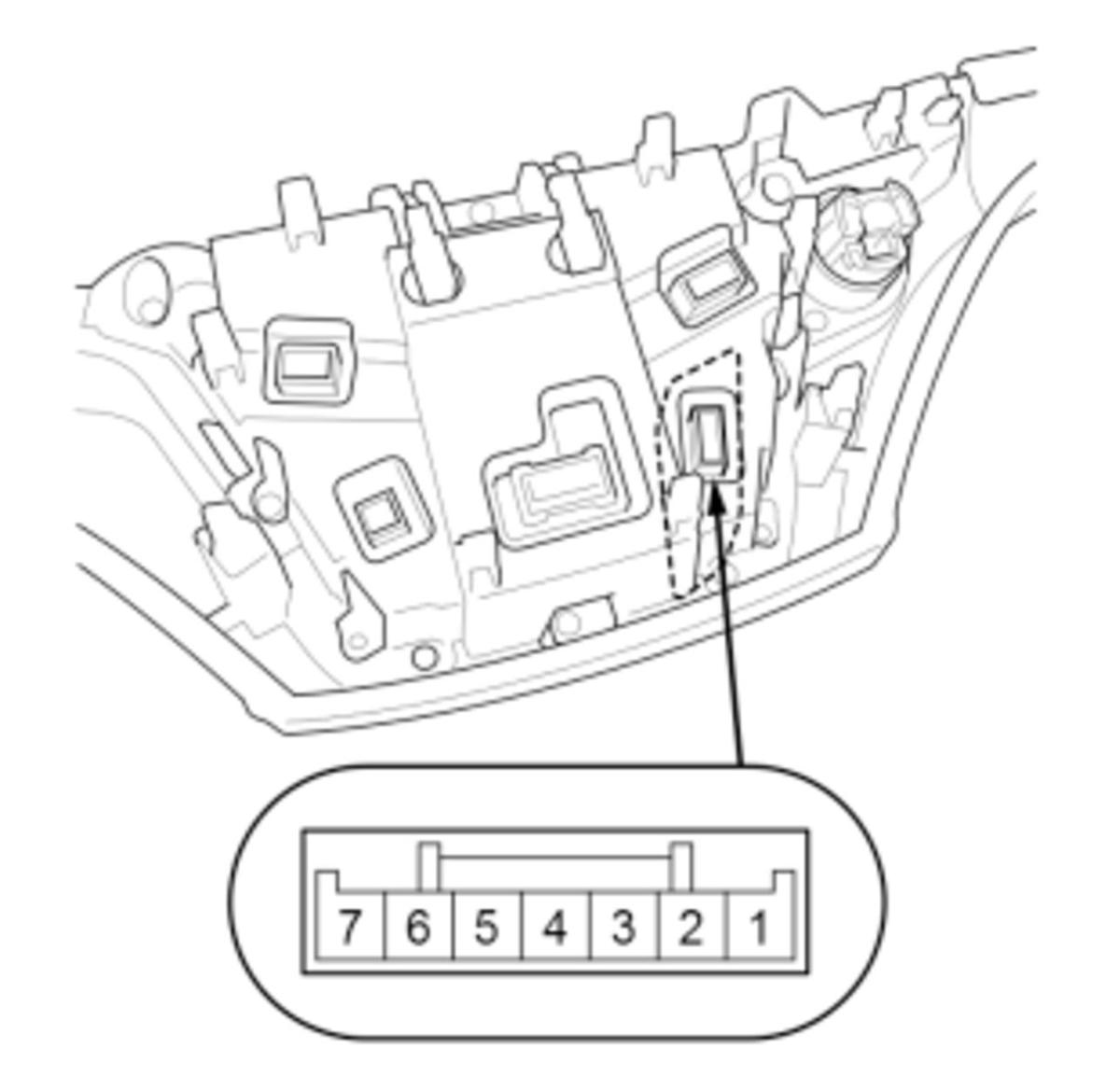

  2. Idle Stop Off Switch - Test
    GHH444133GHH444134Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH444133GHH444134Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

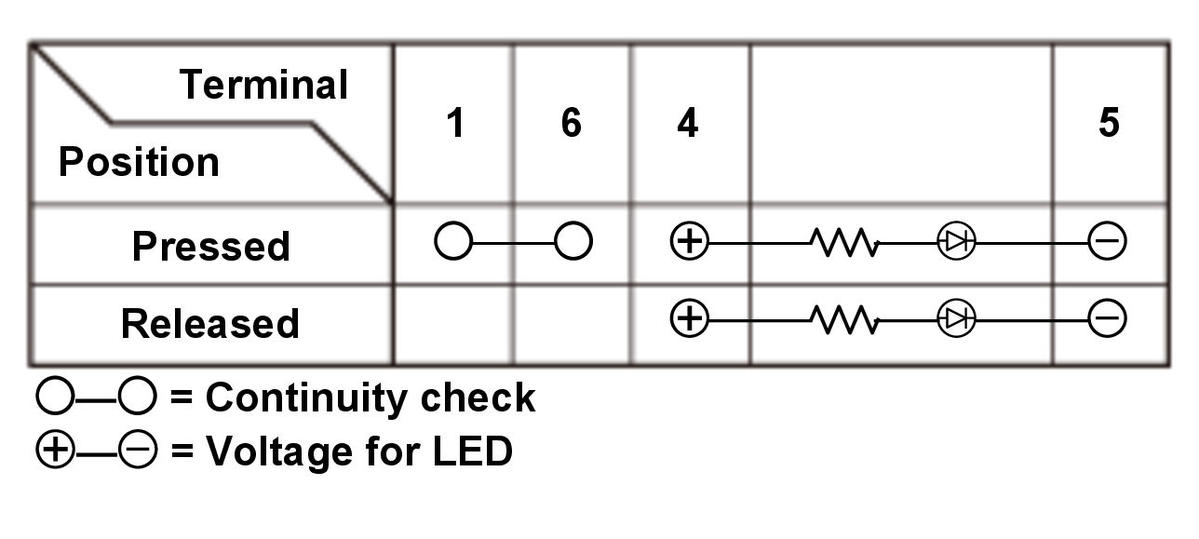

    		 1. Check the idle stop off switch according to the table in illustration.
    NOTE:
    • When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
    • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

    2. If the switch does not work as described in the table, replace the switch.
