VSA Modulator-Control Unit Removal and Installation: Removal

NOTE:

• Review the Service Precautions before doing repairs or service .
• Do not damage or drop the VSA modulator-control unit as it is sensitive.
• Do not use power tools when removing the VSA modulator-control unit.
• When replacing the VSA modulator-control unit, do the keyless access system registration.

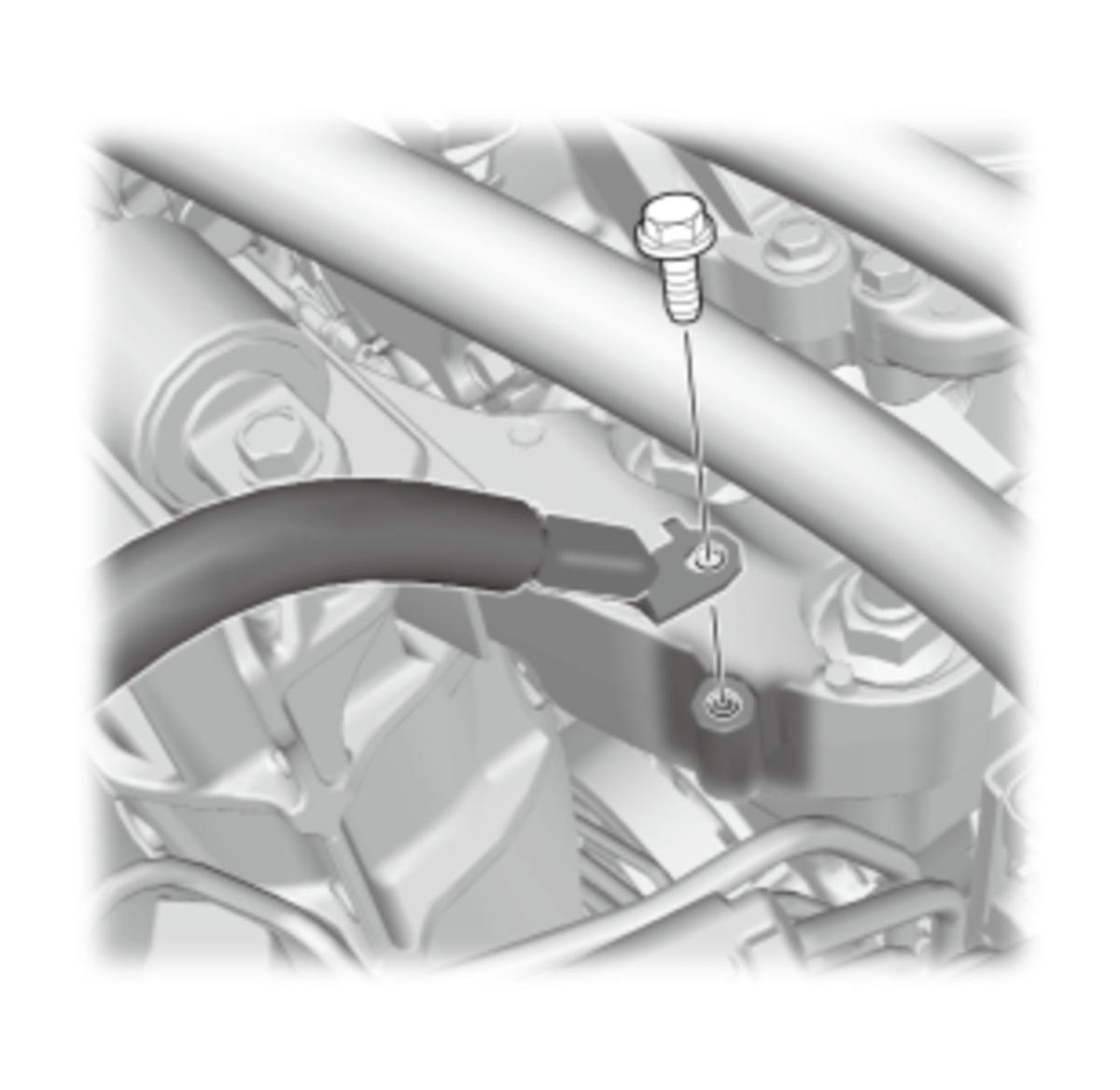

1. Ground Cable - Disconnect

   Courtesy of HONDA, U.S.A., INC.

2. PCM - Remove

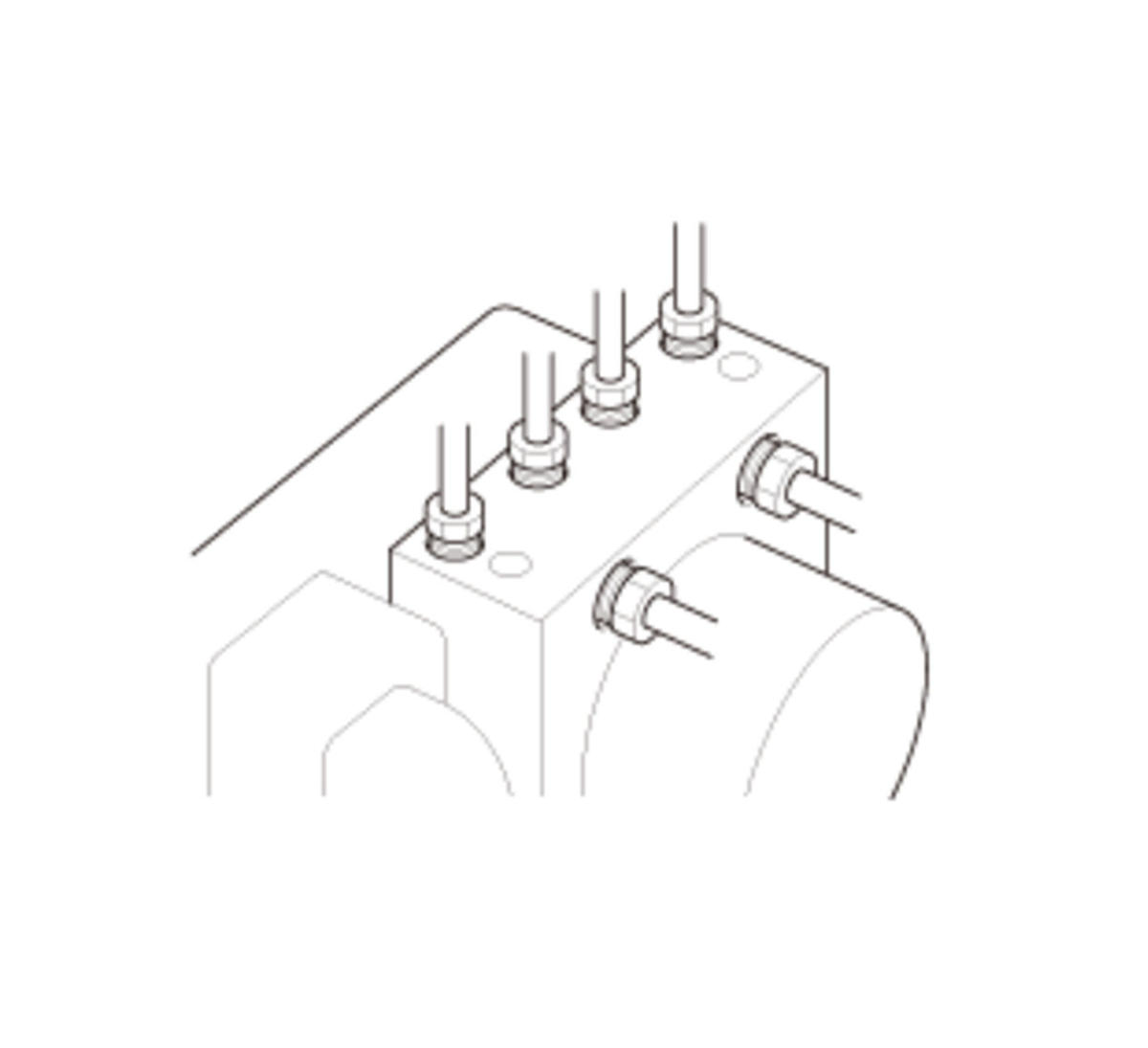

3. Brake Line - Disconnect

   Courtesy of HONDA, U.S.A., INC.

4. VSA Modulator-Control Unit - Remove

   Courtesy of HONDA, U.S.A., INC.

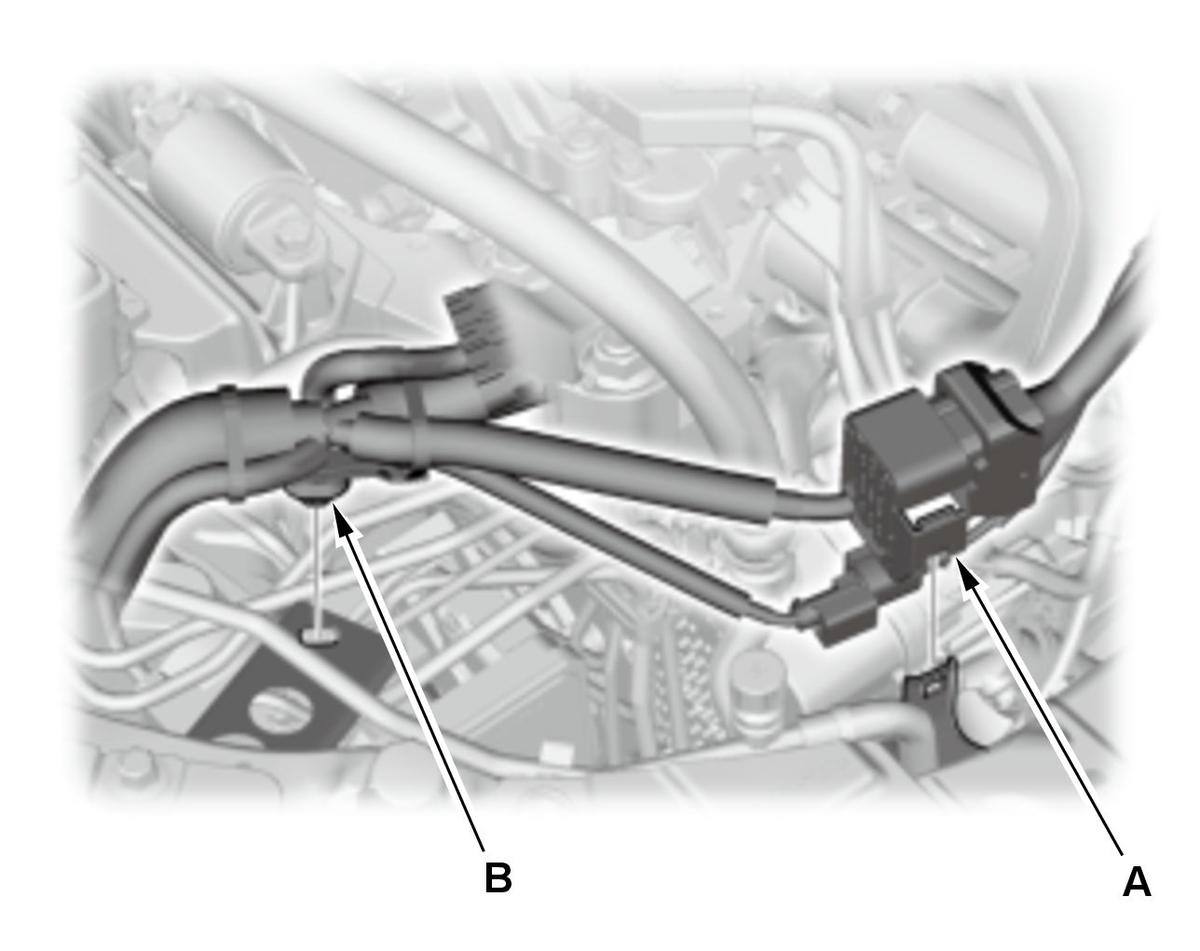

   1. Remove the harness clamp (A), and the harness clip (B).

   Courtesy of HONDA, U.S.A., INC.

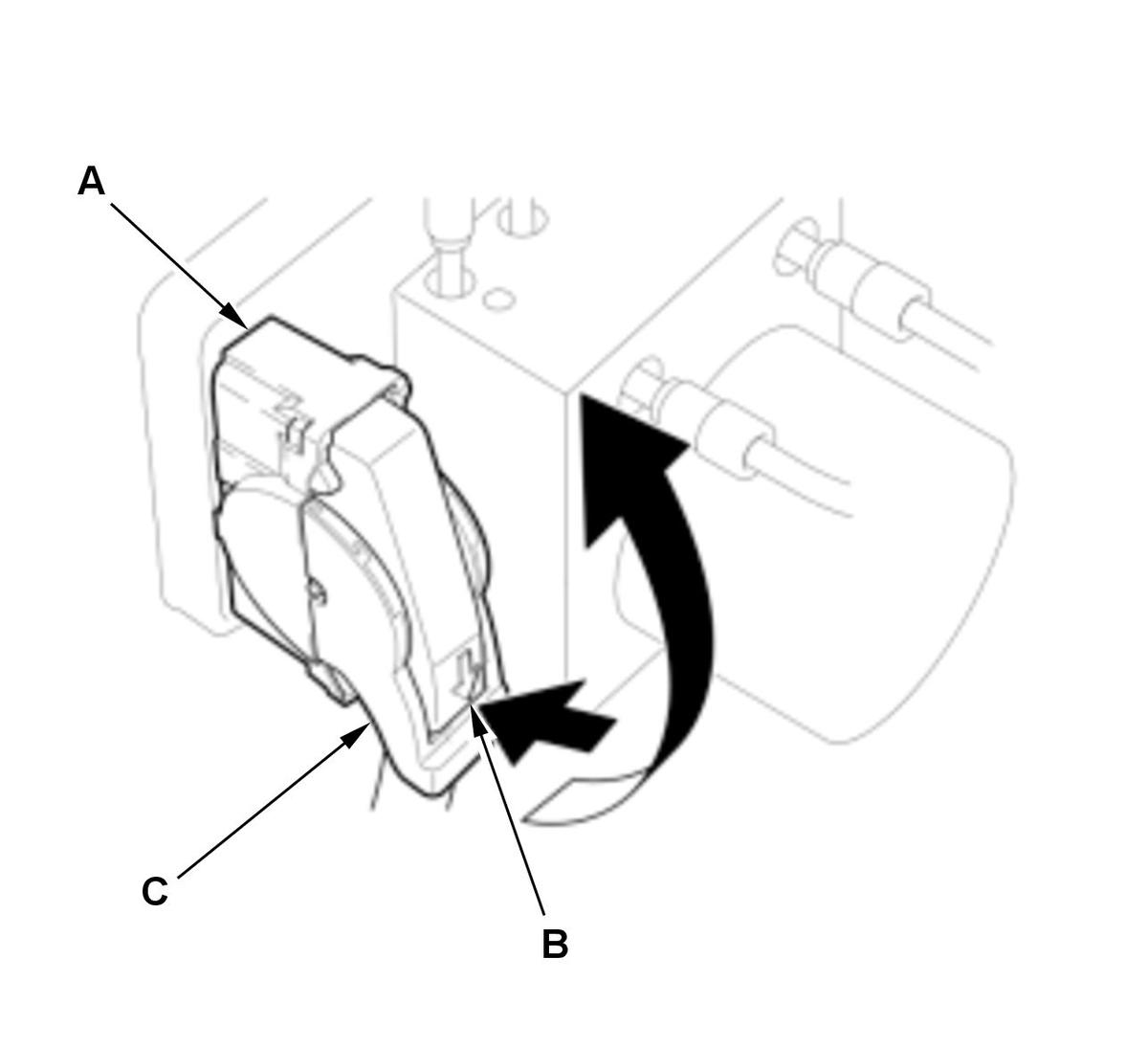

   2. Disconnect the connector (A) by pushing the lock (B) and pulling up the lever (C); the connector disconnects itself.

   Courtesy of HONDA, U.S.A., INC.

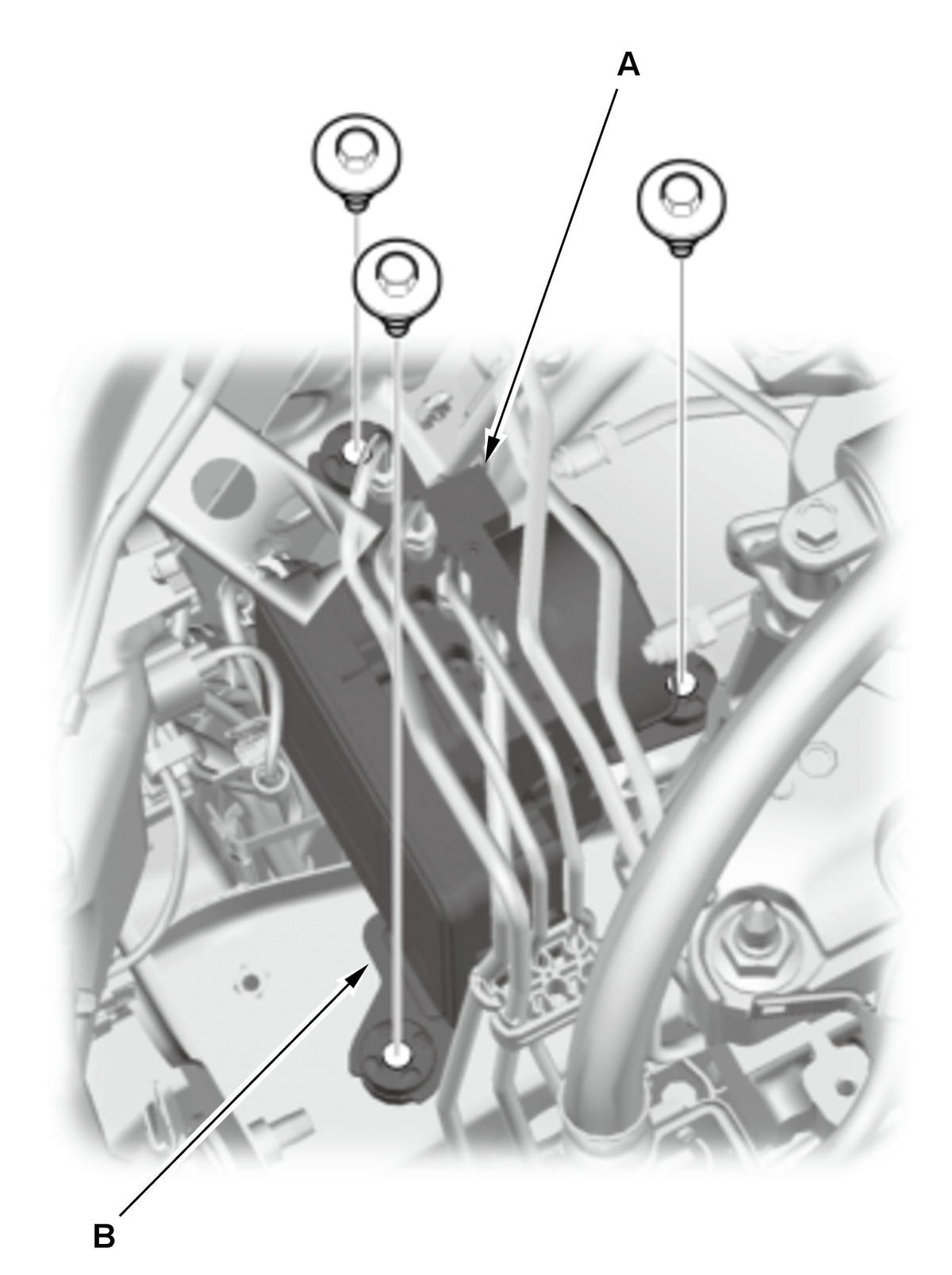

   3. Remove the VSA modulator-control unit (A) with the bracket (B).

5. VSA Modulator-Control Unit Bracket - Remove

   Courtesy of HONDA, U.S.A., INC.

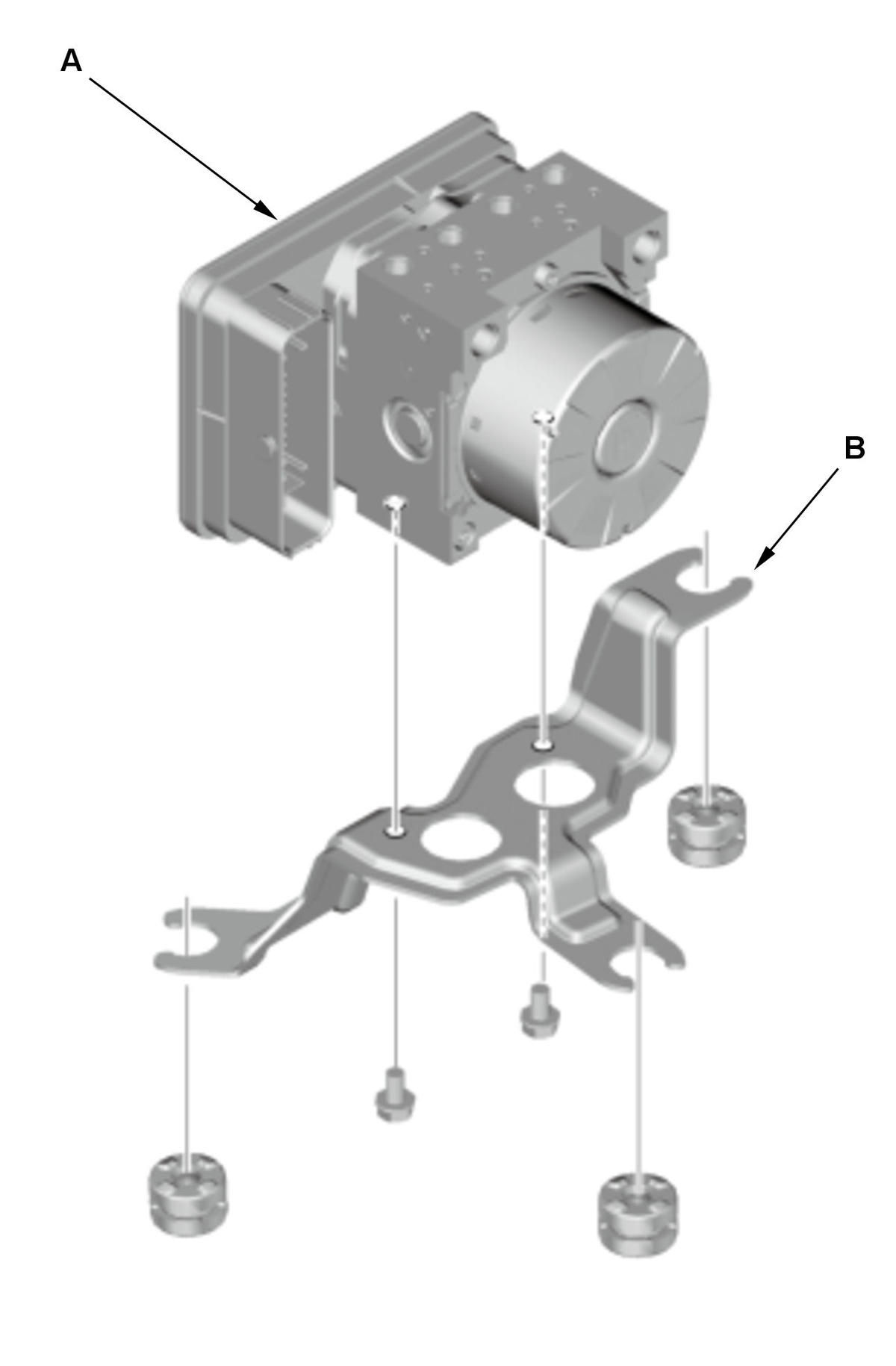

   1. Remove the VSA modulator-control unit (A) from the modulator bracket (B).
