DTC P1DE5: General Description

Courtesy of HONDA, U.S.A., INC.

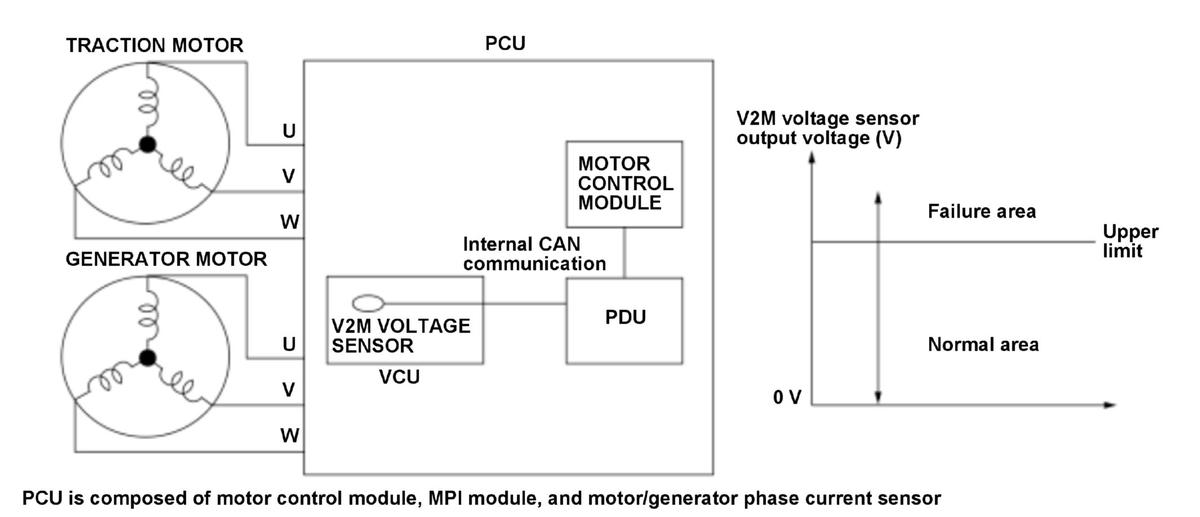

The power control unit (PCU) controls the voltage control unit (VCU) output based on the V2M voltage sensor signals. If the signal voltage from the V2M voltage sensor exceeds a set value for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
