DTC P1A57: General Description

Courtesy of HONDA, U.S.A., INC.

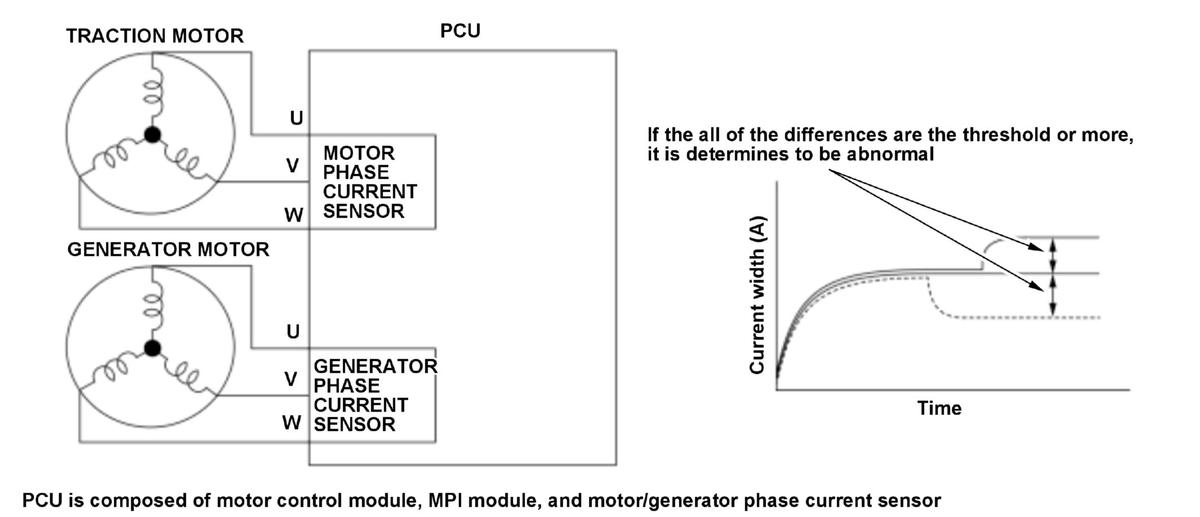

The power control unit (PCU) controls the motor output based on the motor phase current sensor signals. If the difference in amplitude of the 3-phase current sensor output is the threshold or more for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
