DTC P0710: General Description

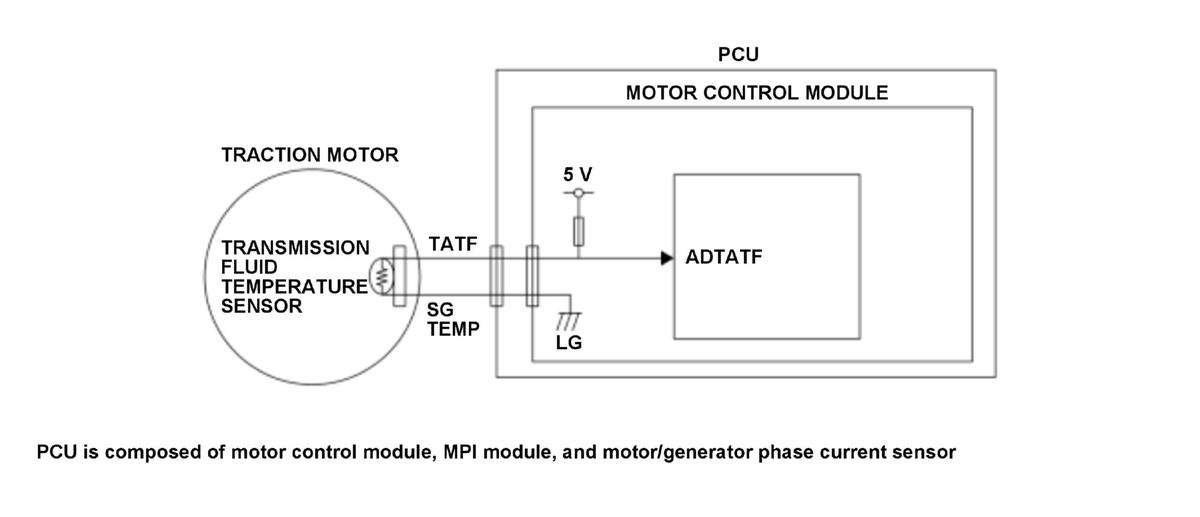

The traction motor is cooled by an automatic transmission fluid (ATF)-based oil cooling system and the power control unit (PCU) obtains the ATF temperature and traction motor temperature signals. Normally, the traction motor temperature and the ATF temperature become nearly the same value immediately after the traction motor is started when it is sufficiently cooled down. The motor control module in the PCU detects a malfunction and stores a DTC when the difference between the ATF temperature and the traction motor temperature immediately after the motor is started is equal to or more than the prescribed value continuously for the prescribed time or more.
