Visual Index - Engine Compartment

Location Index
Engine Compartment 1
Engine Compartment 2
Engine Compartment 3
Engine Compartment 4

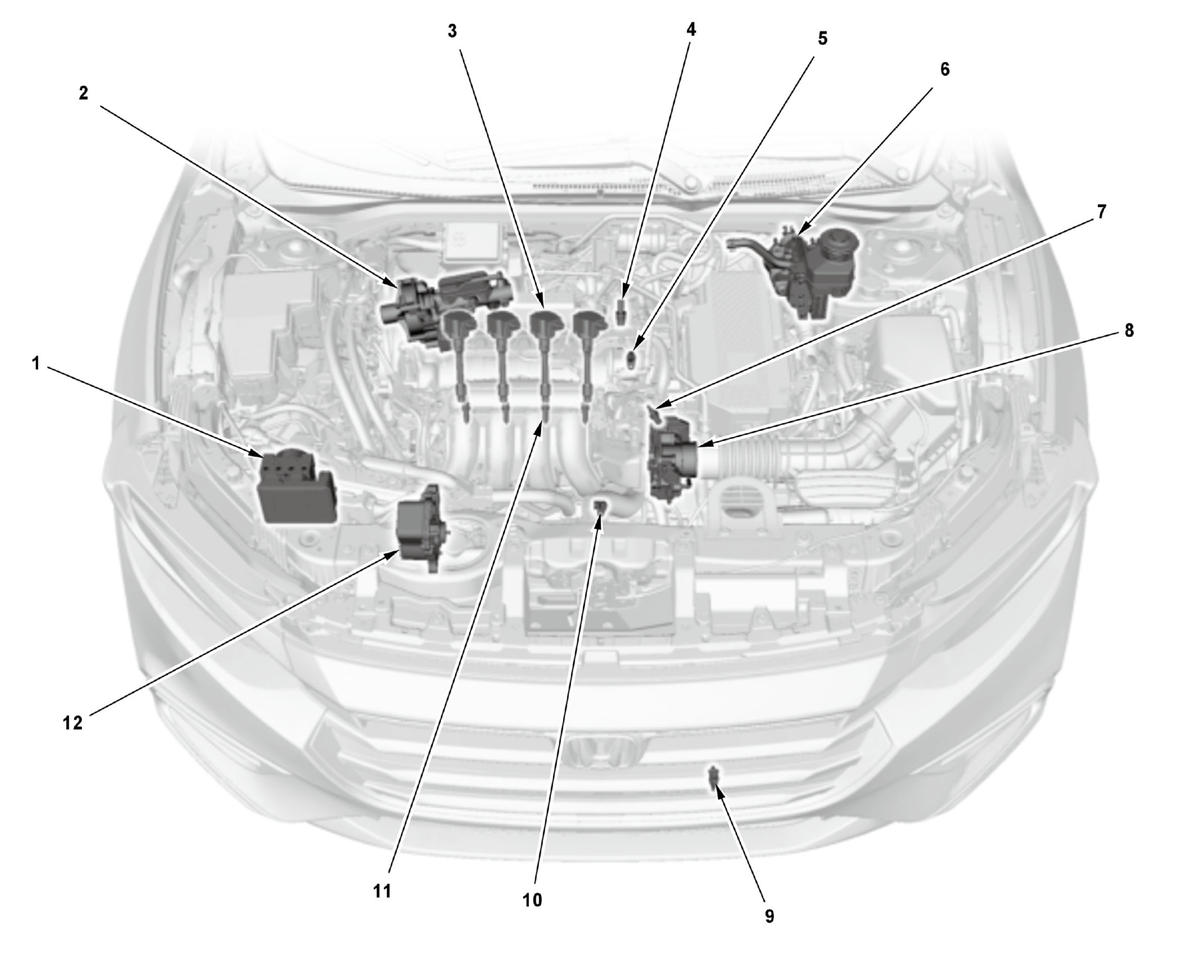

Engine Compartment 1

GHH386536Courtesy of HONDA, U.S.A., INC.

Engine Compartment 1

No. Component Related System
1 VSA modulator-control unit
2 Tandem motor cylinder Electric Servo Brake System
3 Ignition coils Ignition System
4 Camshaft position (CMP) sensor B Fuel and Emissions Systems
5 Camshaft position (CMP) sensor A Fuel and Emissions Systems
6 Electric servo brake control unit/pedal feel simulator
  • -

    Brake fluid level switch
No. Component Related System
7 Engine coolant temperature (ECT) sensor 1 Fuel and Emissions Systems
8 Throttle body Fuel and Emissions Systems
9 Outside air temperature sensor
10 Crankshaft position (CKP) sensor Fuel and Emissions Systems
11 Spark plugs Ignition System
12 Electric engine coolant pump Cooling System

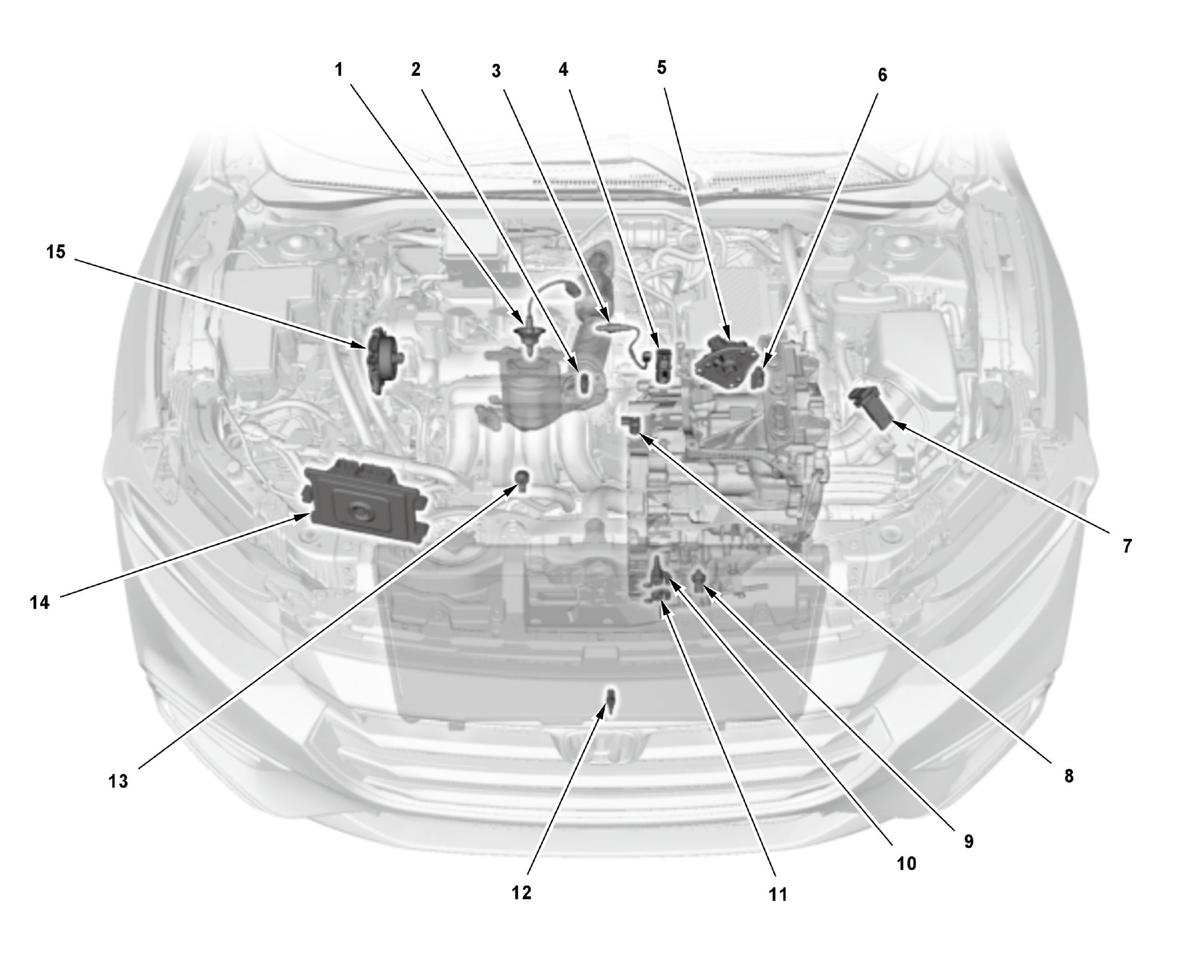

Engine Compartment 2

GHH386537Courtesy of HONDA, U.S.A., INC.

Engine Compartment 2

No. Component Related System
1 Air fuel ratio (A/F) sensor (sensor 1) Fuel and Emissions Systems
2 Intake air temperature (IAT) sensor 2 Fuel and Emissions Systems
3 Secondary heated oxygen sensor (secondary HO2S) (sensor 2) Fuel and Emissions Systems
4 Evaporative emission (EVAP) canister purge valve Fuel and Emissions Systems
5 Park pawl actuator Gear Unit Control System
6 Park position sensor
No. Component Related System
7 Mass air flow (MAF) sensor/Intake air temperature (IAT) sensor 1 Fuel and Emissions Systems
8 Manifold absolute pressure (MAP) sensor Fuel and Emissions Systems
9 Transmission fluid pressure sensor Gear Unit Control System
10 Shift solenoid valve A Gear Unit Control System
11 Shift solenoid valve B Gear Unit Control System
12 Engine coolant temperature (ECT) sensor 2 Fuel and Emissions Systems
13 Knock sensor Fuel and Emissions Systems
14 Powertrain control module (PCM)
15 Electric VTC motor Fuel and Emissions Systems

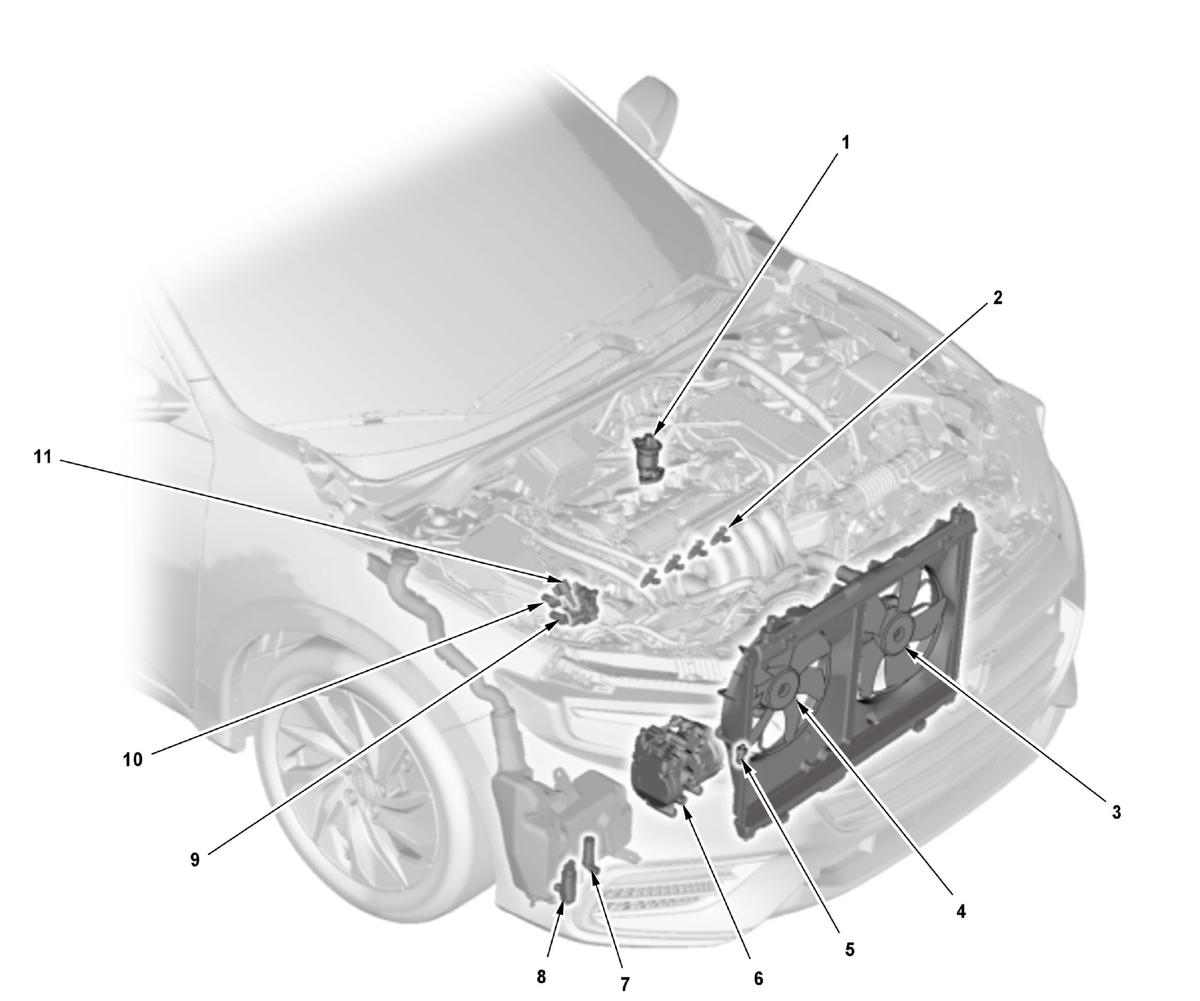

Engine Compartment 3

GHH386538Courtesy of HONDA, U.S.A., INC.

Engine Compartment 3

No. Component Related System
1 EGR valve Fuel and Emissions Systems
2 Injectors Fuel and Emissions Systems
3 Radiator fan motor
4 A/C condenser fan motor
5 A/C pressure sensor Climate Control System
6 Electric A/C compressor Climate Control System
7 Washer fluid level switch (KC models)
8 Windshield washer motor Wipers/Washers
9 Rocker arm oil pressure switch Fuel and Emissions Systems
10 Rocker arm oil pressure sensor Fuel and Emissions Systems
11 Rocker arm oil control valve Fuel and Emissions Systems

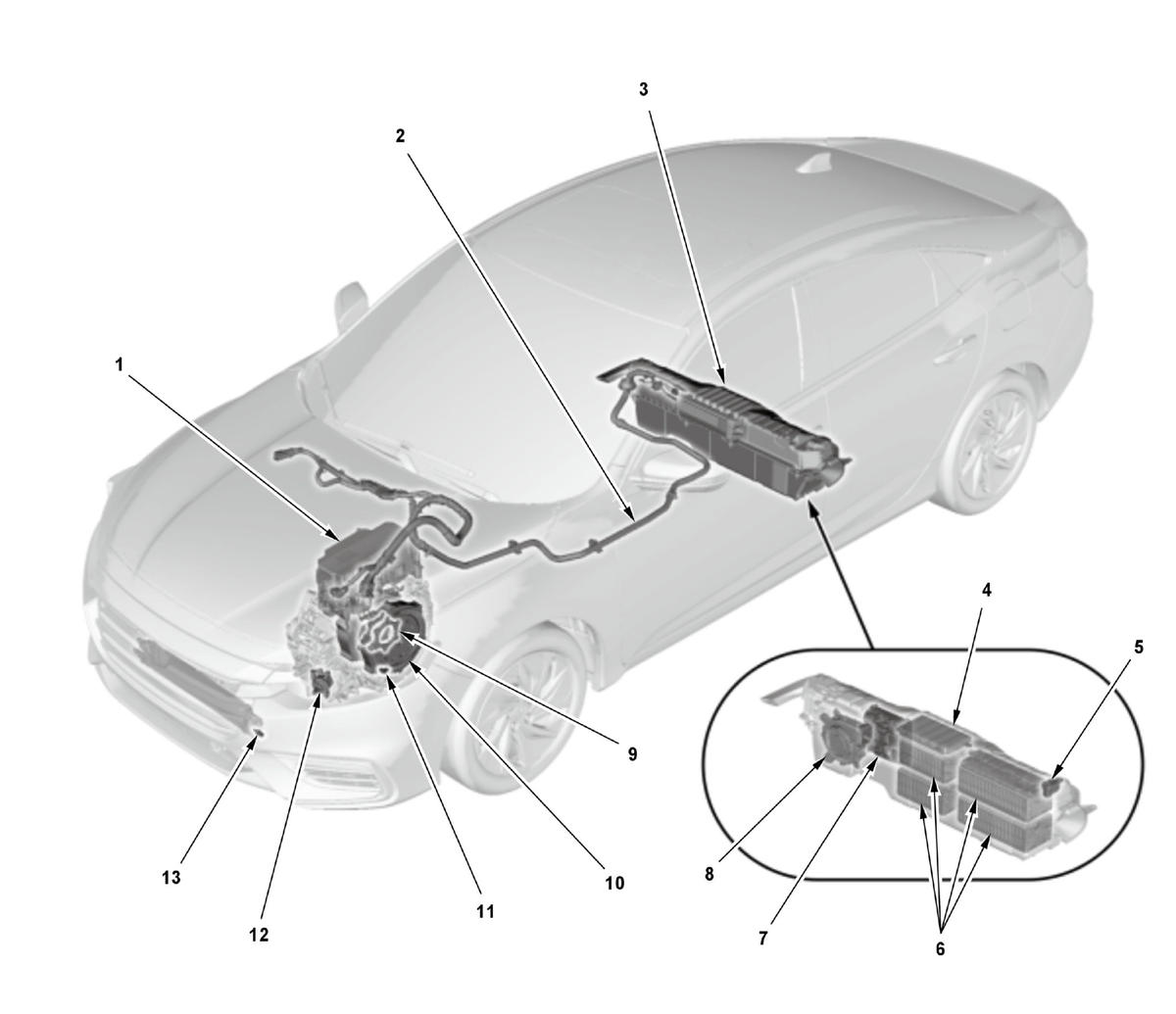

Engine Compartment 4

GHH386539Courtesy of HONDA, U.S.A., INC.

Engine Compartment 4

No. Component Related System
1 Power control unit (PCU)
  • -

    Motor control module

 Electric Powertrain
2 Battery power cable Electric Powertrain
3 IPU Electric Powertrain
4 Battery condition monitor module Electric Powertrain
5 Service plug Electric Powertrain
6 Battery pack Electric Powertrain
7 Junction board
  • -

    Electric A/C compressor fuse
8 High voltage battery module fan Electric Powertrain
9 Generator motor/traction motor rotor position sensor Electric Powertrain
10 Transmission (e-CVT)
  • -

    Generator motor

  • -

    Traction motor

 Electric Powertrain
11 Transmission fluid temperature sensor Electric Powertrain
12 PCU electric coolant pump Electric Powertrain
13 PCU coolant temperature sensor Electric Powertrain
