Circuit Diagram
>>

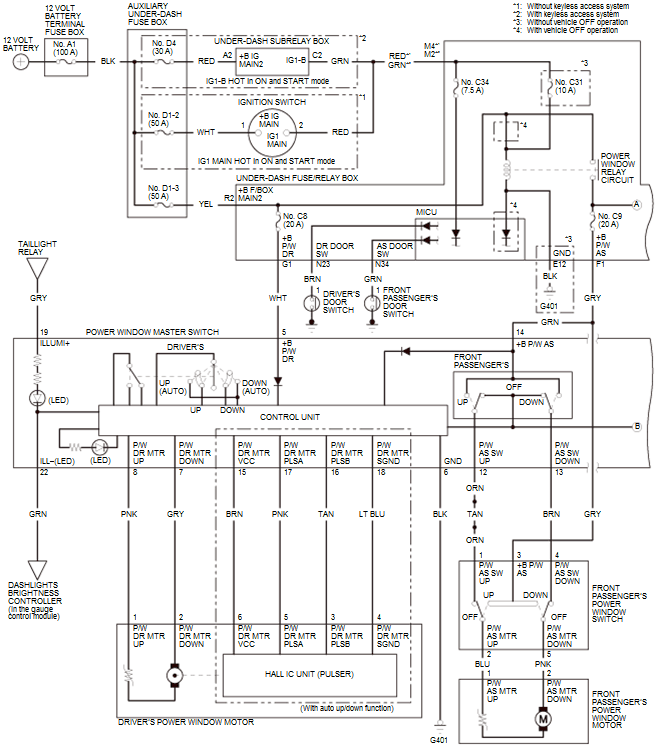

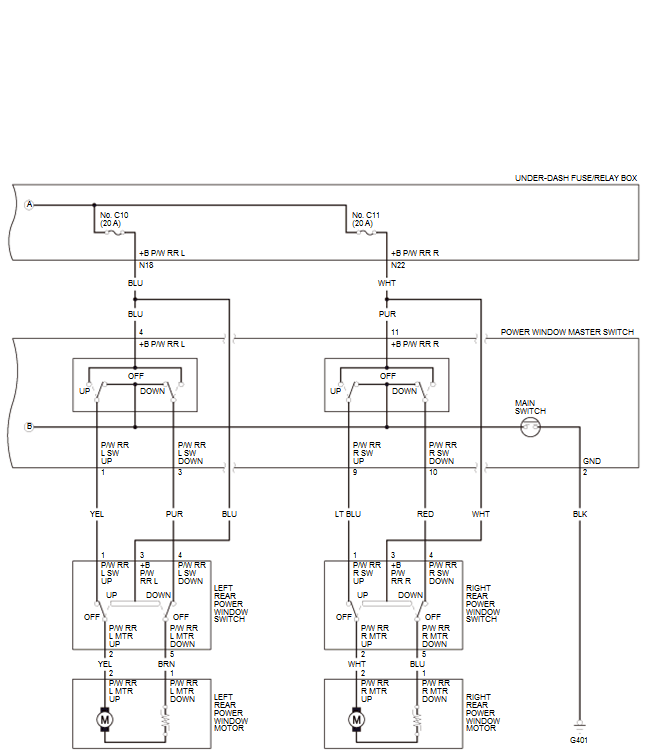

Power Windows Circuit Diagram
Power Windows Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
