Countershaft Bearing Replacement: Replacement

Countershaft Bearing - Remove

Courtesy of HONDA, U.S.A., INC.

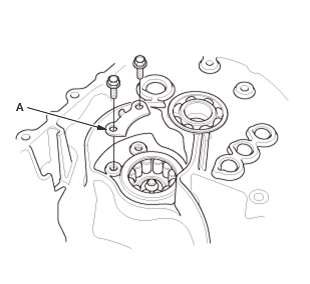

1. Remove the bearing set plate (A).

Courtesy of HONDA, U.S.A., INC.

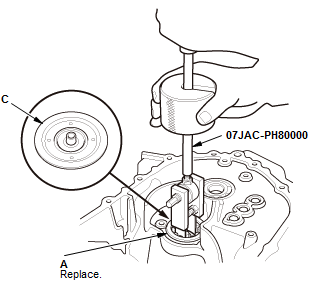

2. Remove the needle bearing (A) using the adjustable bearing remover set

3. Remove oil guide plate C.

Countershaft Bearing - Install

Courtesy of HONDA, U.S.A., INC.

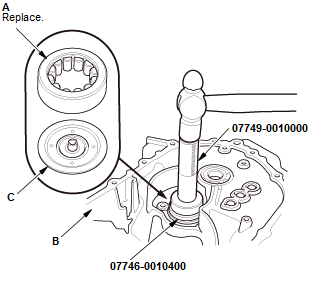

1. Position oil guide plate C and the needle bearing (A) in the bore of the clutch housing (B)

2. Install the needle bearing using the 15 x 135L driver handle and the 52 x 55 mm bearing driver attachment.

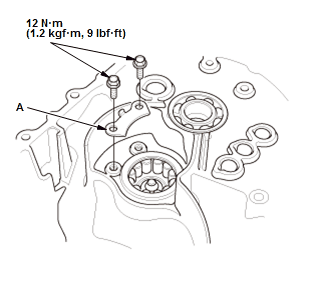

Fig 1: Bearing Set Plate With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

3. Install the bearing set plate (A).
