Overhaul
>>
Engine Oil Pump Overhaul
>>
Exploded View
Exploded View
NOTE:
Do not disassemble the oil pump except for the shown parts.
Oil Pump - Exploded View

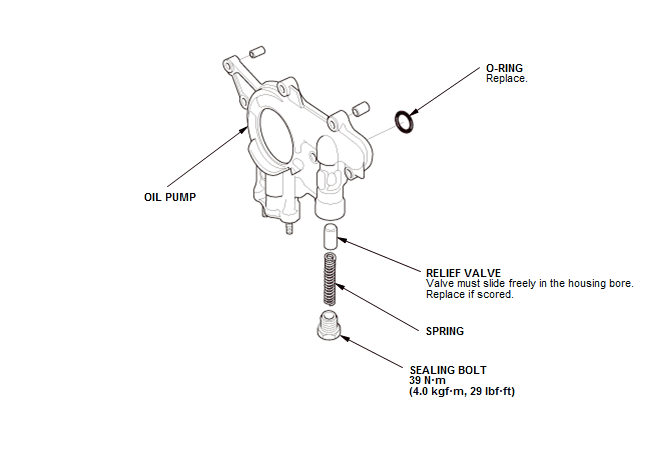

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
