Removal & Installation

Camshaft - Remove
Rocker Shaft Cover - Remove

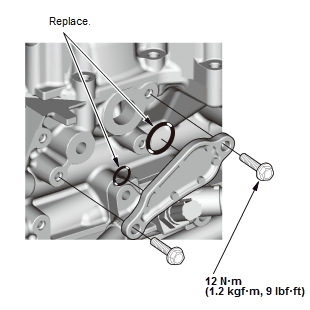

Fig 1: Rocker Shaft Cover With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

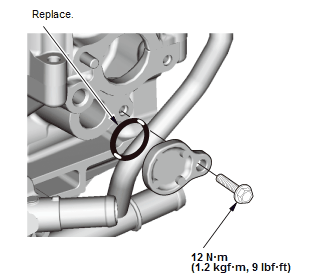

Fig 2: Rocker Shaft Stop With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Rocker Shaft Stop - Remove

1. Remove the rocker shaft stops (A).

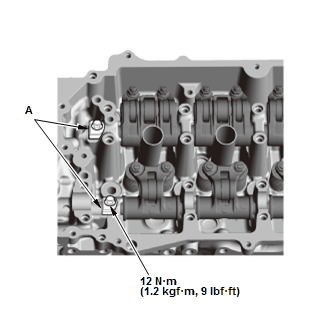

Fig 3: Rocker Shaft Stops With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

Rocker Shaft - Remove

GHH81395

Courtesy of HONDA, U.S.A., INC.

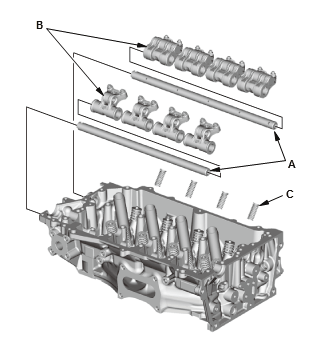

1. Remove the rocker shafts (A) and the rocker arm assemblies (B).

NOTE: Bundle the rocker arms with rubber bands to keep them together as a set

2. Remove the lost motions (C).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
