Removal And Installation

NOTE:  If the keyless access control unit is replaced, do the immobilizer-keyless control unit registration . If the original keyless access control unit is installed, confirm that all systems work properly.

1. Gauge Control Module - Remove
2. Keyless Access Control Unit - Remove

   Courtesy of HONDA, U.S.A., INC.

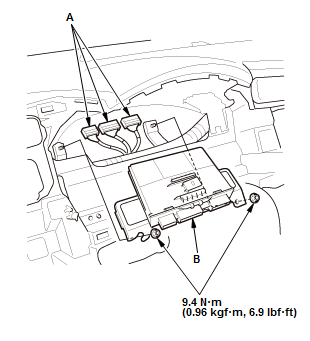

   1. Disconnect the connectors (A) 2. Remove the keyless access control unit (B).

   Courtesy of HONDA, U.S.A., INC.

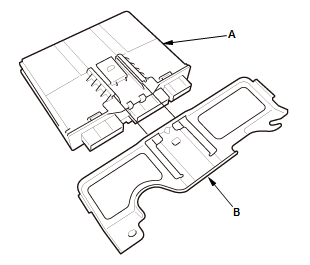

   3. Remove the keyless access control unit (A) from the bracket (B).

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

4. Keyless Access System - Register
