Circuit diagram: (M/T)

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

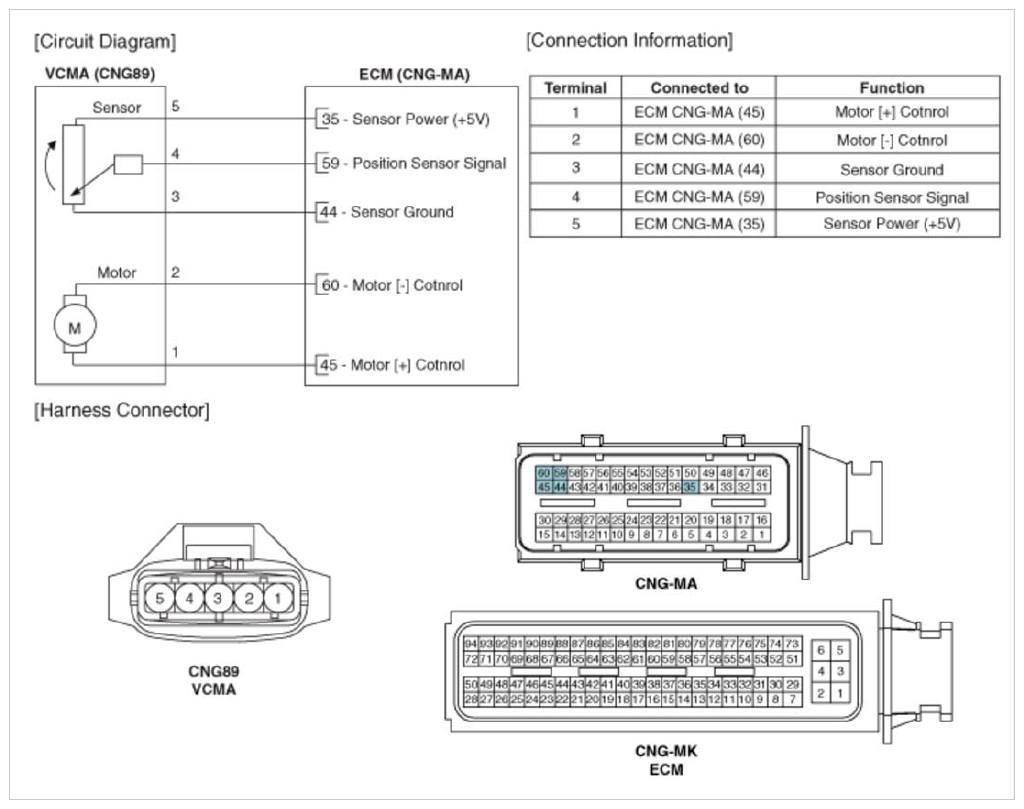

Fig 1: VCMA Schematic Diagrams (M/T)
G09885963Courtesy of HYUNDAI MOTOR AMERICA
