HandsFreeLink System Self-Diagnostic Function

NOTE:

• Check the vehicle 12 volt battery condition first .
• The self-diagnostic function can only be initiated while the HFL is in its idle state.

1. Turn the vehicle to the ACCESSORY mode

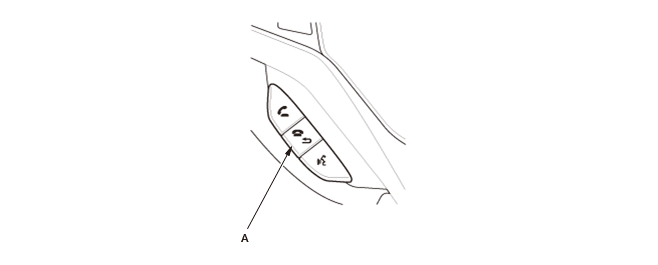

2. Press and hold the HANG-UP/BACK button (A) for more than 5 seconds.

Courtesy of HONDA, U.S.A., INC.

3. When the HFL system enters the self-diagnostic function, the following will occurs:

• If the HFL system is OK, the front speaker outputs "The HFT is OK."
• If the HFL system has any problem, the front speaker outputs "The HFT is NG." Go to HFL does not respond troubleshooting - Refer to: HandsFreeLink System Symptom Troubleshooting - HFL does not respond(With Normal Audio), or HandsFreeLink System Symptom Troubleshooting - HFL does not respond(With Navigation), or HandsFreeLink System Symptom Troubleshooting - HFL does not respond(With Display Audio (7-inch Screen), Without Navigation), or HandsFreeLink System Symptom Troubleshooting - HFL does not respond(With Color Audio (5-inch Screen)) .
