Steering Column Removal and Installation: Installation

SRS components are located in this area. Review the SRS component locations , and the precautions and procedures before doing repairs or service.

NOTE:

Where icon is shown, further information shown below.
Do not release the lock lever until the steering column is installed. If the lock lever is released before installation, adjust the steering column after installation.
Be careful not to damage the brake pedal position switch.

NOTE: Numbered call-outs in figure pertain to list numbers in following procedure.

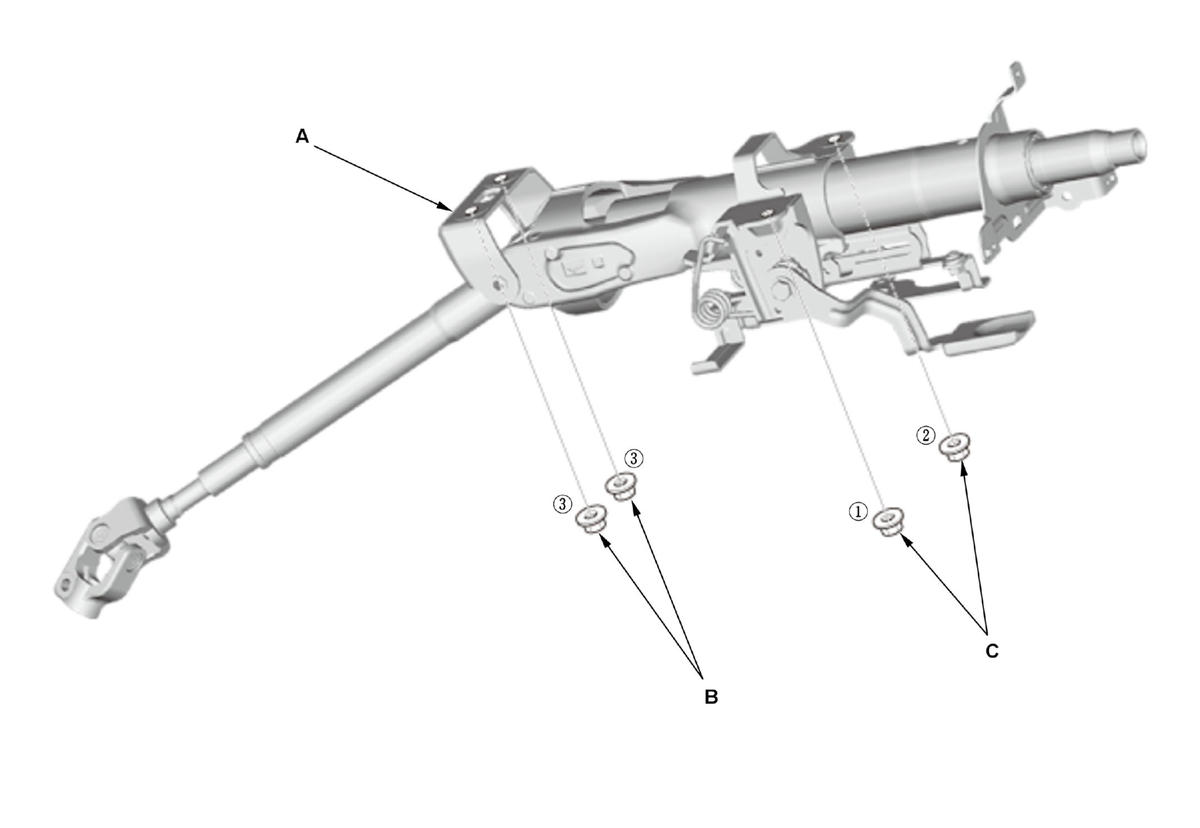

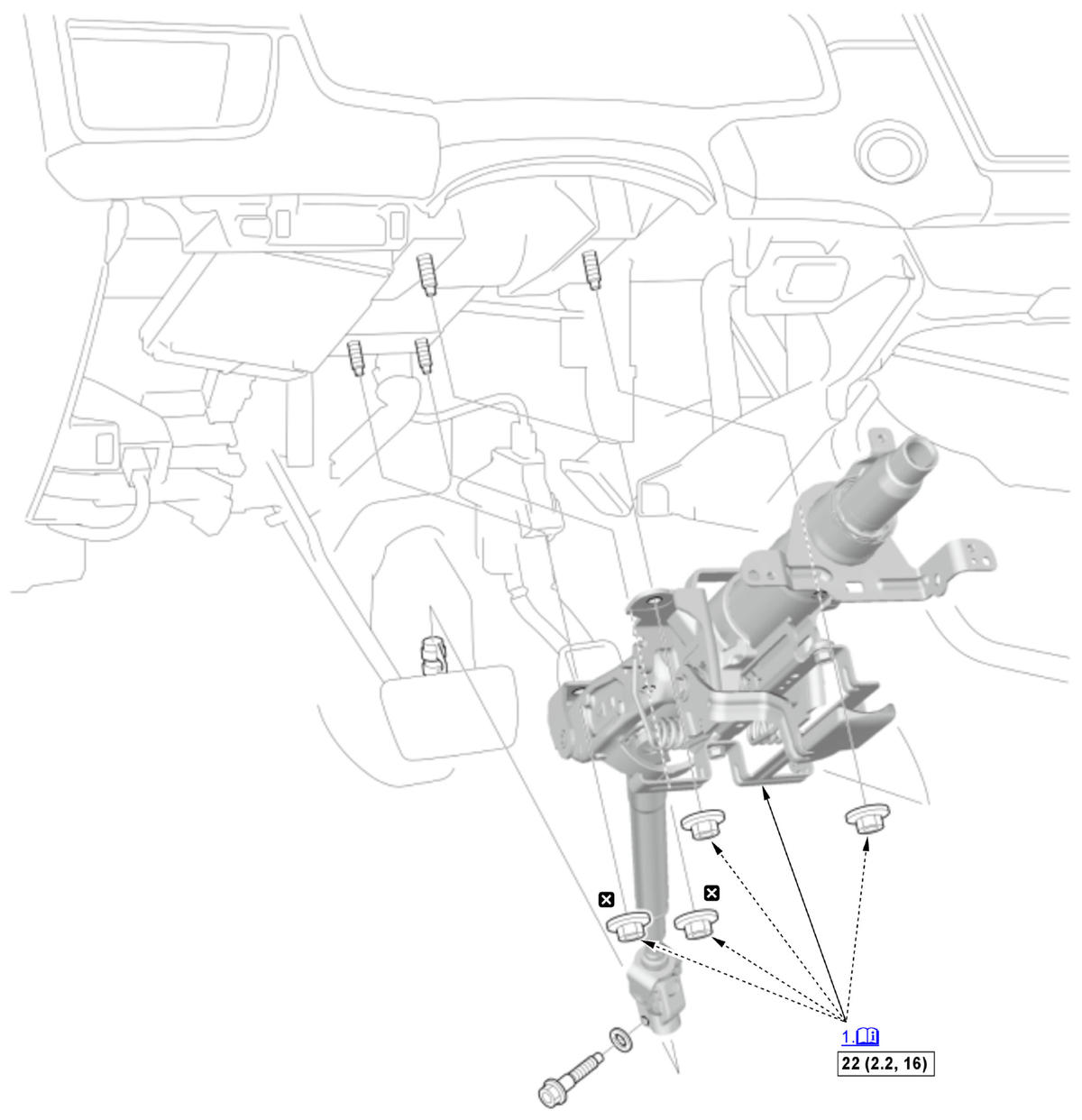

Fig 1: Steering Column With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

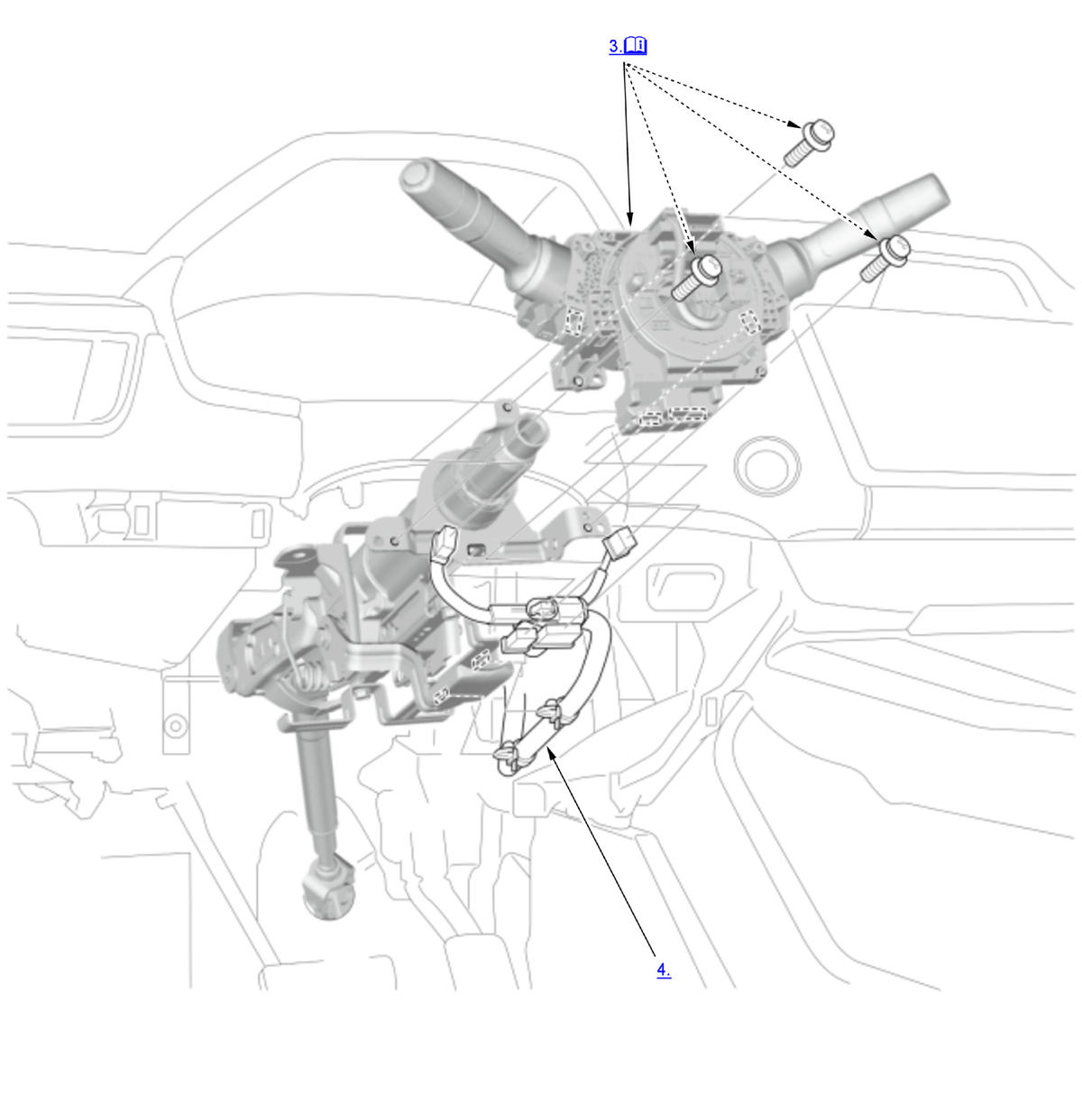

NOTE: Numbered call-outs in figure pertain to list numbers in following procedure.

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes and precautions

Combination Switch Body Assembly/Wire Harness - Install

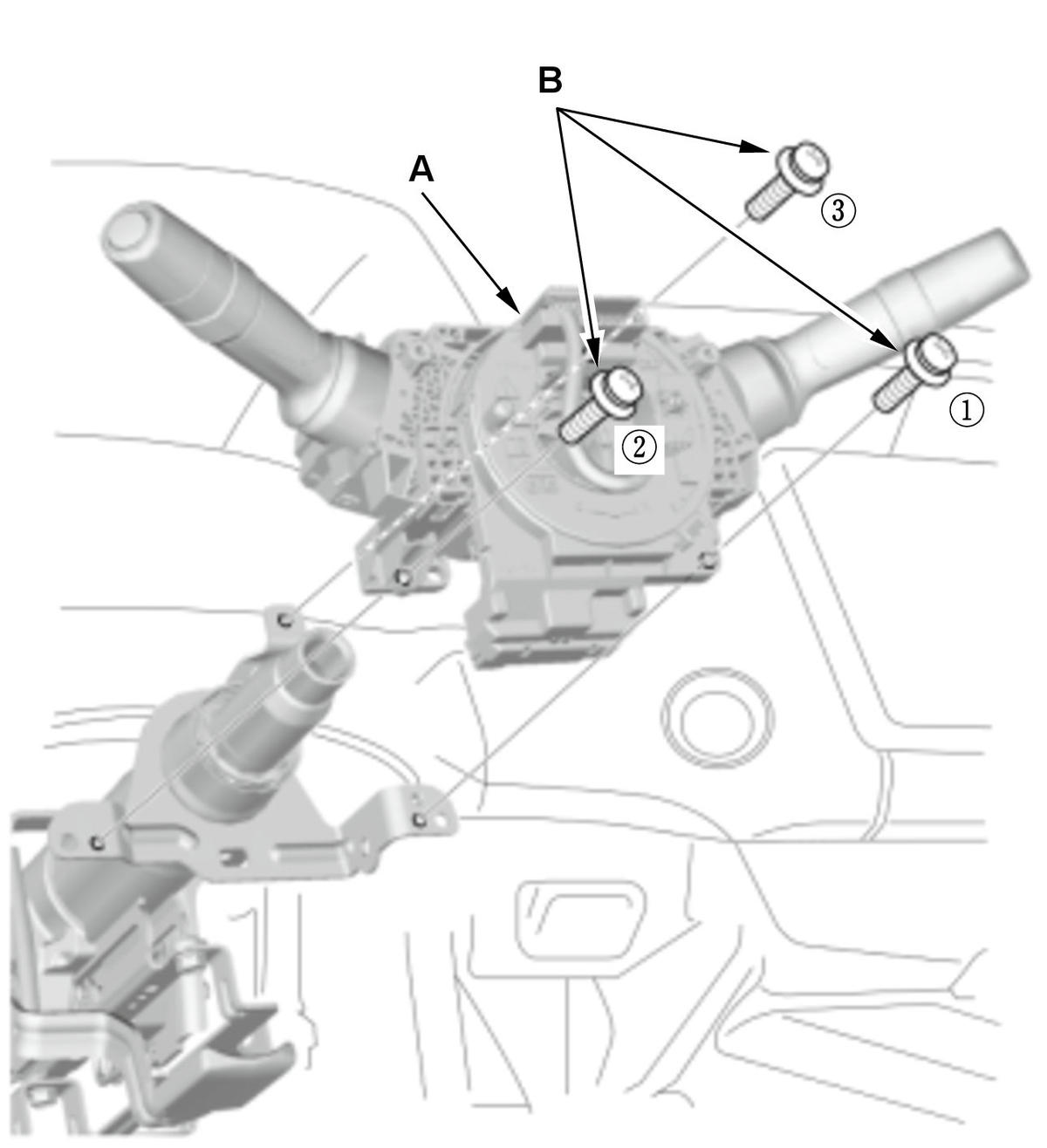

Fig 3: Combination Switch Body Assembly Tightening Sequence With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Install the combination switch body assembly (A).

2. Tighten the screws (B) in the numbered sequence shown.

Steering Column After Install - Check

1. After installation, check these items:

Check that the EPS indicator does not come on.
Check the tilt mechanism and the telescopic mechanism for movement and damage.
With the front wheels straight ahead, make sure the steering wheel is centered and the turning revolutions from center to full lock (left and right) is equal. If not, check the installation of the steering wheel and the engagement of the joint/pinion shaft splines.
