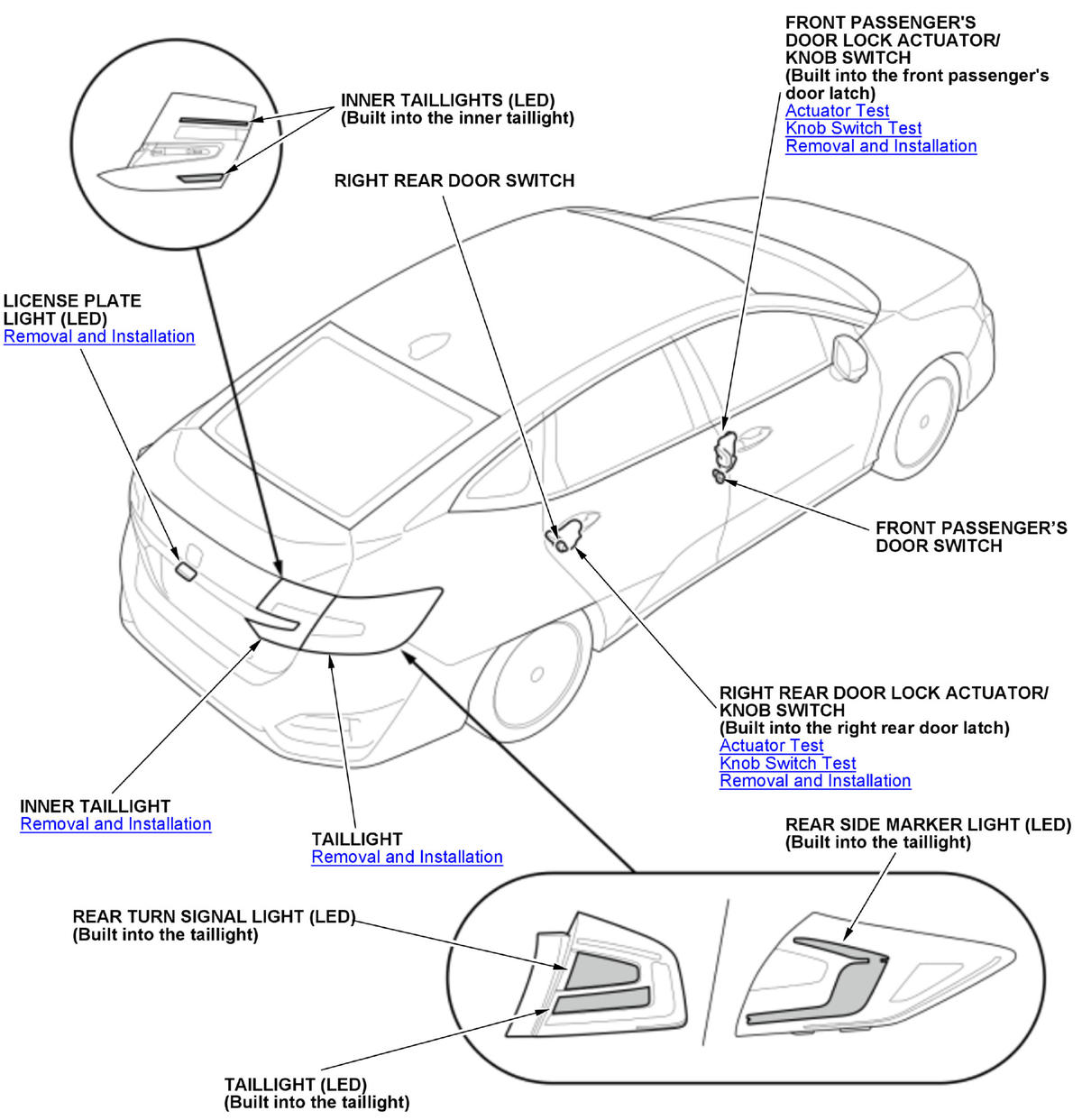

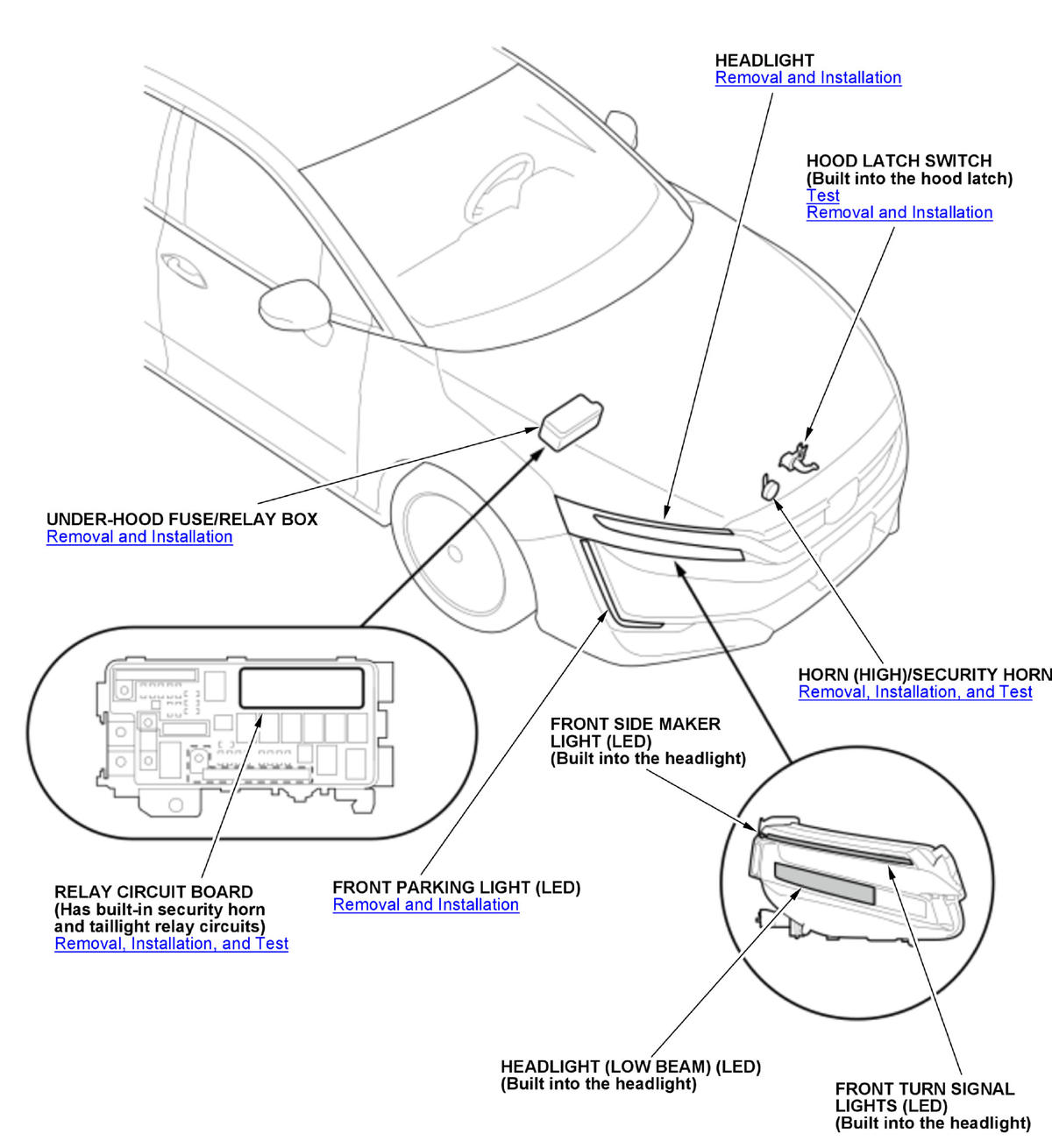

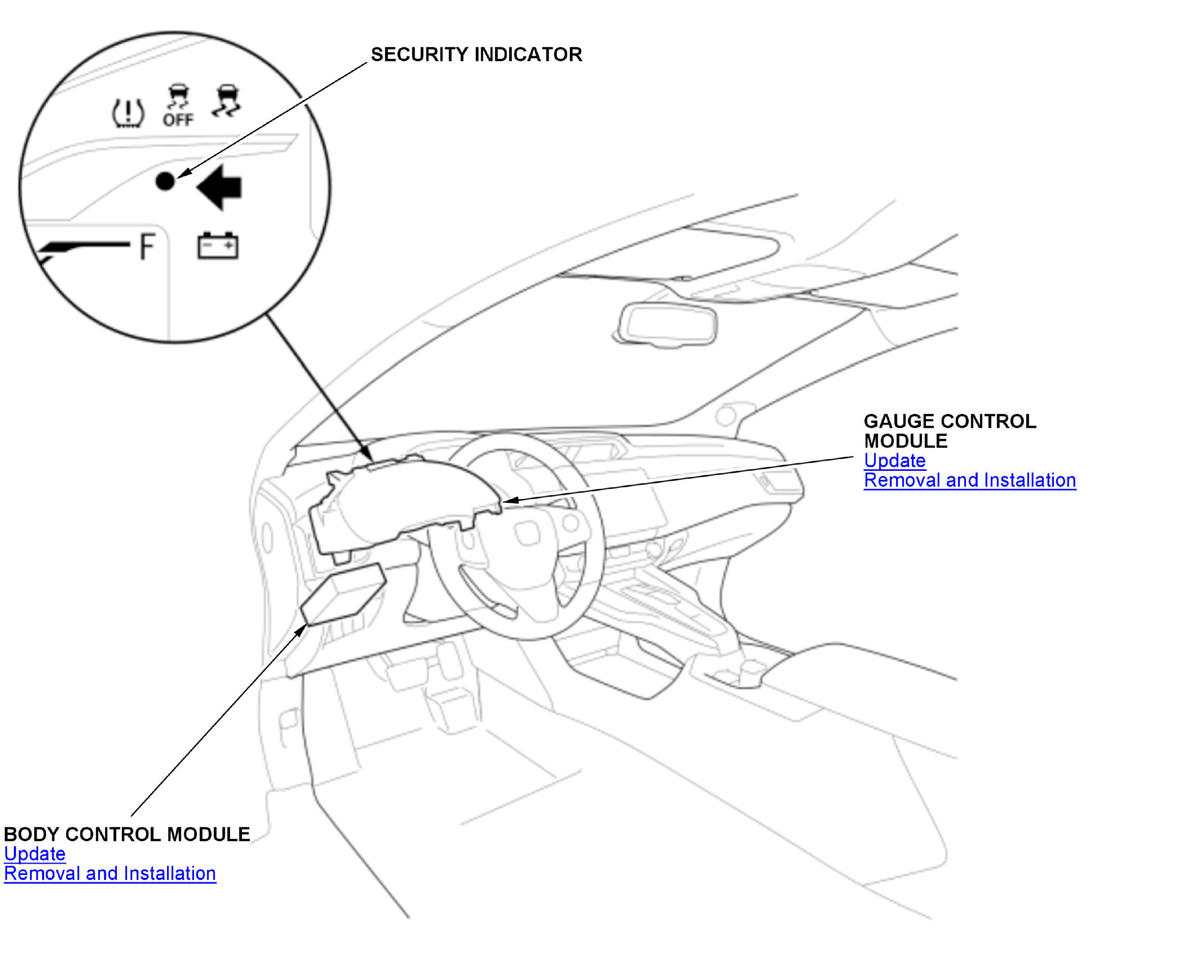

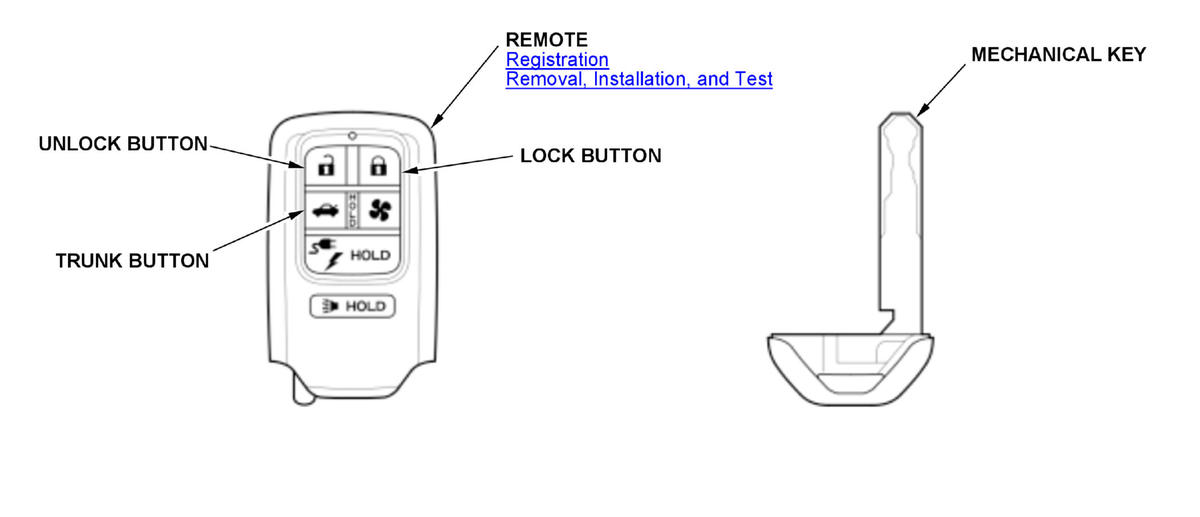

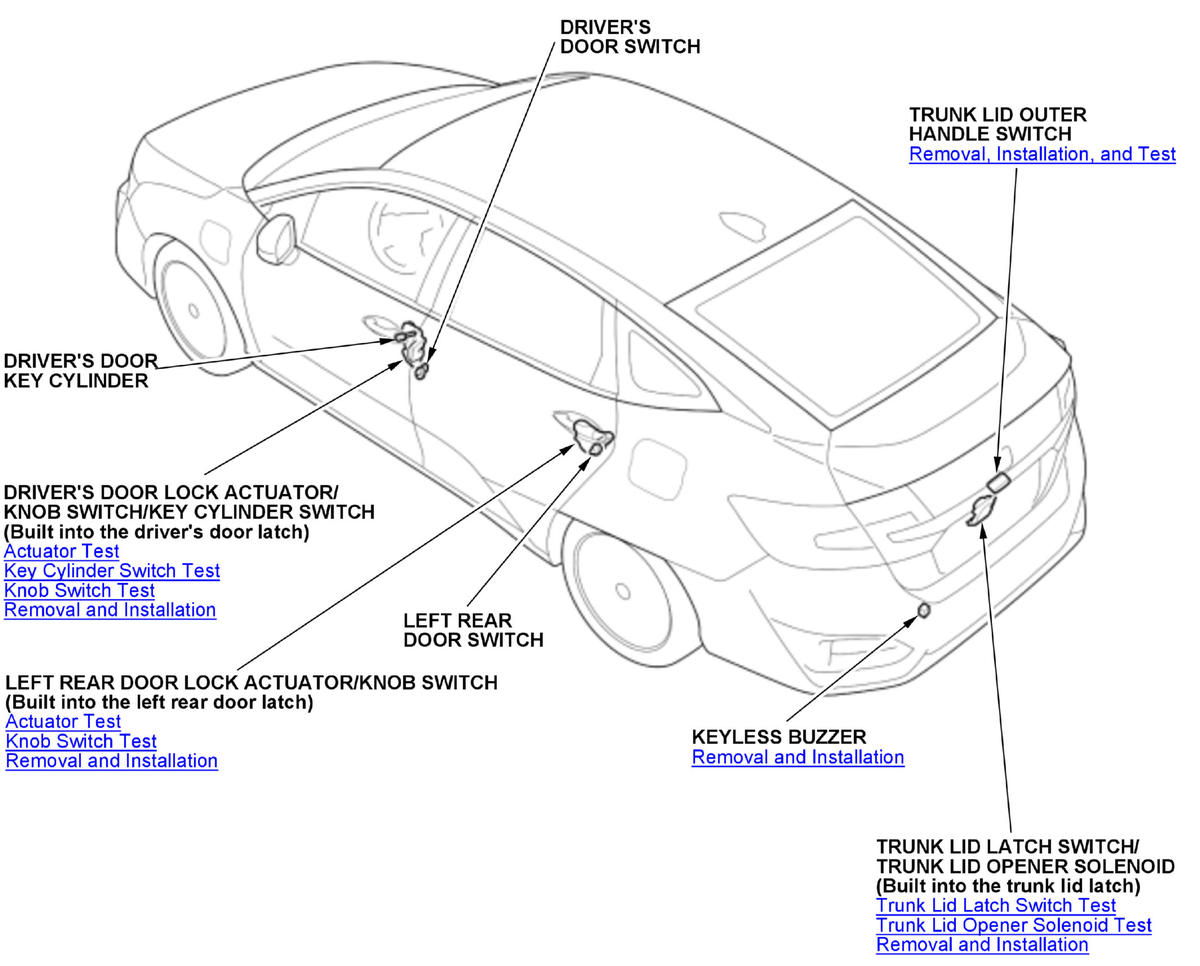

Keyless/Power Door Locks/Security System Component

.For Keyless Access System,

refer to Keyless Access System, Component Location Index ..For relationships between signals in a system, refer to System Diagram .

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
