Audio System Component Location Index

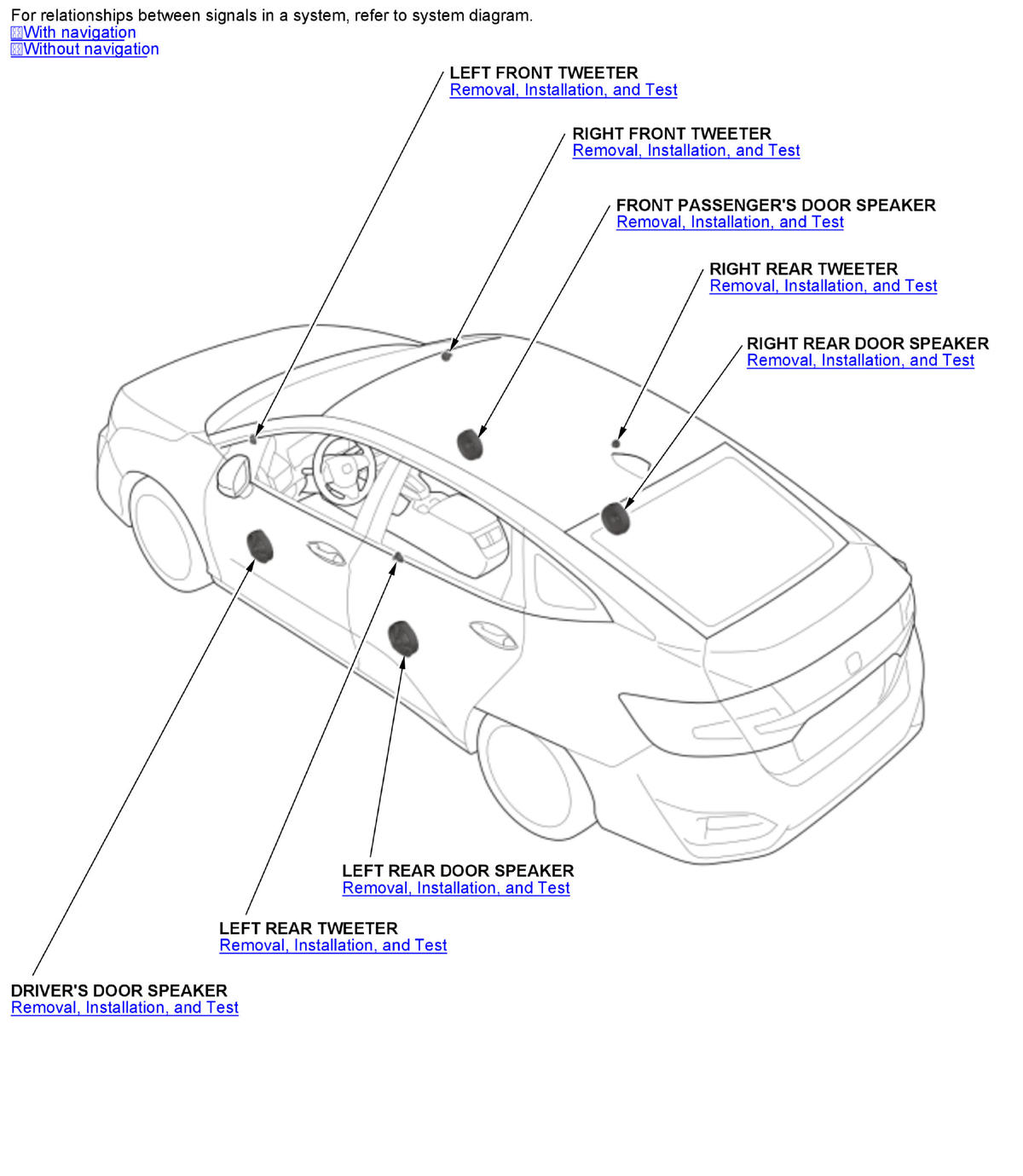

GHH413356

Courtesy of HONDA, U.S.A., INC.

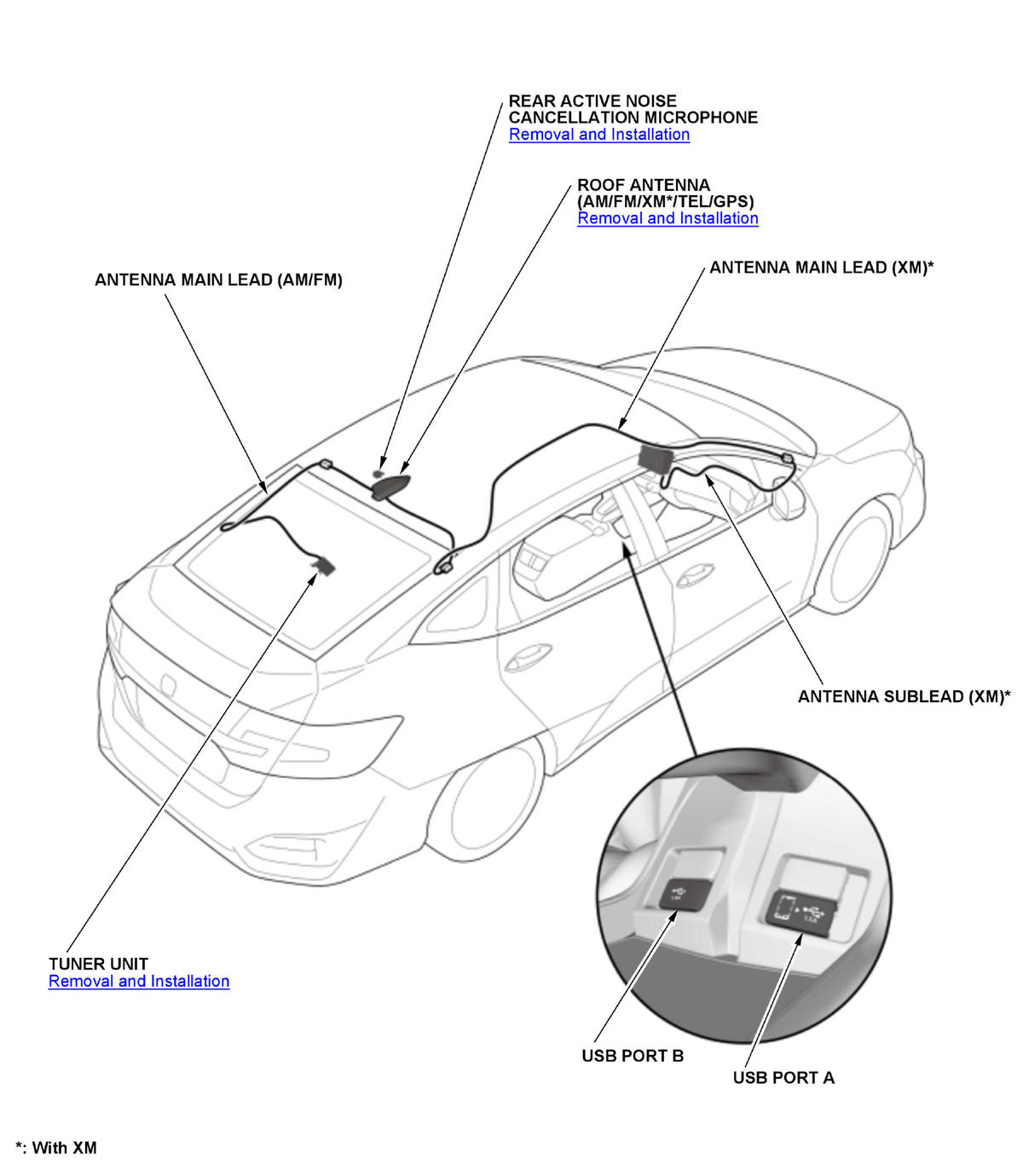

GHH413357

Courtesy of HONDA, U.S.A., INC.

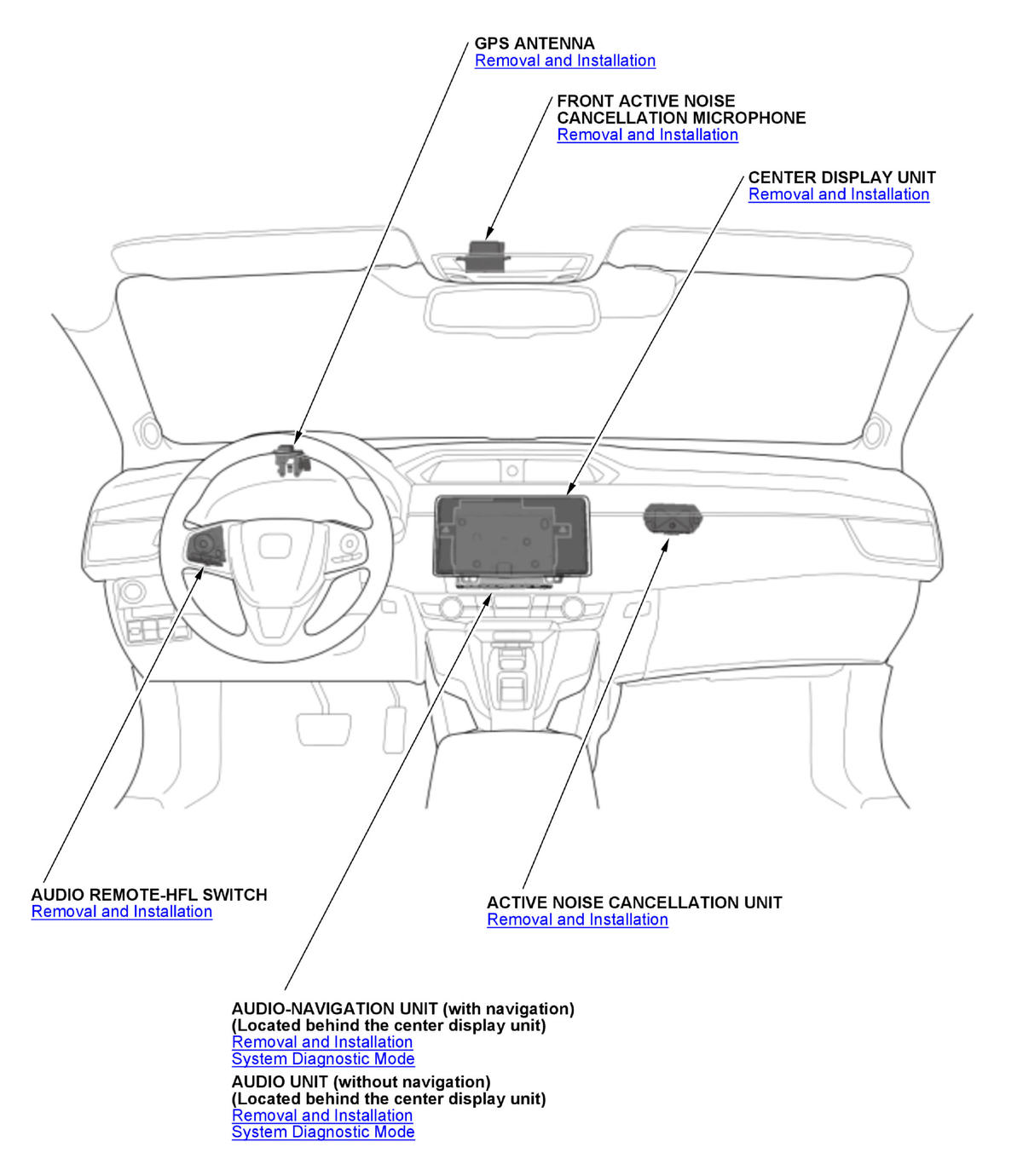

GHH413358

Courtesy of HONDA, U.S.A., INC.
