Unit Check (Quick Check): Notes

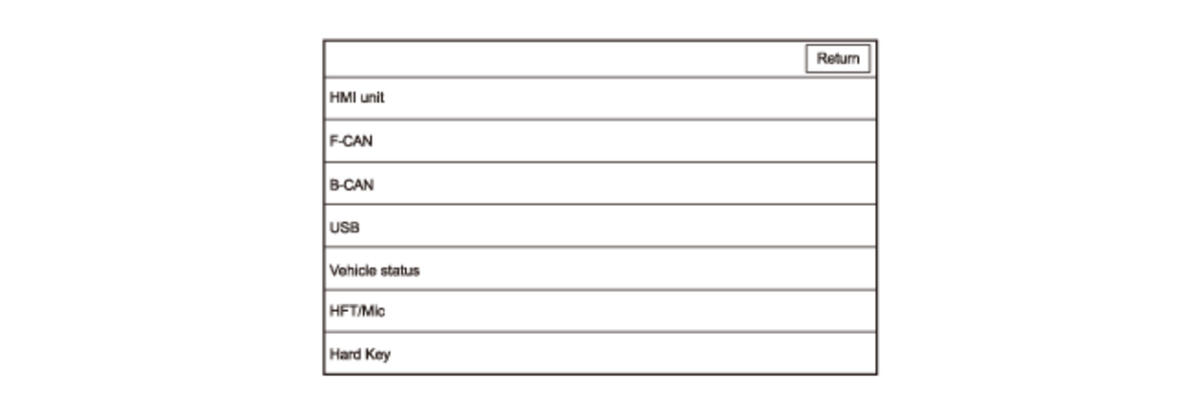

These screens allow you to diagnose the audio unit and related units. Some of the tests and screens that are displayed under the Unit Check are same as the checks listed under the Detail Information and Setting.
To start the test, select the item you want to check.
NOTE:
These items describe in indication order. Swipe the screen to check the next items.
- HMI Unit
- F-CAN
- B-CAN
- USB
- Vehicle status
- HFT/Mic
- Hard Key
- Error history
- Rear wide camera
- LaneWatch
- Remote tuner
- XM Ant. (with XM)
- Center display
- Meter Display
- GPS antenna
- A/C
- Telematics Diag (not supported)
