Monitor Check: Notes

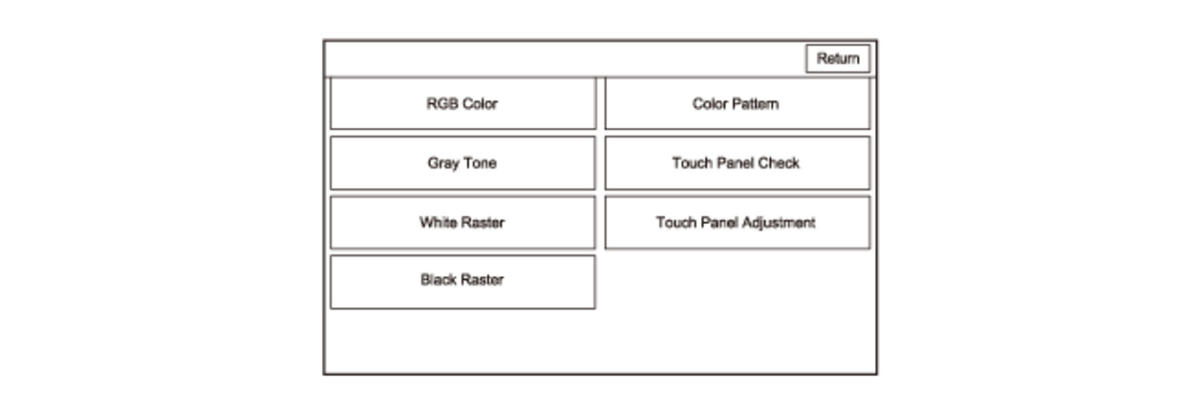

These screens allow you to troubleshoot the LCD display on the center display unit. Select the item you want to check, and follow the diagnostic instructions.

• RGB Color
• Gray Tone
• White Raster
• Black Raster
• Color Pattern
• Touch Panel Check
• Touch Panel Adjustment

Courtesy of HONDA, U.S.A., INC.
