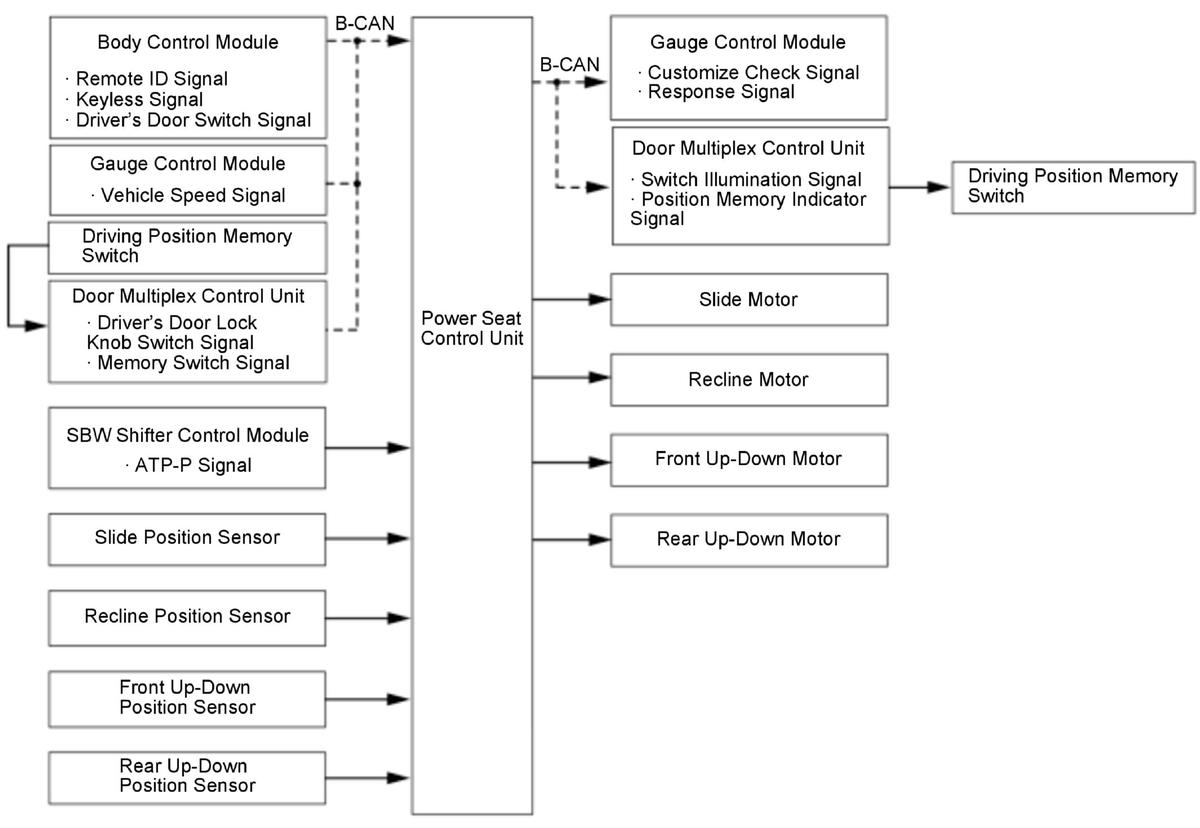

Driving Position Memory System - System Diagram

For locations of each component on the vehicle, refer to Component Location Index

GHH419301Courtesy of HONDA, U.S.A., INC.
