Transfer Assembly Disassembly and Reassembly (6-Speed A/T): Disassembly: Procedure

NOTE: Numbered call-outs in figure pertain to list numbers in following procedure

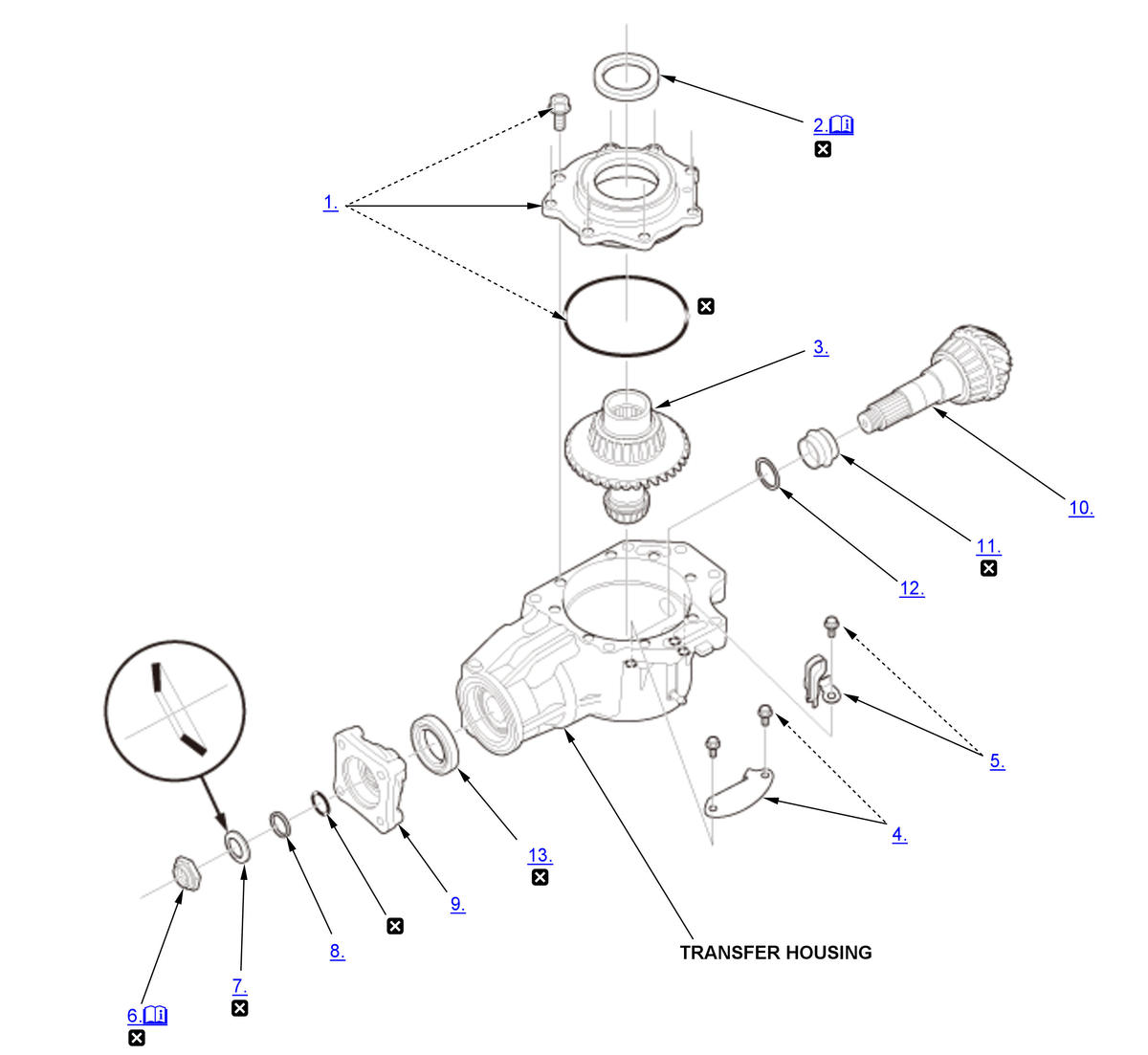

Fig 1: Exploded View Of Transfer Assembly Replacement Components

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: Nm (kgf-m, lbf.ft)
	Replace

Companion Flange Locknut - Remove

Courtesy of HONDA, U.S.A., INC.

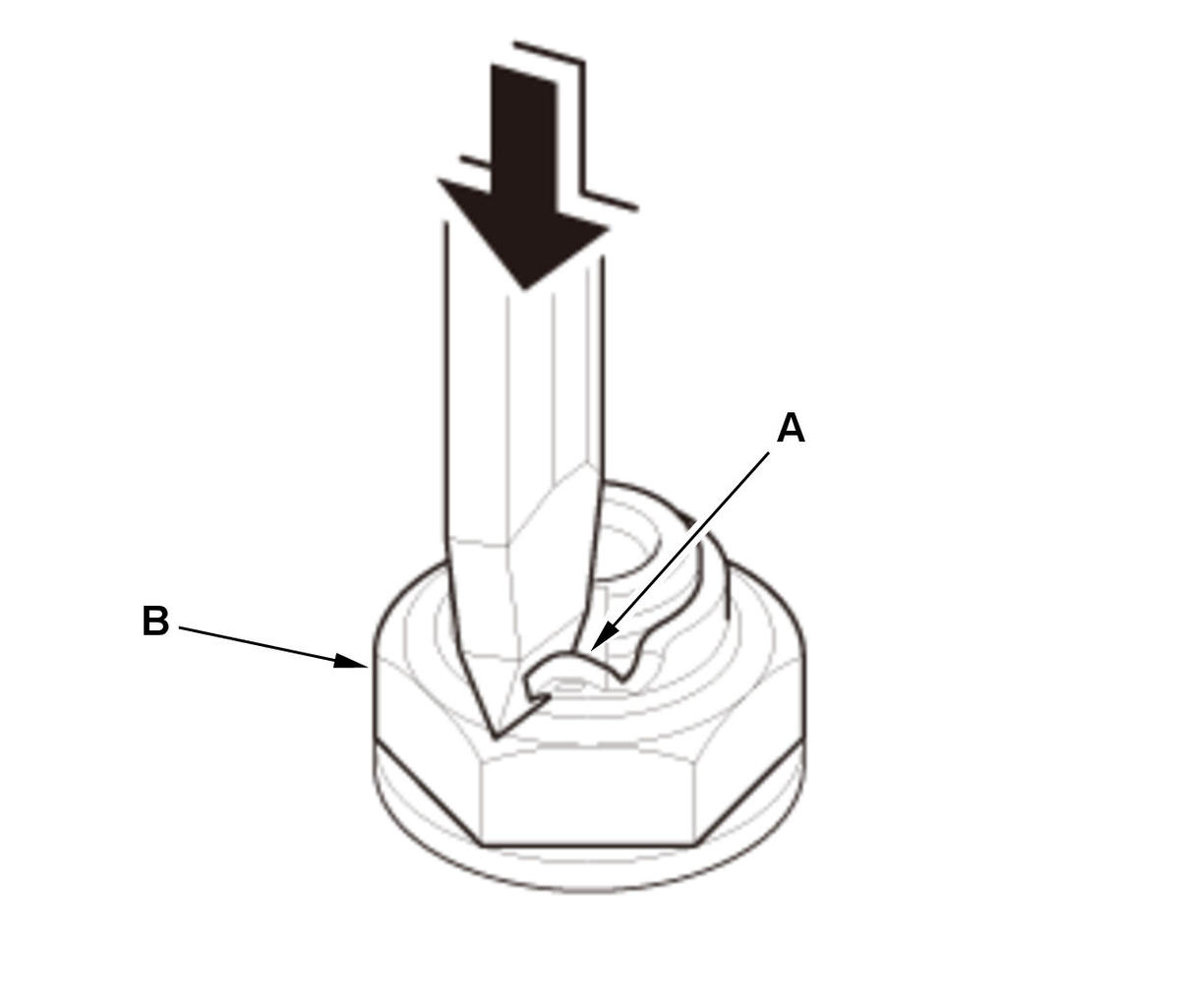

1. Using a chisel, cut the lock tab (A) of the locknut (B).

Courtesy of HONDA, U.S.A., INC.

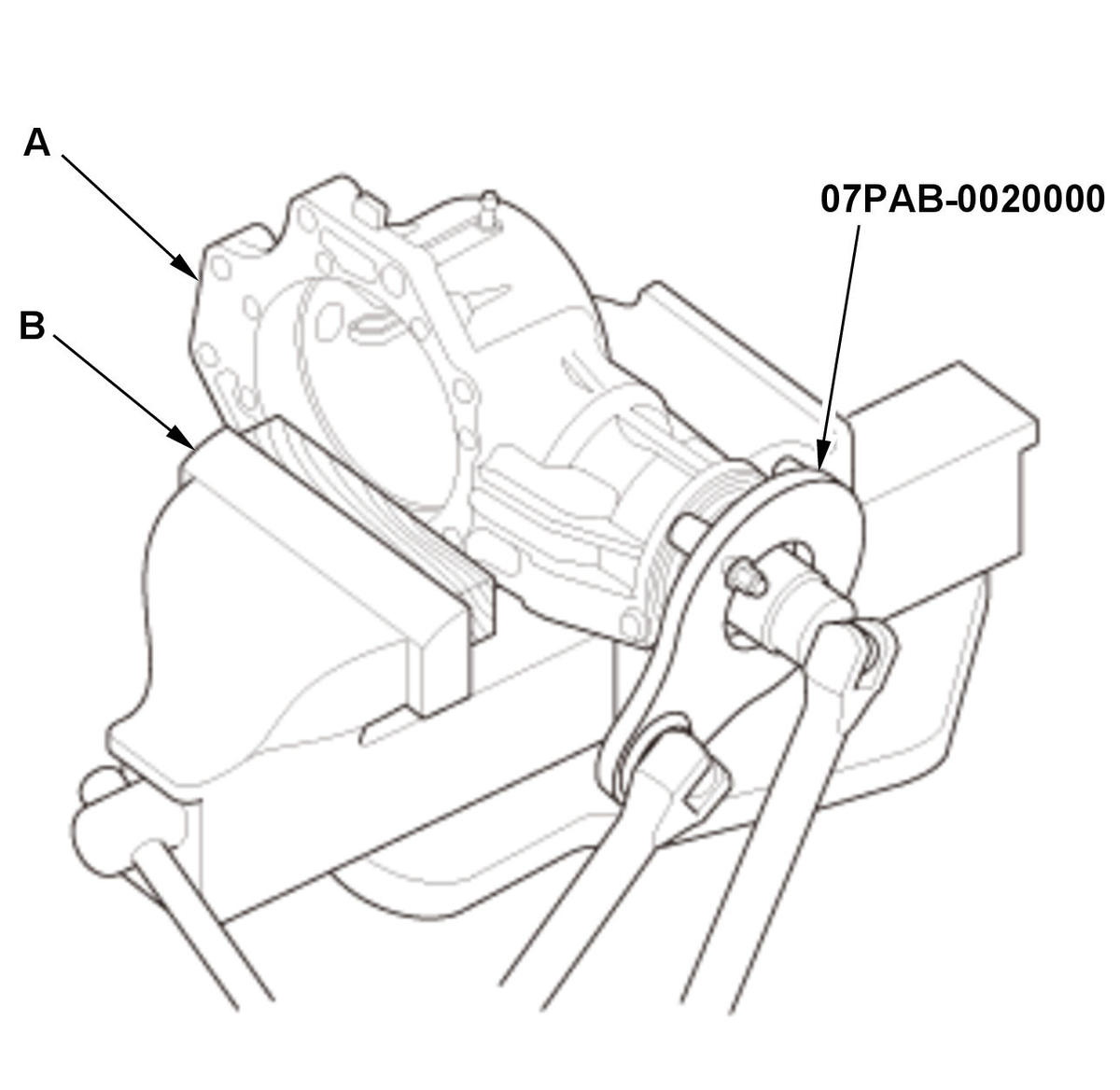

2. Secure the transfer housing (A) in a bench vise (B) with wood blocks.

NOTE:

To prevent damaging the transfer housing, always use wood blocks or equivalent materials between the transfer housing and the bench vise.

3. Install the companion holder on the companion flange.

4. Loosen the locknut.

5. Remove the companion holder.
