Fuel Tank Unit: Installation

Fuel Tank Unit - Temporarily Insert

Courtesy of HONDA, U.S.A., INC.

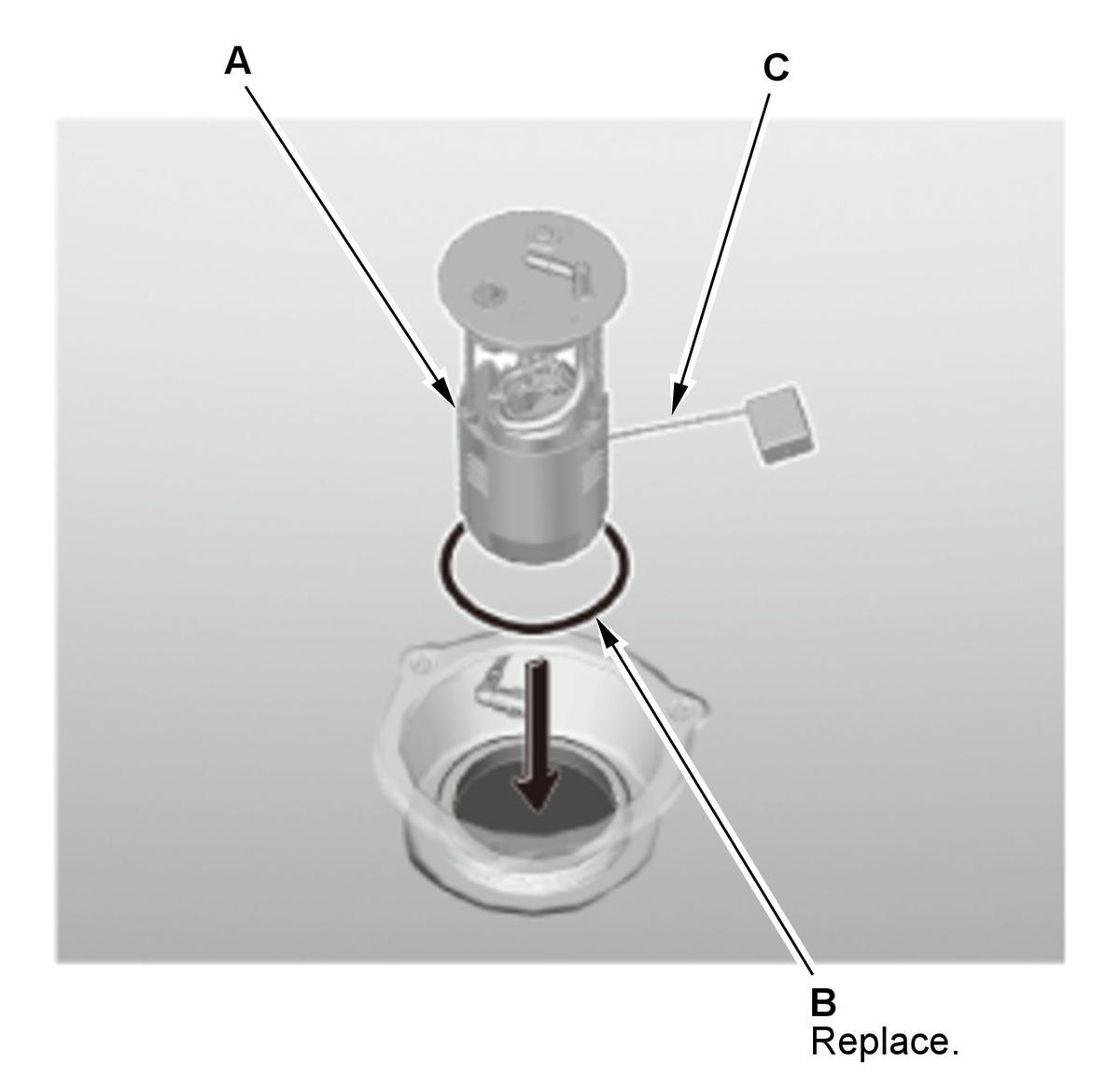

1. Insert the fuel tank unit (A) partially into the fuel tank with a new O-ring (B).

Be careful not to damage the new O-ring.
Be careful not to bend or twist the fuel level sensor arm (C) excessively.
Do not coat the base gasket with oil.

Fuel Tank Unit - Align

Courtesy of HONDA, U.S.A., INC.

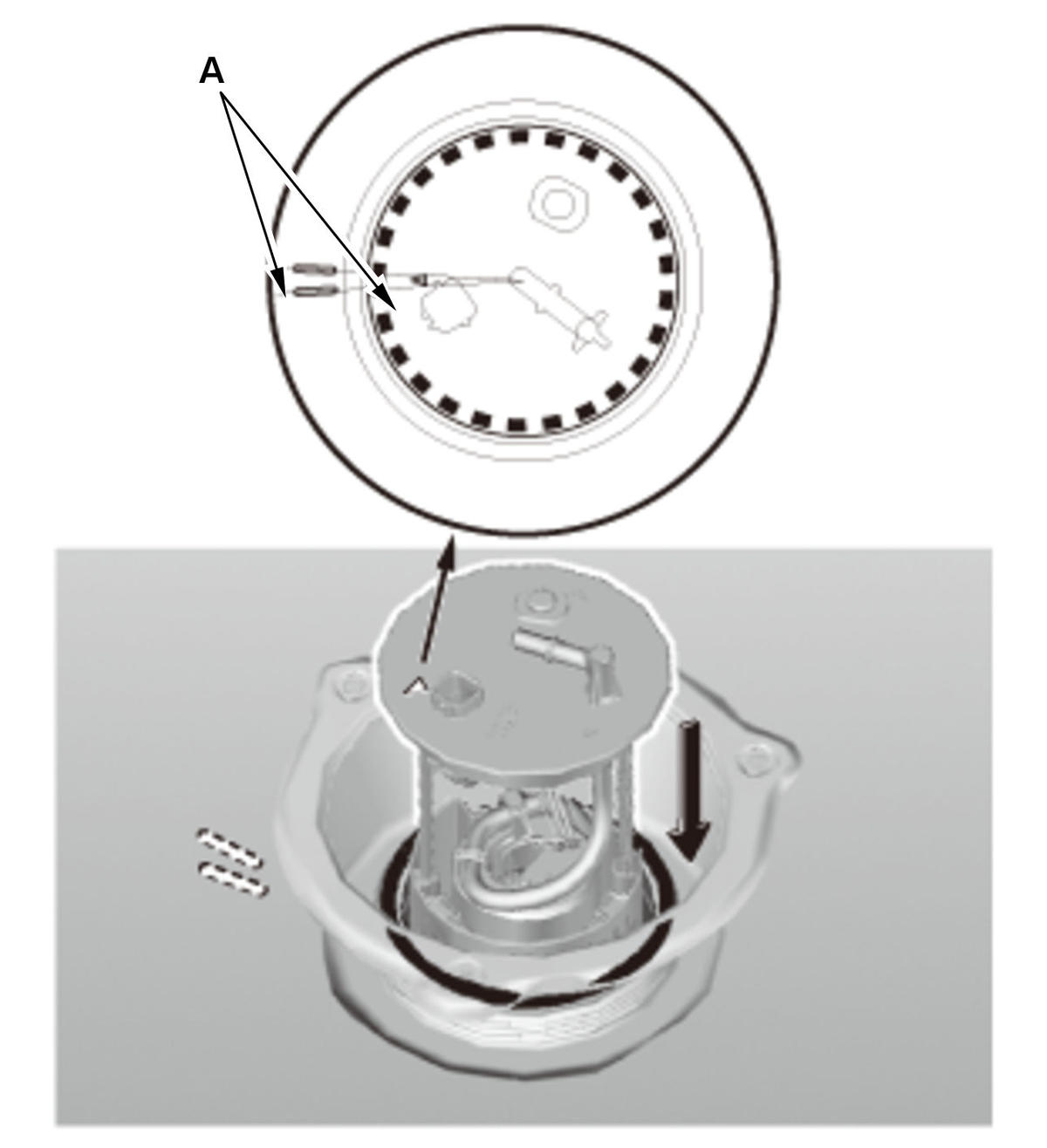

1. Align the marks (A) on the fuel tank and fuel tank unit, then insert the fuel tank unit into the fuel tank.

NOTE: To avoid a fuel leak, check the O-ring, visually or by hand, to make sure it is not pinched.

Fuel Tank Unit - Install

Courtesy of HONDA, U.S.A., INC.

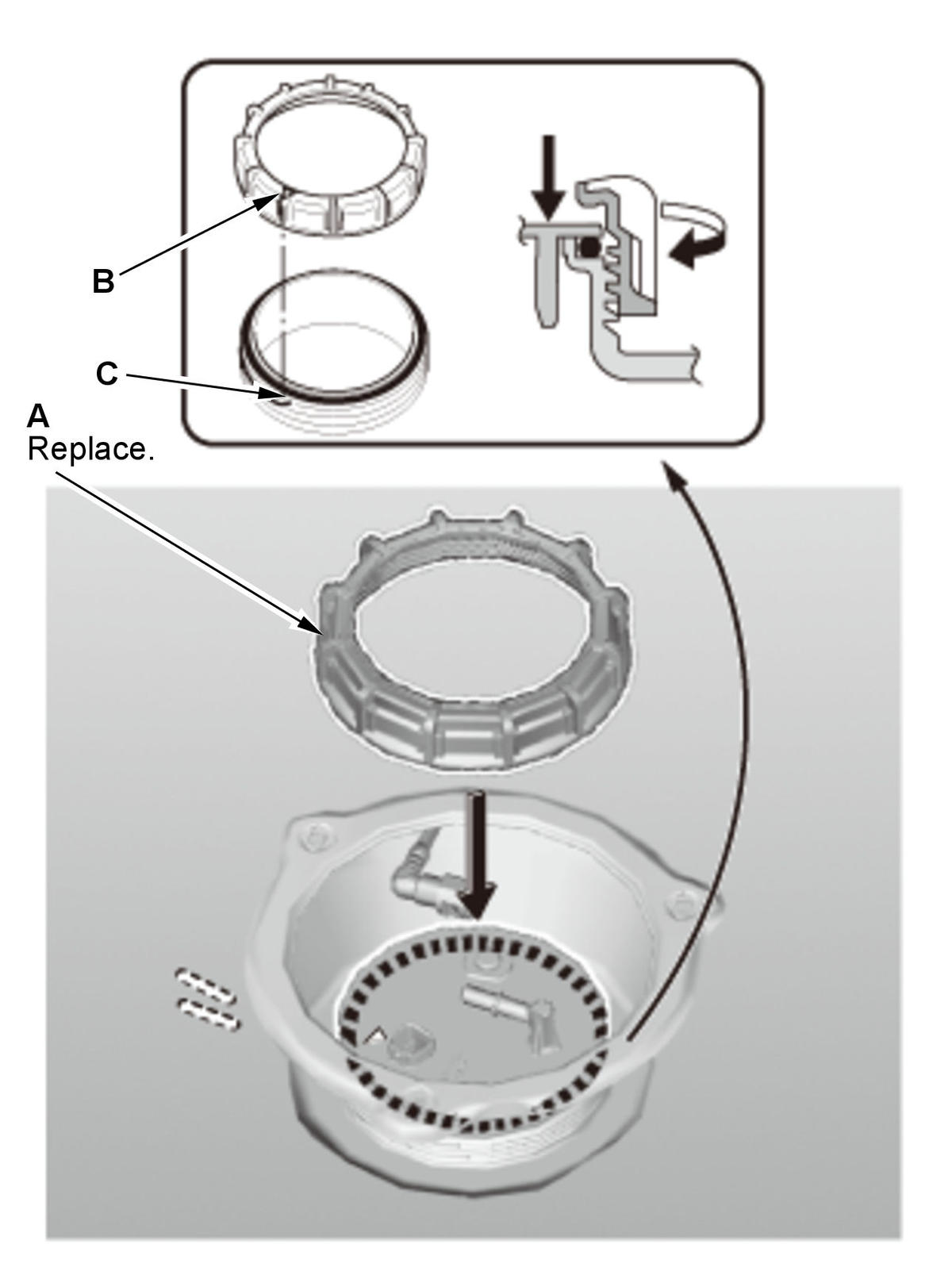

1. Tighten a new locknut (A) by hand holding the fuel tank unit vertically.

NOTE: Before tightening, align the mark (B) on the locknut to the start of the thread (C).

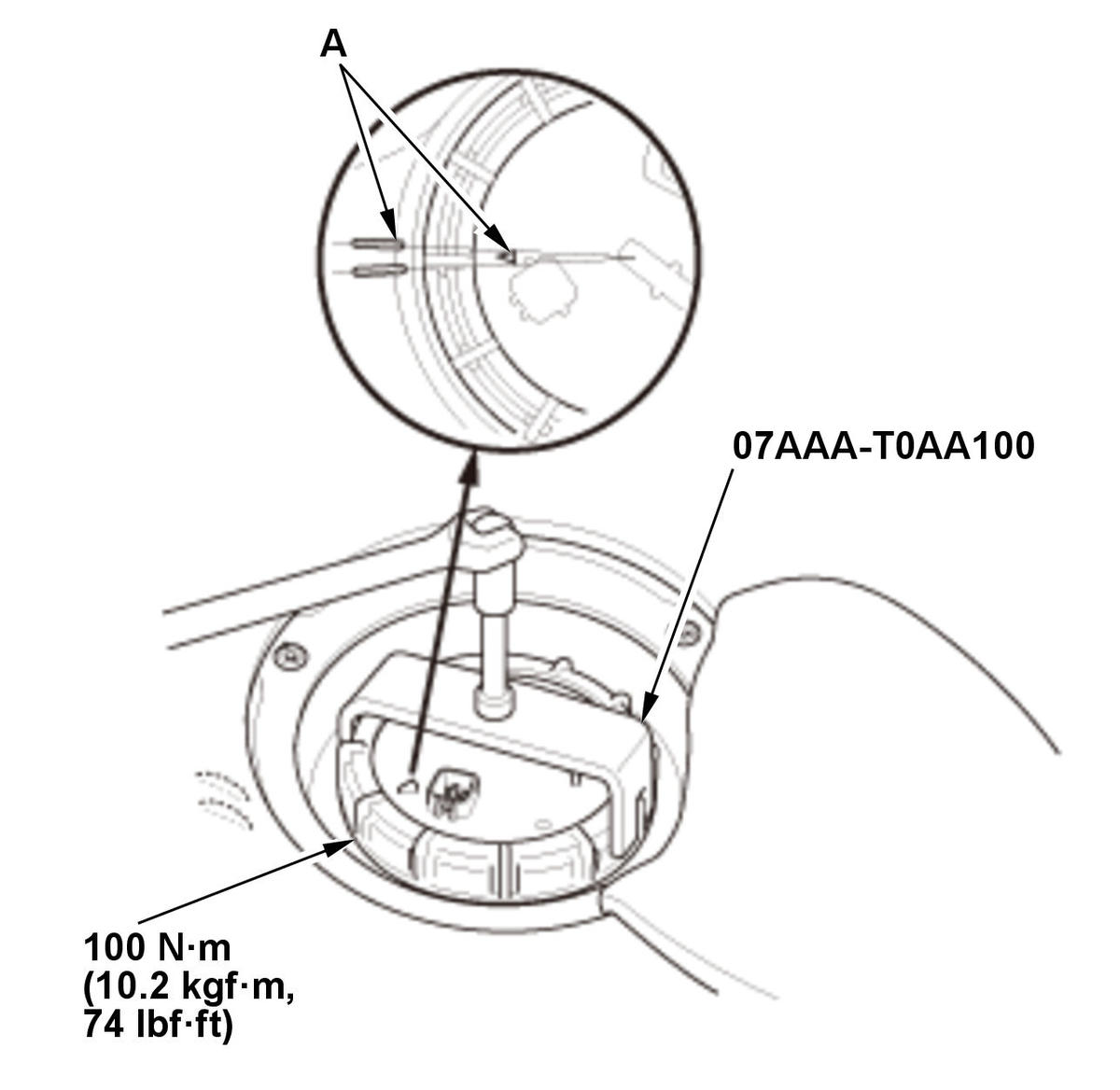

Fig 1: Fuel Tank Unit locknut With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

2. Using the fuel nut wrench, tighten the locknut to the specified torque.

NOTE:

After tightening, make sure the marks (A) are still aligned.
After installation, check the O-ring, visually or by hand, to make sure it is not pinched.

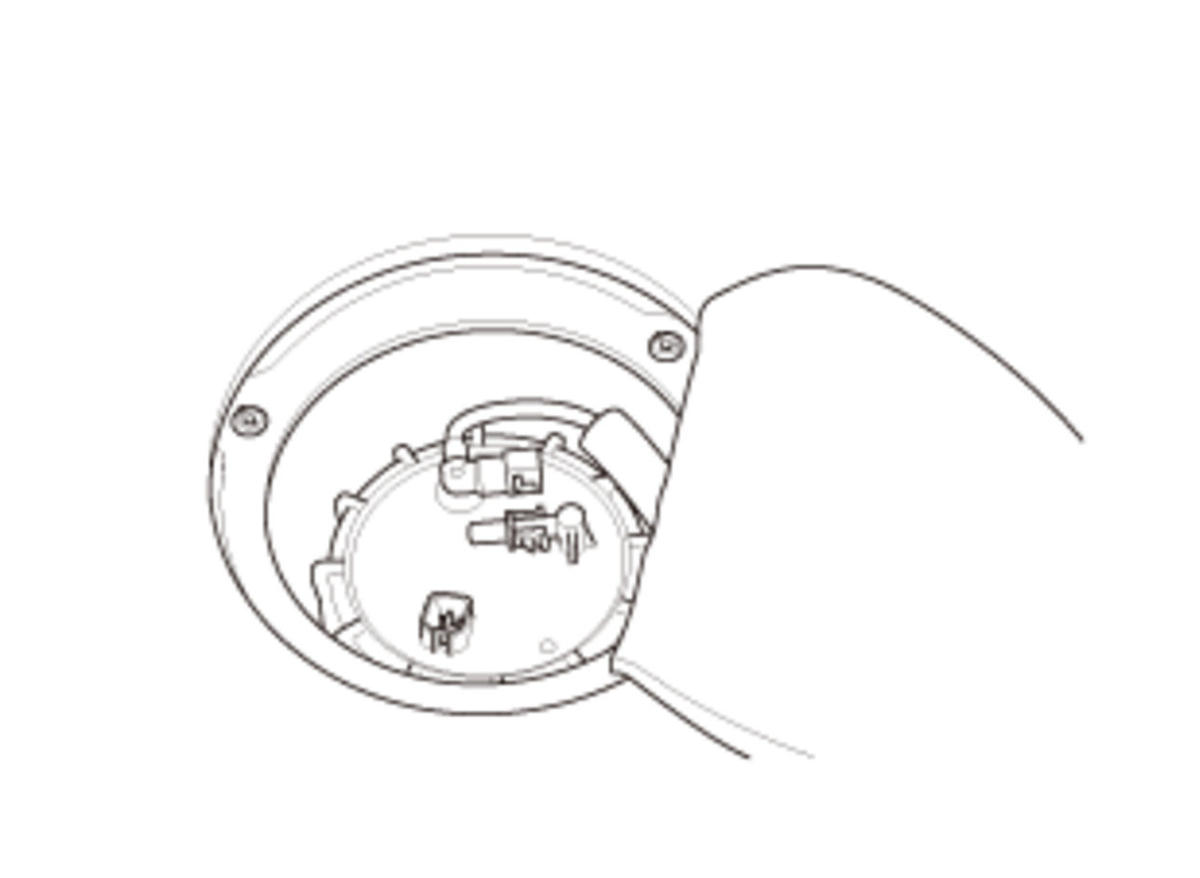

Fuel Line Quick-Connect Fitting - Connect

Courtesy of HONDA, U.S.A., INC.

Fuel Leak - Check

Courtesy of HONDA, U.S.A., INC.

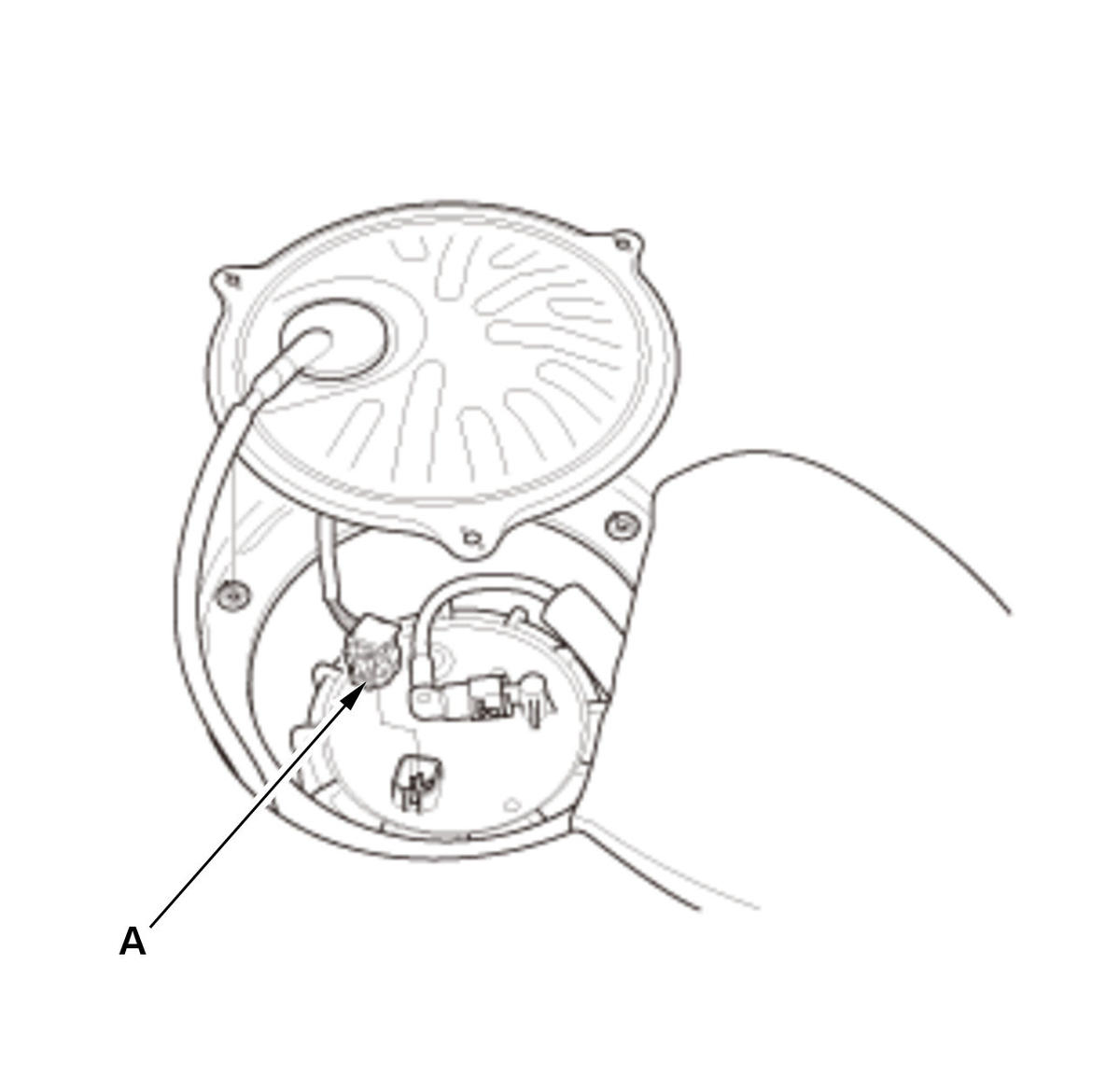

1. Connect the fuel tank unit connector (A).

2. Turn the vehicle to the ON mode, but do not start the engine. After the fuel pump runs for about 2 seconds, the fuel line will be pressurized. Repeat this two or three times, then check for fuel leakage.

Access Panel - Install

Courtesy of HONDA, U.S.A., INC.

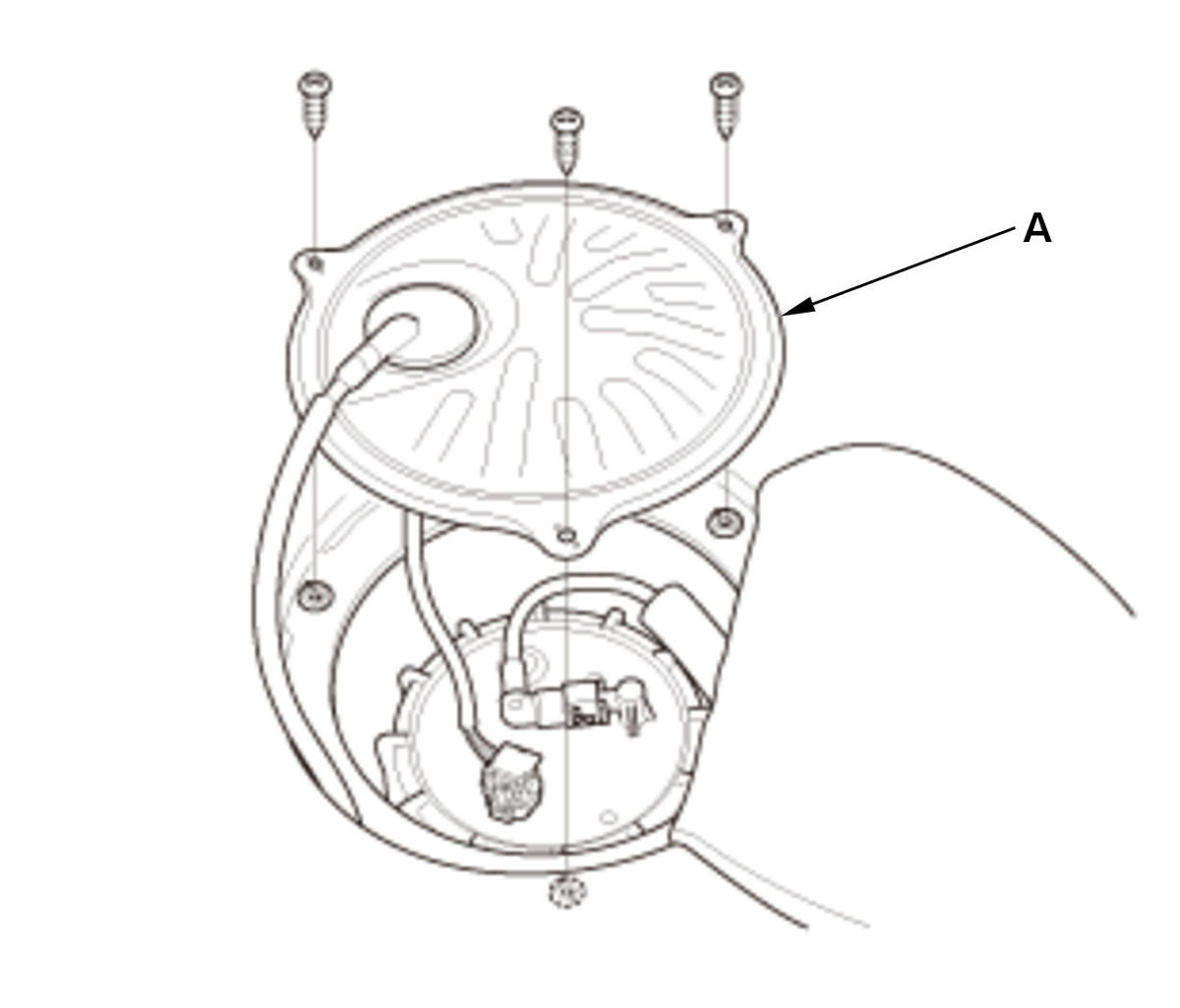

1. Install the access panel (A) to the floor.

Second Row Seat (Left Side) - Install - Refer to:
Second Row Seat Removal and Installation (Bench) or

Second Row Seat Removal and Installation (Captain, .
