Disassembly and Reassembly

NOTE:

• Where icon is shown, click for further information.
• The fuel filter should be replaced whenever the fuel pressure drops below the specified value, after making sure that the fuel pump and the fuel pressure regulator are OK.

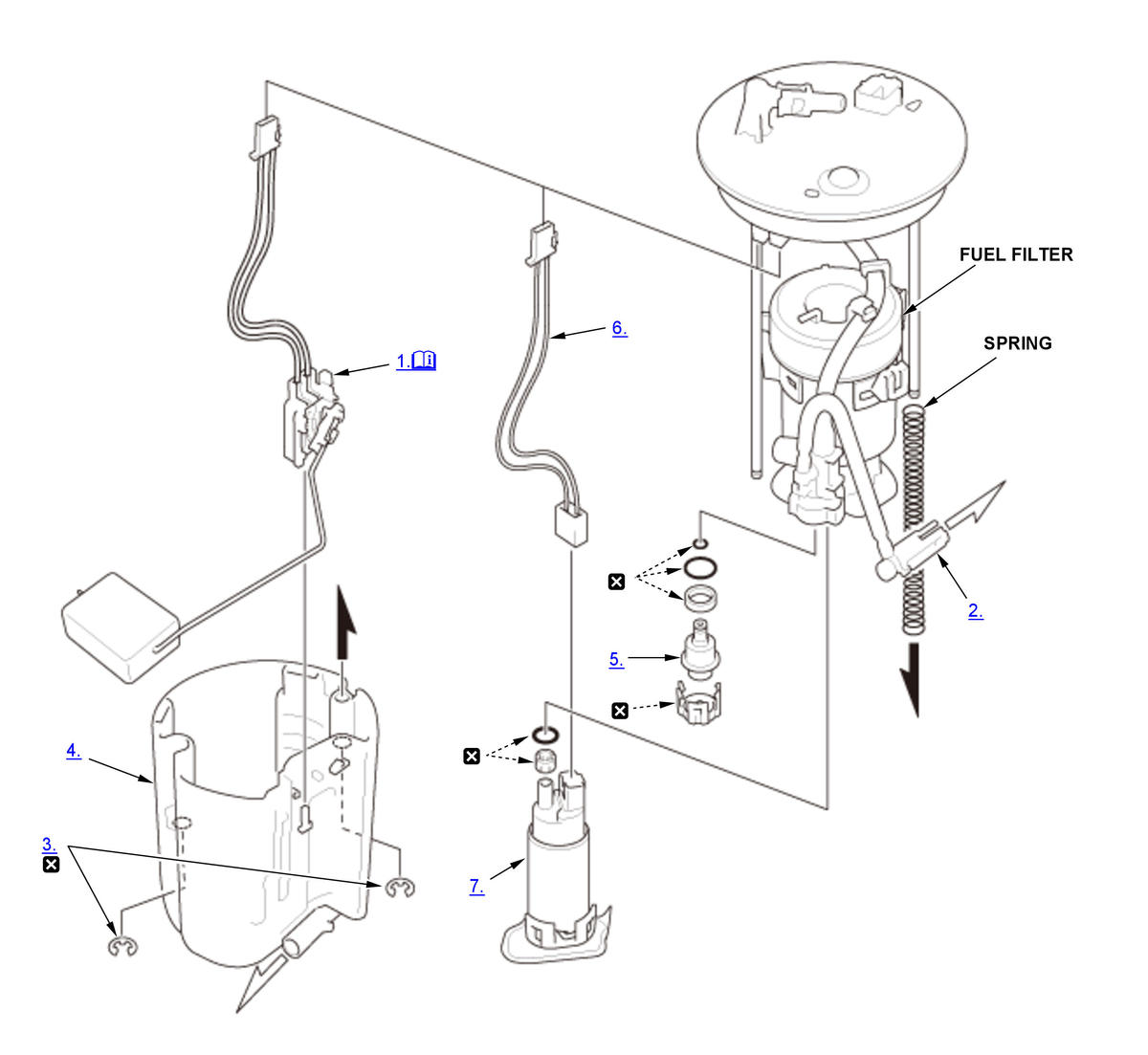

Fig 1: Exploded View Of Fuel Pump Assembly

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (Kgf-m, lbf/ft)
	Replace

1. Fuel Gauge Sending Unit - Remove

   NOTE:  Be careful not to bend or twist the fuel level sensor arm excessively.

2. Fuel Filter Hose - Disconnect
3. E-Ring - Remove
4. Reservoir - Remove
5. Fuel Pressure Regulator - Remove
6. Fuel Pump Harness - Remove
7. Fuel Pump - Remove
8. All Removed Parts - Install

   1. Install the parts in the reverse order of removal. NOTE: Coat the O-rings with clean engine oil; do not use any other oil or fluid. Do not pinch the O-rings during installation. When installing the fuel level sensor unit, make sure the connection is secure and the connector is firmly locked into place. Be careful not to bend or twist it excessively. When connecting the wire harness, make sure the connection is secure and the connectors are firmly locked into place. Use all the new parts supplied in the replacement kit.
