Windshield side trim: Installation

  1. Retainer - install

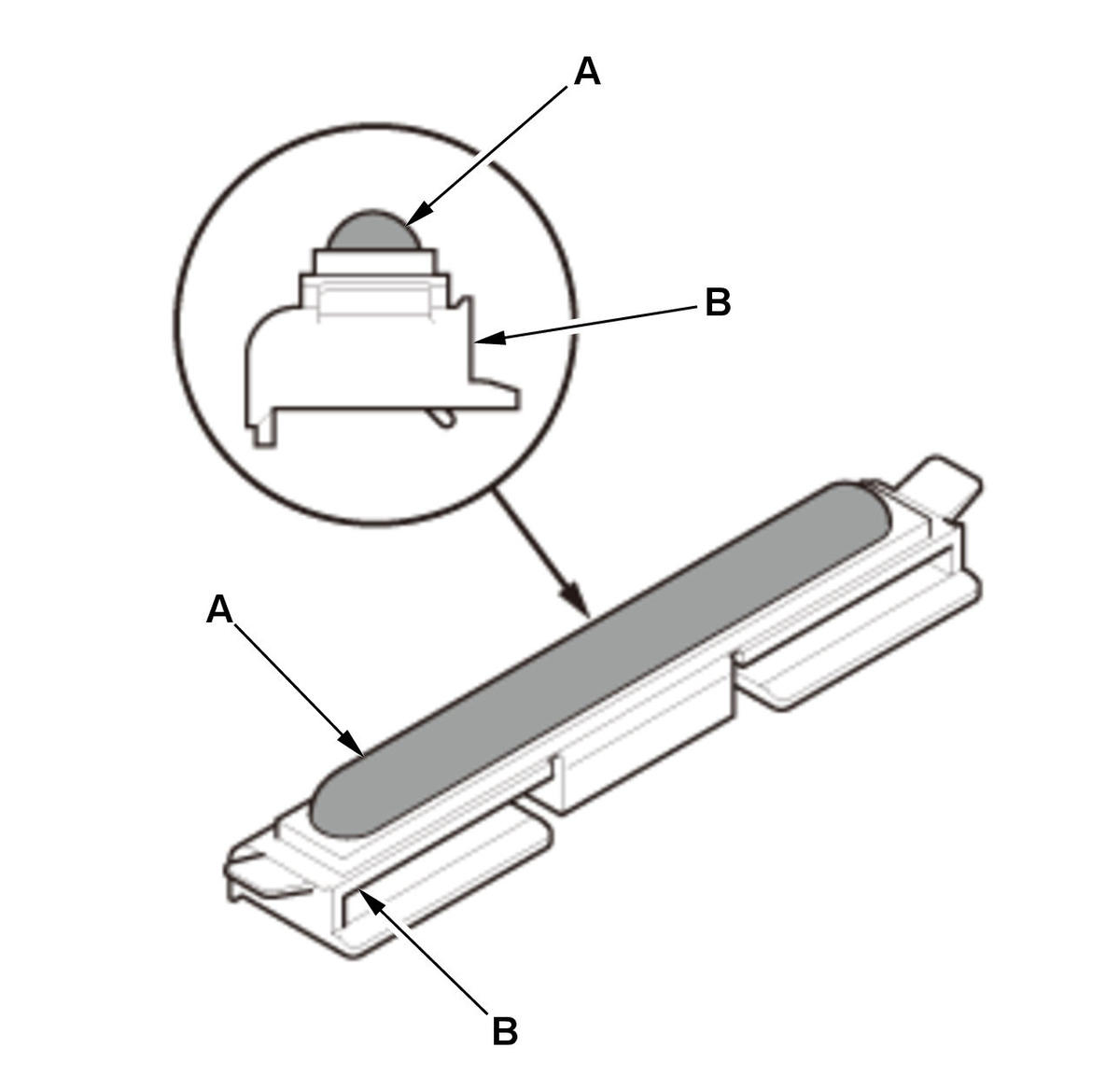

    GHH313597Courtesy of HONDA, U.S.A., INC.
    		 1. Clean the body bonding surface with a shop towel dampened with isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the clean surface.

    2. Apply the two-part epoxy adhesive (A) on the clip (B) as shown.

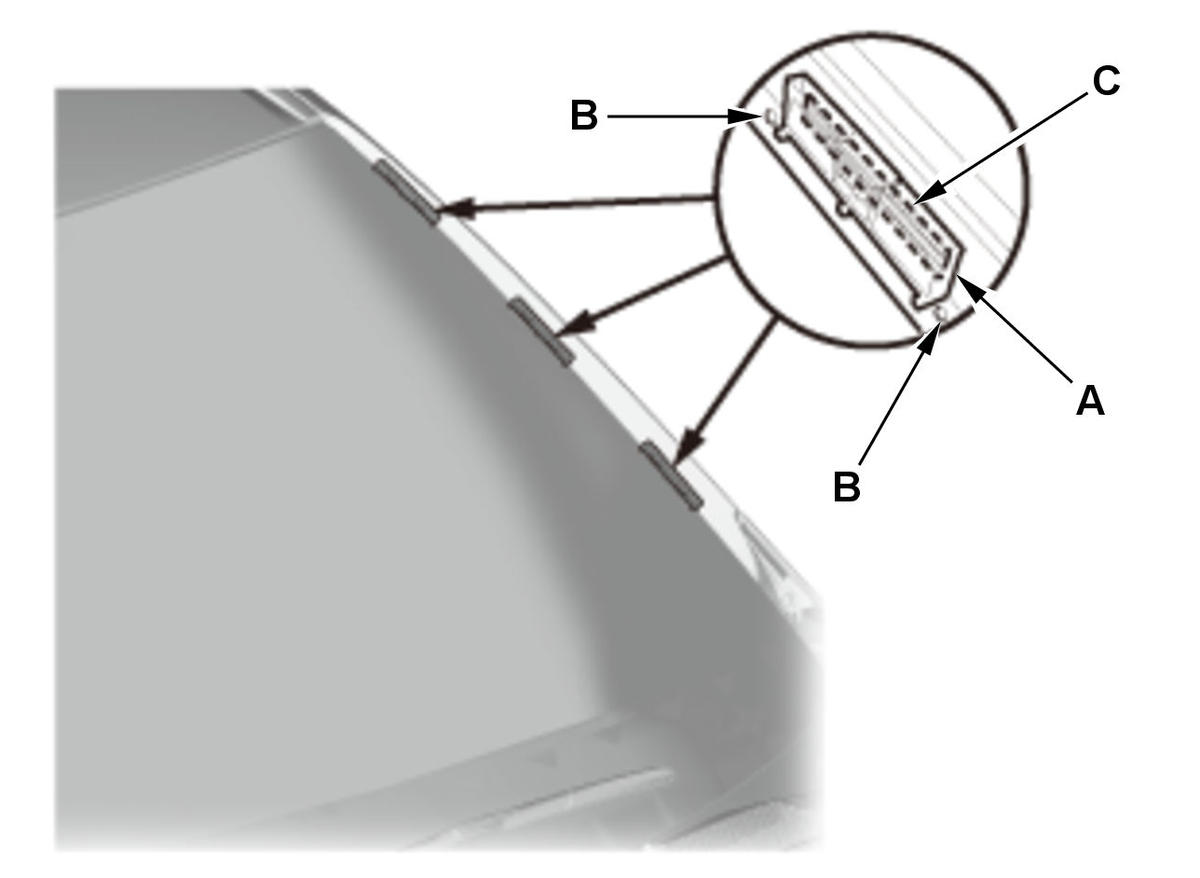

    GHH313598Courtesy of HONDA, U.S.A., INC.
    		 3. Line up the retainers (A) with the alignment marks (B) on the body, and then press the adhesive portion (C) into place securely.

    4. Wait for adhesive to dry.


    NOTE:  Refer to the adhesive manufacturer's instructions in dry time.
  2. Windshield side trim - install

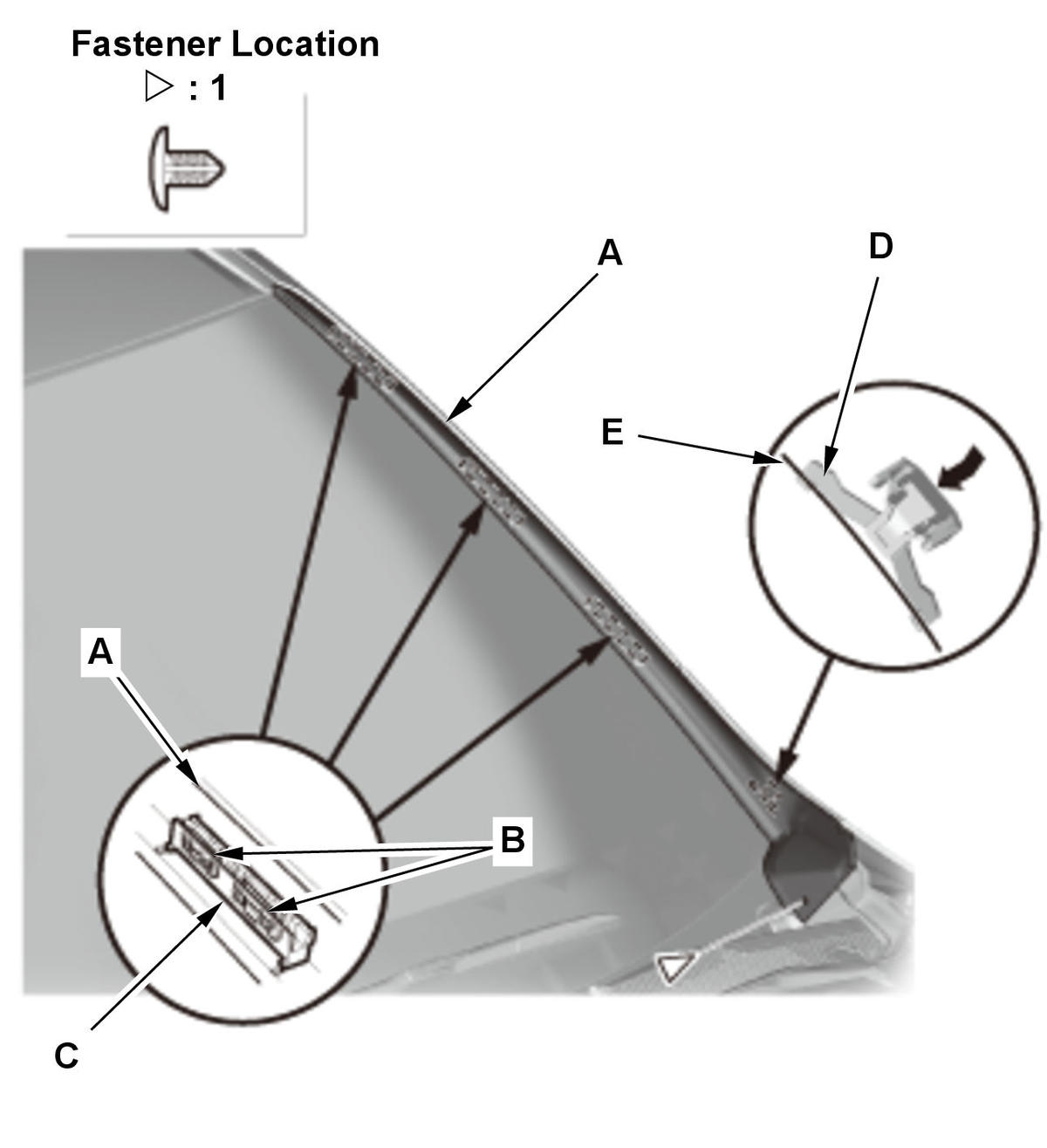

    GHH313599Courtesy of HONDA, U.S.A., INC.
    		 1. Install the windshield side trim (A).

    NOTE:

    • Install the hooks (B) of the windshield side trim to the retainers (C).
    • Install the clip arm (D) of the trim in under of the windshield (E).

    2. Install the clip.
